TECON Cimbing Formwork CB180 / CB240
TECON Climbing Formwork CB 180 and CB 240 is a crane-assisted jumping formwork system for vertical core walls and shear walls. Using heavy-duty triangular brackets anchored to cured concrete, the system supports high construction loads during double-sided wall forming. It relies entirely on crane lifting for quick, unit-by-unit repositioning in high-rise projects.
Features & Benefits
Climbing Formwork Features and Benefits
Single-Lift Climbing Efficiency: The complete unit can be repositioned to the next pouring level with a single crane lift, significantly reducing handling time and improving overall productivity.

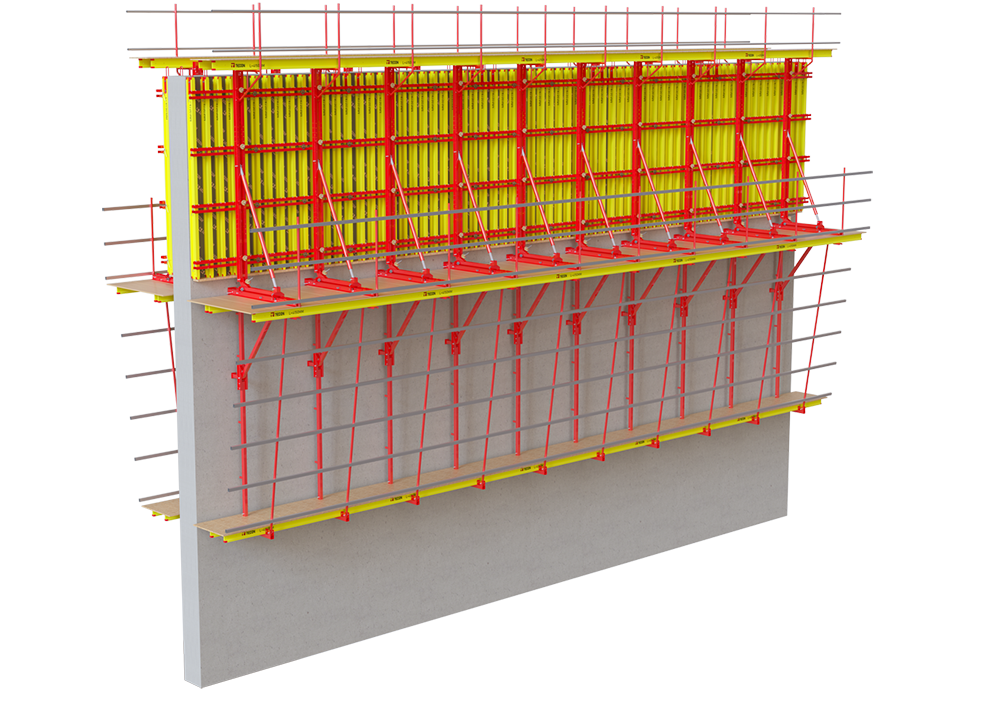

Zero Lateral Frame Load: Concrete pressure during pouring is entirely absorbed by through-wall tie rods, ensuring the frame carries no lateral concrete load.
Standard 3-Tier Platforms: Features exactly three dedicated levels, including a top platform for pouring, a main platform for formwork, and a suspended platform for anchor recovery.

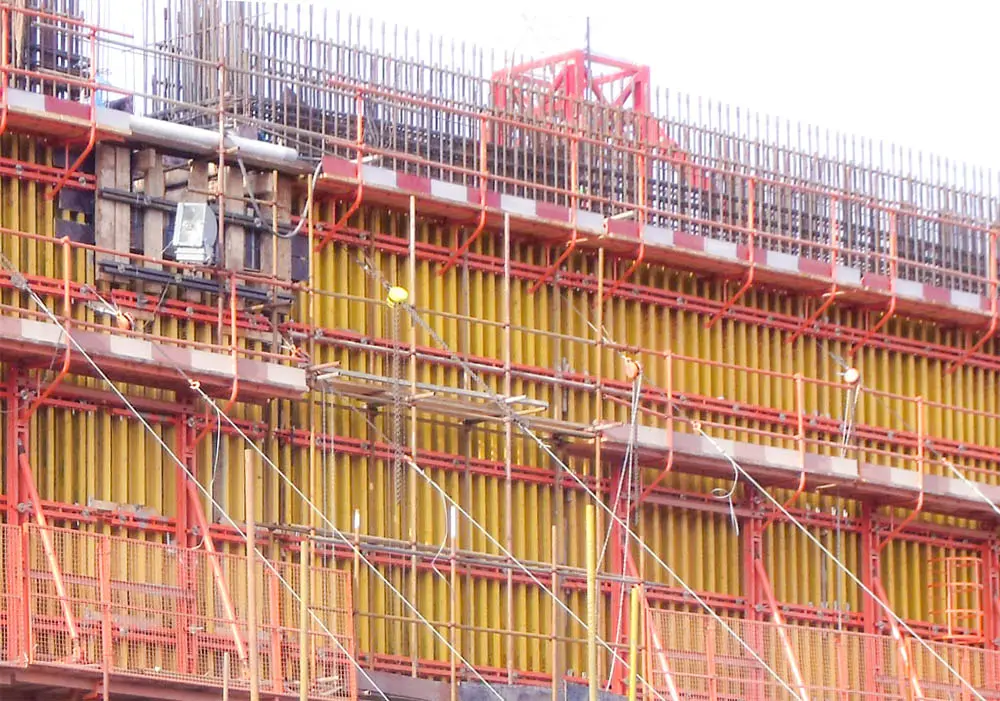

Secure Anchor Bearing: The heavy-duty bracket anchors into concrete and braces against the lower wall, safely transferring upper construction loads to the building.

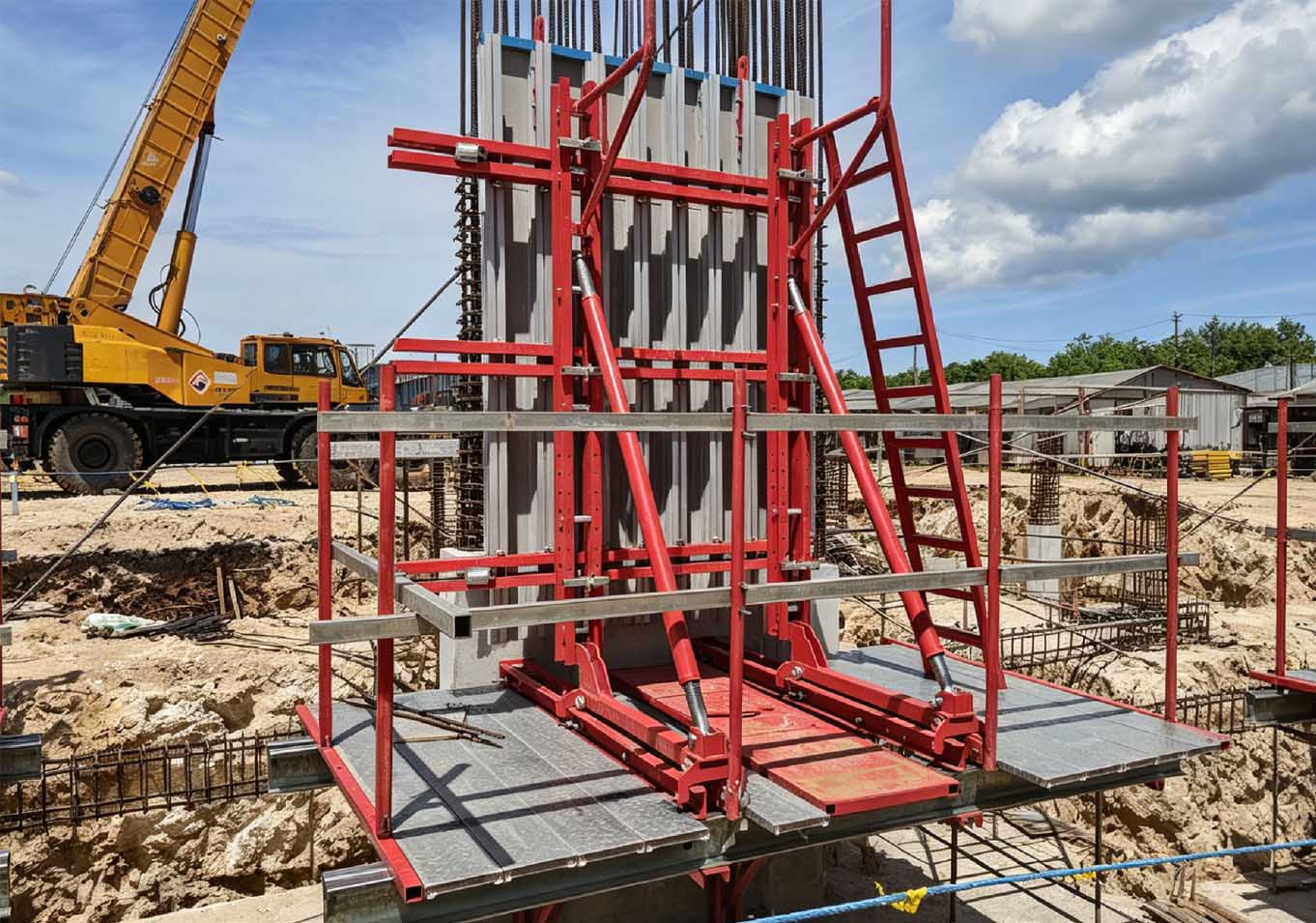

System Compatibility: Fully compatible with TECON wall formwork systems, including: TECON Base 20 Wall Formwork, other TECON wall solutions
Climbing Formwork Application
Suitable for high-rise core walls, bridge piers, LNG storage tanks, and power plant structures requiring efficient and safe vertical construction.
Technical Specifications
Climbing Formwork Technical Specifications
| System Type | Climbing Wall Formwork |
| Material | H20 timber beam (aluminum beam), climbing bracket and anchoring system |
| Standard Bracket Height | 11 m |
| Working Platform Number | 3 floors |
| Permissible Live Load | Main platform: 3 kN/m2 Top platform: 0.75kN/m2 ; 1.5 kN/m2 (for truss type) Suspended platform: 0.75 kn/m2 |
| Standard Unit Size | 4 m (with 2 pieces of bracket) |
| Platform Width | 1.8/2.4 m |
| Max One-time Casting Height | 4.5/6 m (for truss type) |
| Formwork Shifting Distance | 75 cm (with H20 Timber Beam Formwork System) |
| Permissible Climbing Pitch Angle | |
| Installation Time | 4-6 units/day (a group of 6 people, without formwork panel) |
| Formlining | 18/21 mm birch plywood, hardwood, and polar plywood; Hollow Plastic Board； TECON Plas-tech |
| Connection Technology | Single-part anchoring |
| Anchorage Pull-out Capacity | 50 kN |
| Assembly Method | Ground pre-assembly |
| Handling Method | Tower Crane |
