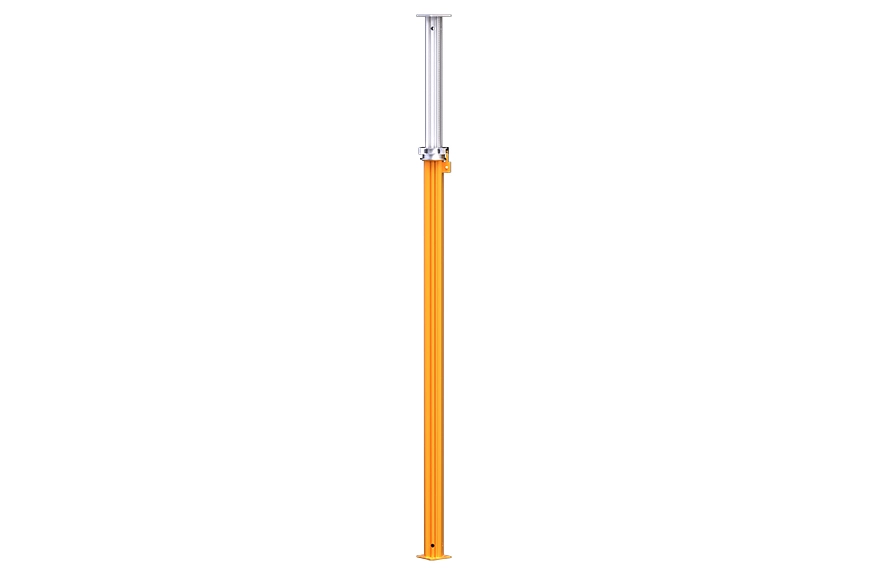

TECON Multi-purpose Aluminium Prop TMP series is a high bearing capacity shoring prop made from aluminium alloy with five different models ranging from 800mm to 6250mm.

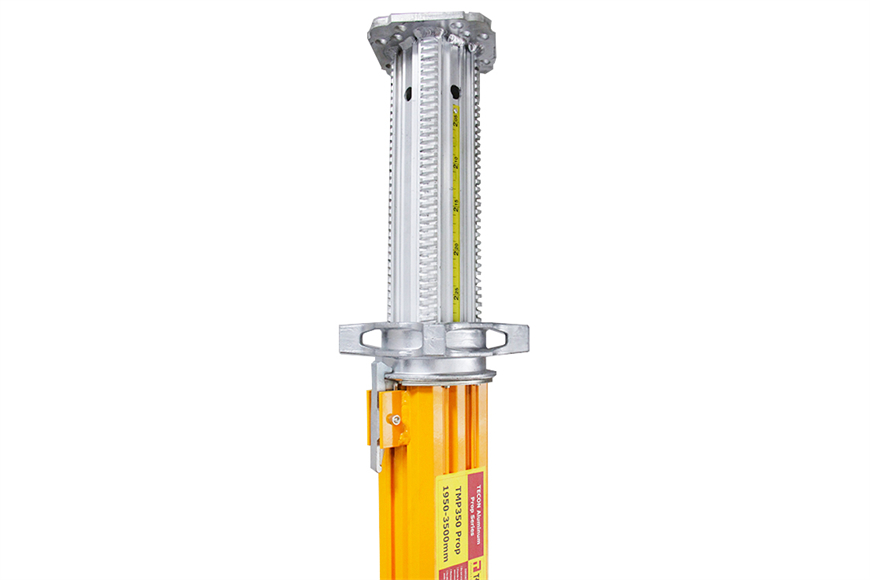

Tecon Tmp Aluminium Prop Ranges from 800mm to 6250mm. It Can Also Be Extended to a Bigger Height by Connecting Two or Three Props Via Special Prop Connectors
Tecon Tmp Aluminium Prop Ranges from 800mm to 6250mm. It Can Also Be Extended to a Bigger Height by Connecting Two or Three Props Via Special Prop Connectors
  • Tecon Tmp Aluminium Prop Ranges from 800mm to 6250mm. It Can Also Be Extended to a Bigger Height by Connecting Two or Three Props Via Special Prop Connectors

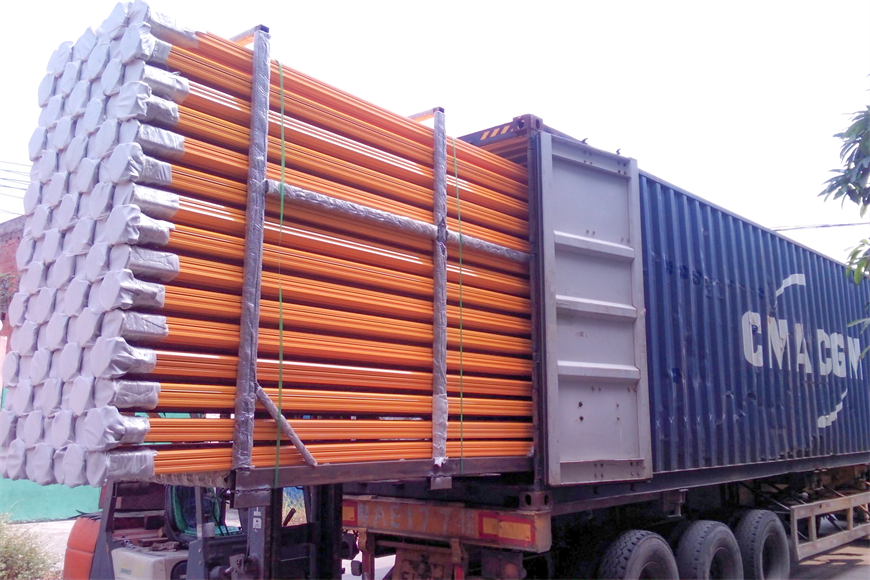

  • Container Loading of Aluminium Prop

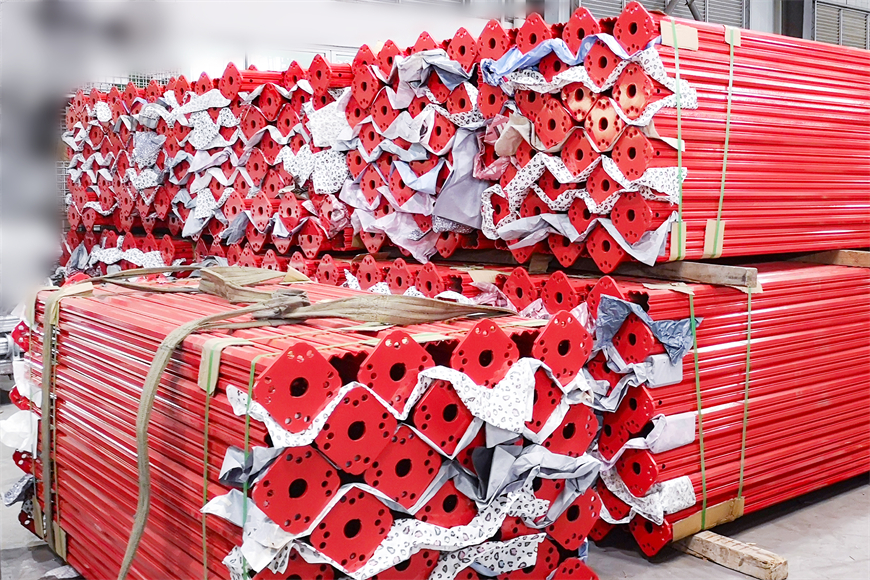

  • Outer Tubes Back to the Factory for Further Assembly After the Powder Coating Process
  • Assembly with Truss Frame is Bracing for Much Bigger Bearing Capacity and Stability

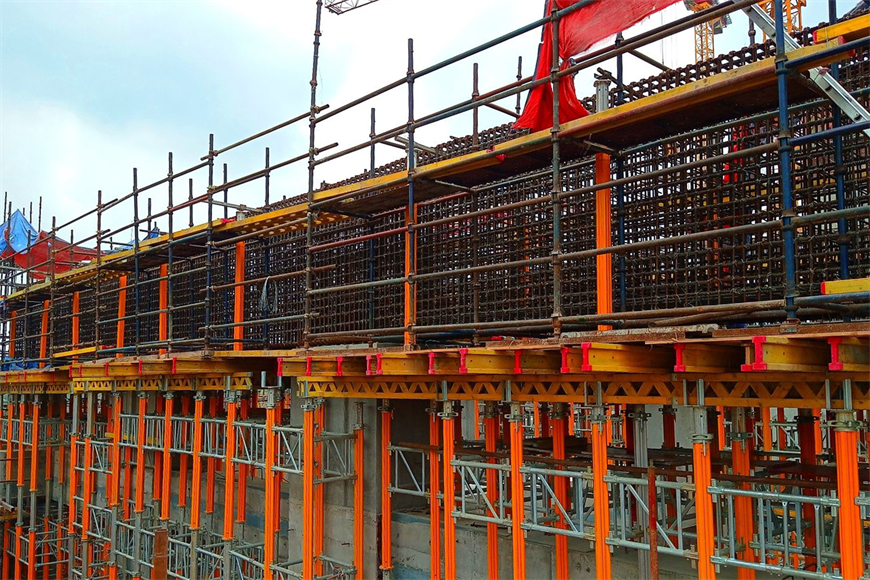

  • Site Application for Aluminium Prop
  • Site Application for Aluminium Prop
GET A QUOTE

Feature of Aluminium Prop

  • Self-cleaning threading.

  • Cast steel start collar screw.

  • Built-in safe stopping device.

  • Built-in height indication tape.

  • Powder-coated outer tube and customized colour.

  • Certification: SGS in compliance with Australian Standard.


Specification of Aluminium Prop

It is made from aluminium alloy T6061-T6.

Totally five models, TMP120, TMP250, TMP350, TMP480 & TMP625.

Prop ModelTMP120TMP250TMP350TMP480TMP625
Min.Length (mm)8001450198026004300
Max.Length (mm)12002500350048006250
A (mm)7151365186525154211
B (mm)4211071157122211975
Weight (Kg)10.415.518.723.830.2
Min~ Max Load (kN)70~9060~7042~8825~8520-56

Other related accessories are also available such as truss frame bracing TMRK, and prop connector etc.


Application of Aluminium Prop

For high shoring or bigger load bearing capacity projects.

Related Product of Aluminium Prop

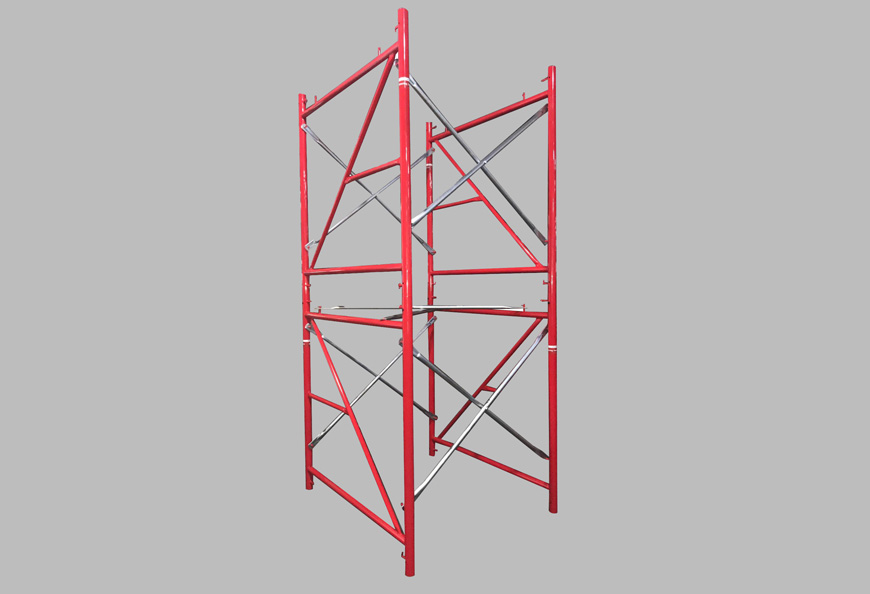

Shoring Tower TST60

Heavy Duty Steel Prop

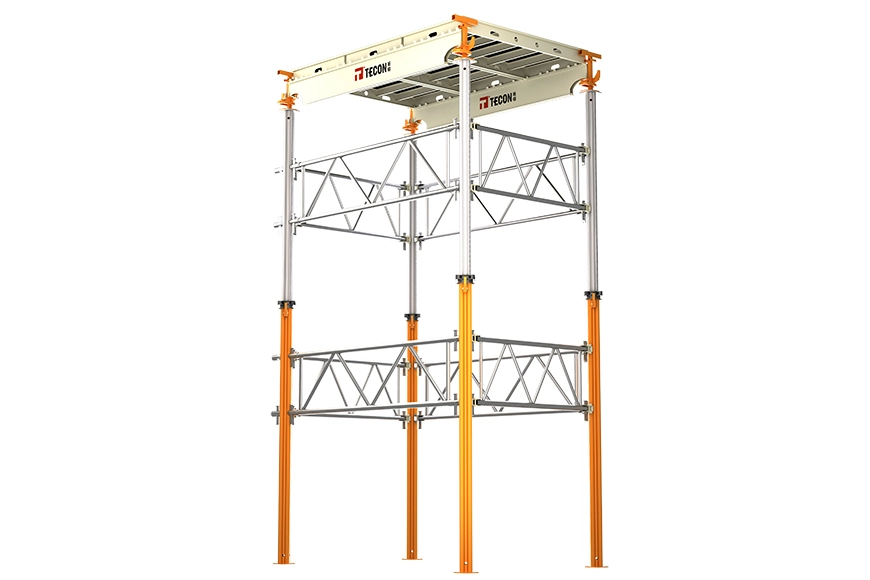

Aludeck Slab Formwork
