TECON Dam formwork DB180/240 has high dependability and loading capacity for mass concrete structures without tie rods to pull through. It is widely used for forming one-sided construction projects, such as dams, run-off river power stations or navigation locks.
Shorten crane time due to one unit design of dam formwork.
It can produce both single side wall and double side wall inclined.
High load capacity without tie rod to pull through concrete structure.
It can be compatible with BASE 20 formwork, HETO Frame formwork and others.
A reliable anchorage system and muscular bracket strength ensure the highest on-site safety.
No tie rods are needed to pull through the wall.

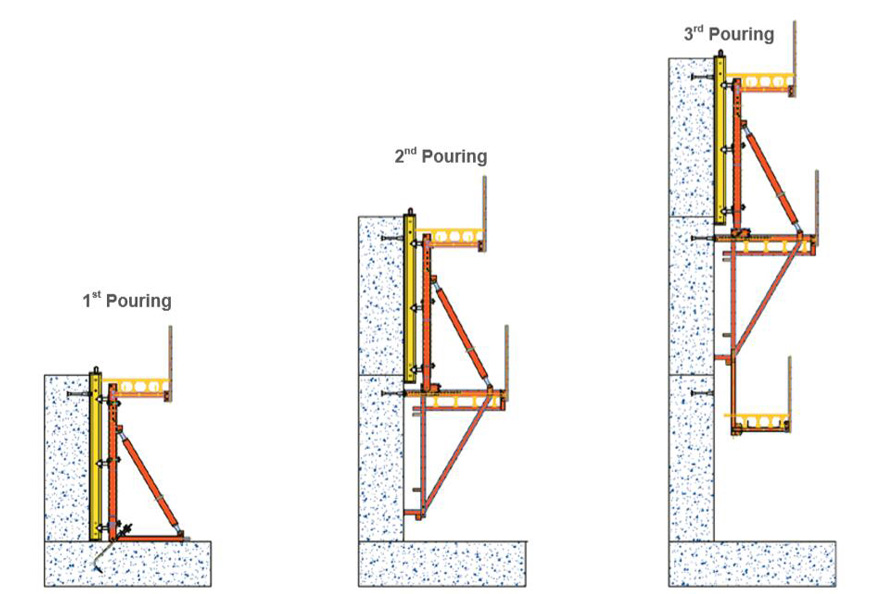

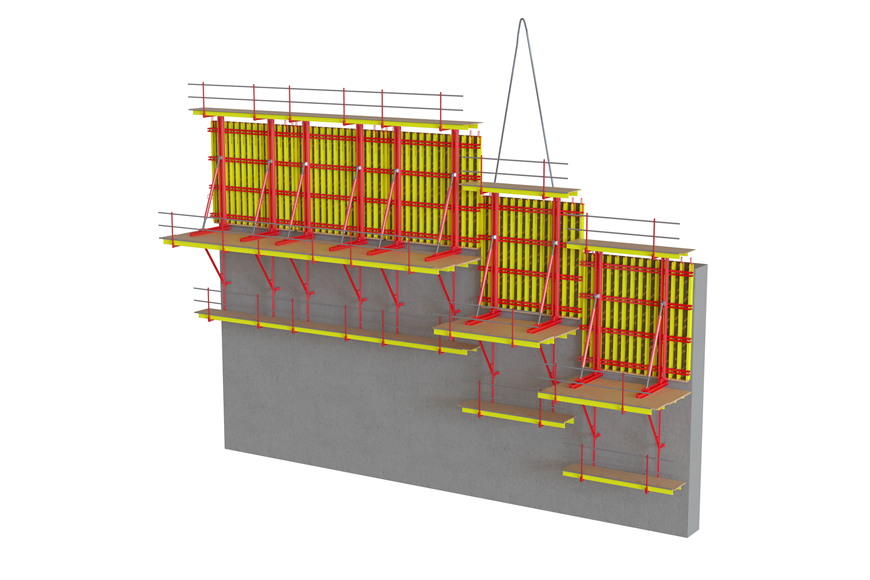

Two dam formwork climbing brackets and the TECON wall formwork section can be assembled into one complete unit for a crane lift.
| Items | Technical details |
| Available incline degree | ±45° |
| Width of the formwork | 2.2m/2.4m |
| Maximum pouring height | 4m |
| Power unit | Tower crane |
| Required crane lifting power | 30kN/unit |
| Distance of retrusion | 45cm |
| Anchor point load capacity | 22kN |

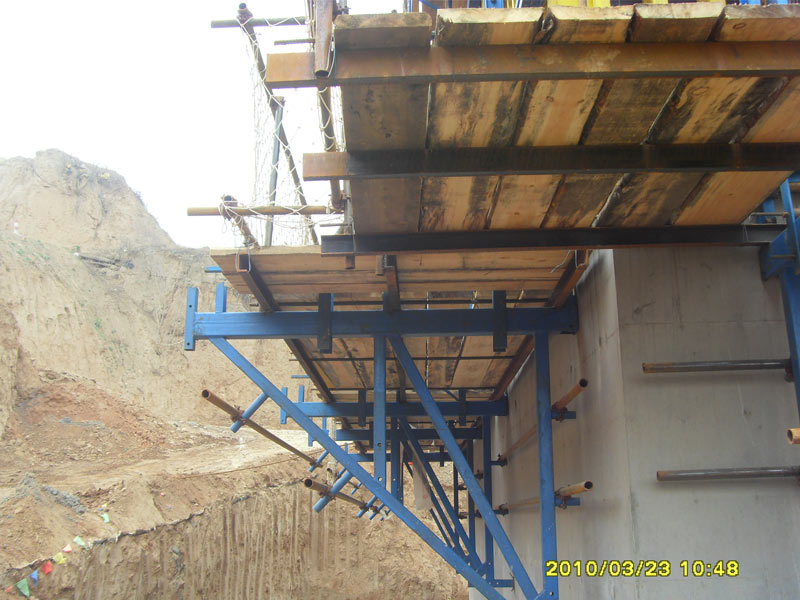

One-sided construction projects such as dams, run-off river power stations and navigation locks.
