Plastic Formwork TP60

SHARE:

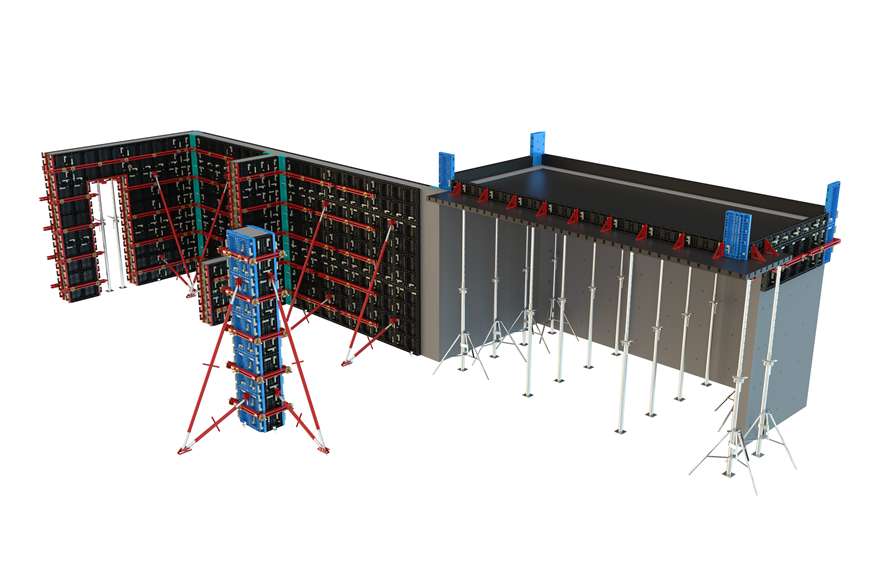

TECON Plastic Formwork TP60 is recognized as the lightest formwork system due to its medium panel design and the application of ABS (Acrylonitrile Butadiene Styrene). It is mainly consisted of ABS plastic panel, erection handle, alignment waler, flex beam and shoring prop. Walls, columns, slabs can be quickly and efficiently formed even by unskilled workers.

Feature of Plastic Formwork TP60

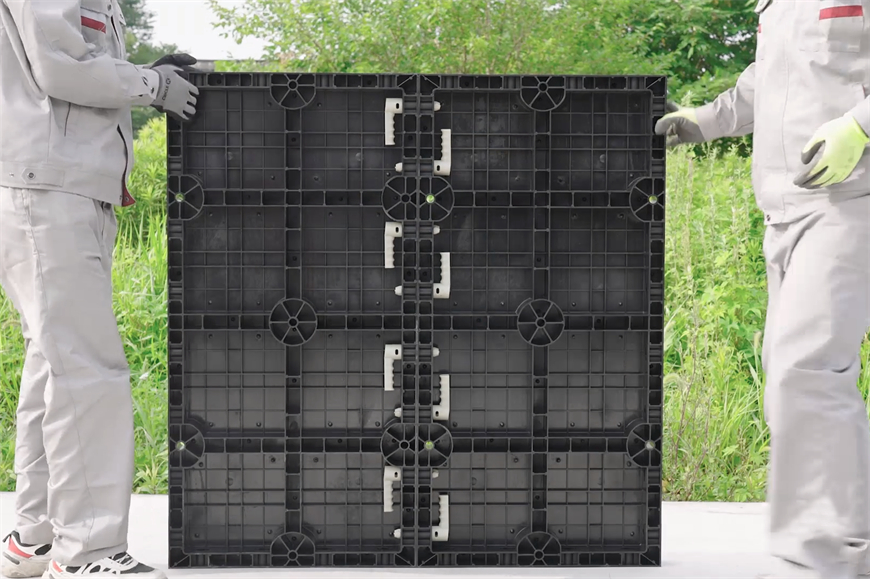

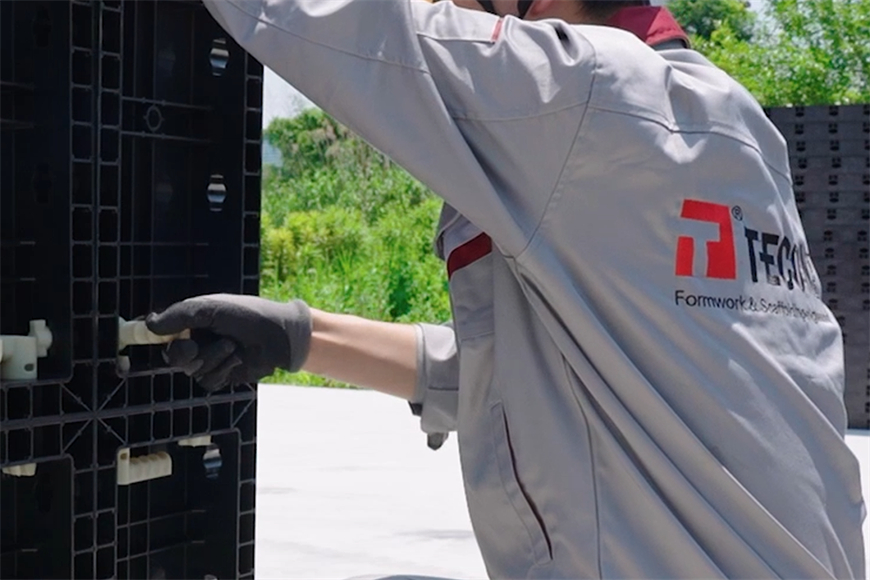

  • This modular plastic formwork system is fast and extremely easy to use, similar to building blocks, and can be assembled using an erection handle without the need for skilled workers.

  • Light weight without crane assistance

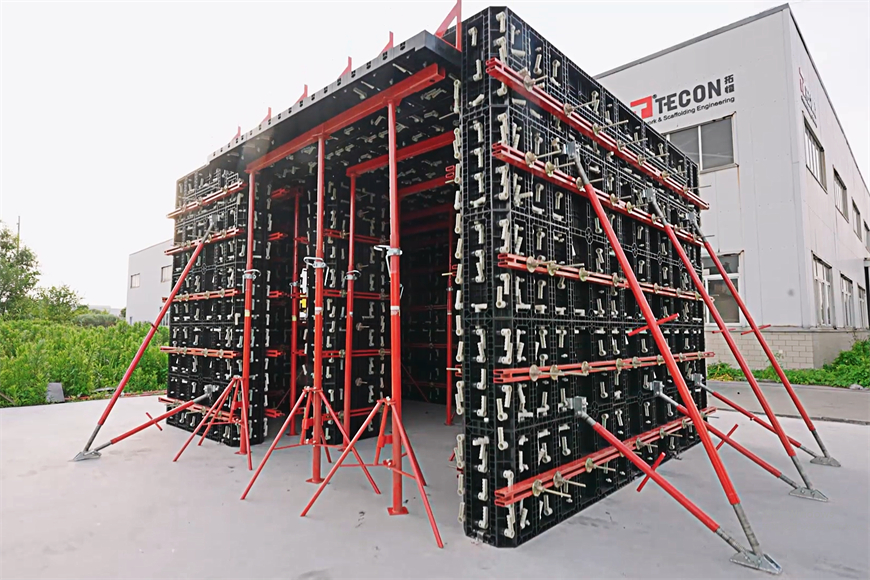

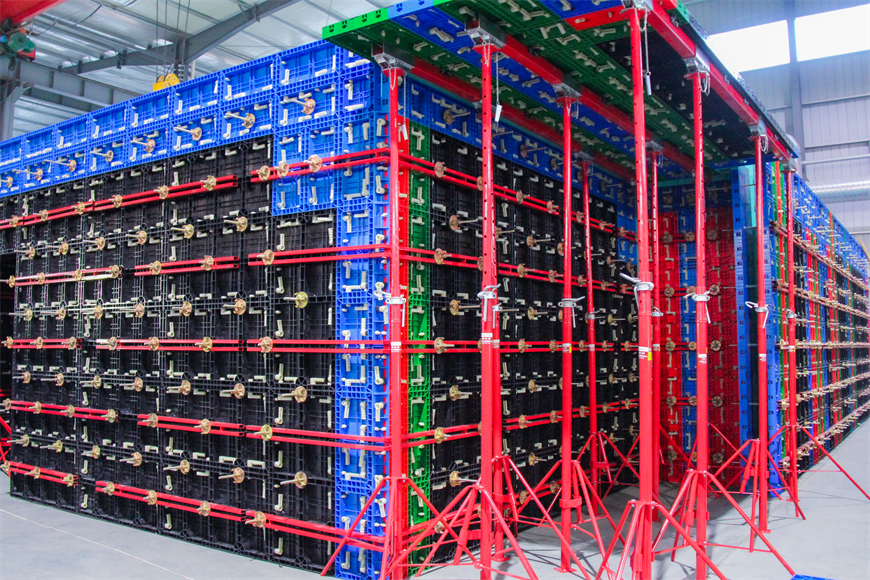

  • Universal application in modular house with one pour for wall and slab together, can also cast wall, column and slab in sequence

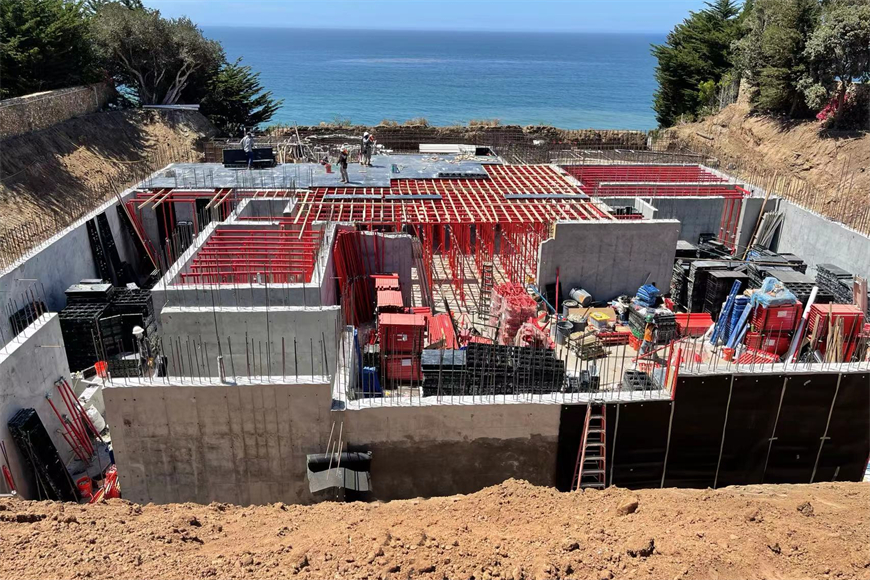

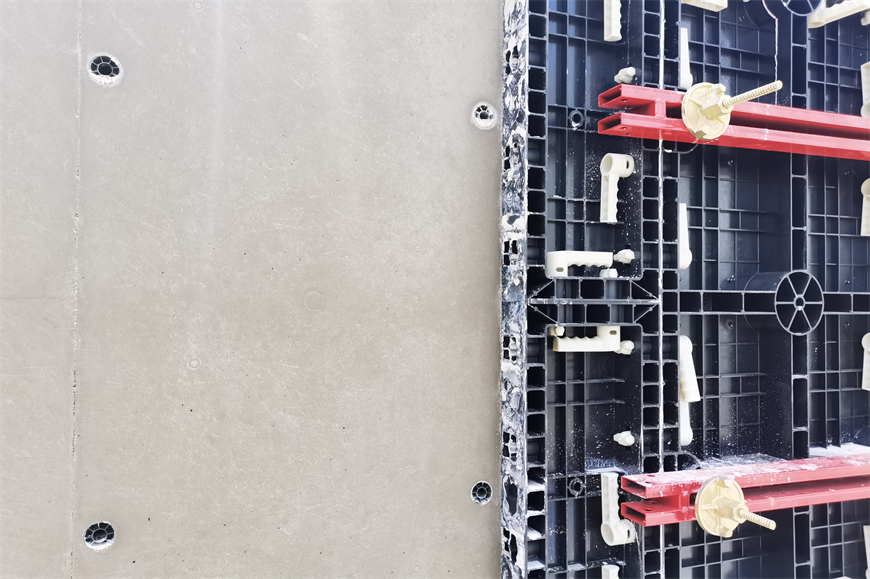

  • Easy cleanning, less or even no plastering after strip

  • Quick delivery due to ready to ship stock



Specification of Plastic Formwork TP60

  • Main material of plastic panel is fresh ABS

  • Max panel size 1200*600mm with only 9.7 kg/pcs, other sizes are also available such as 400/350/300/250*600mm etc.

  • High strength and durable panels can reach up to 100 reuse times

  • Up to 300 mm slab thickness and 3.6 m high wall by one pouring

  • Adapt to various permissible fresh concrete pressure up to 60 kN/sqm for wall and 80 kN/sqm for column

  • The plastic formwork panelscan also be used with foam/light weight concrete



Application of Plastic Formwork TP60

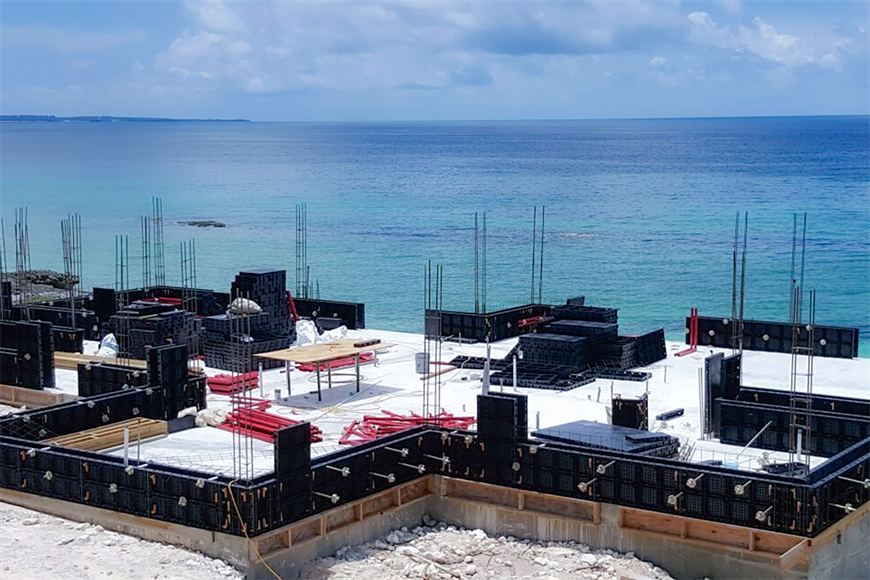

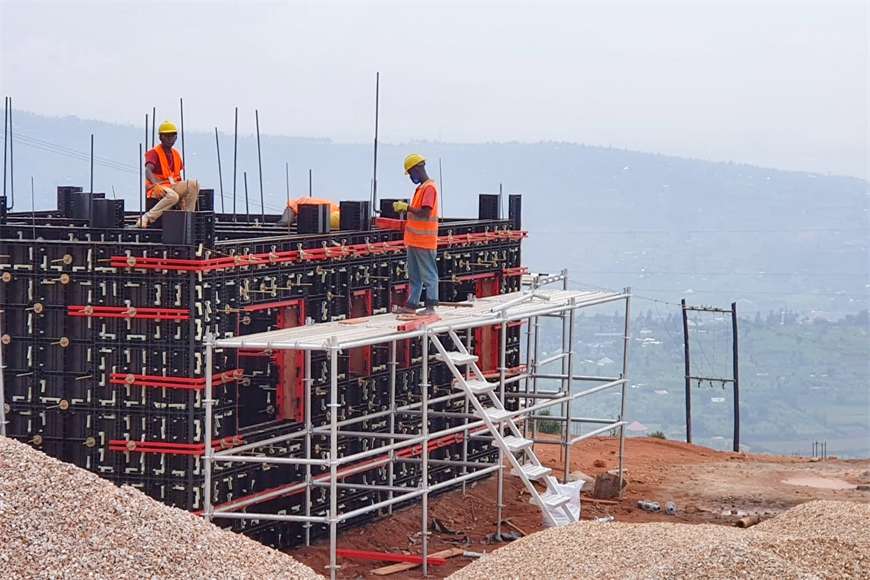

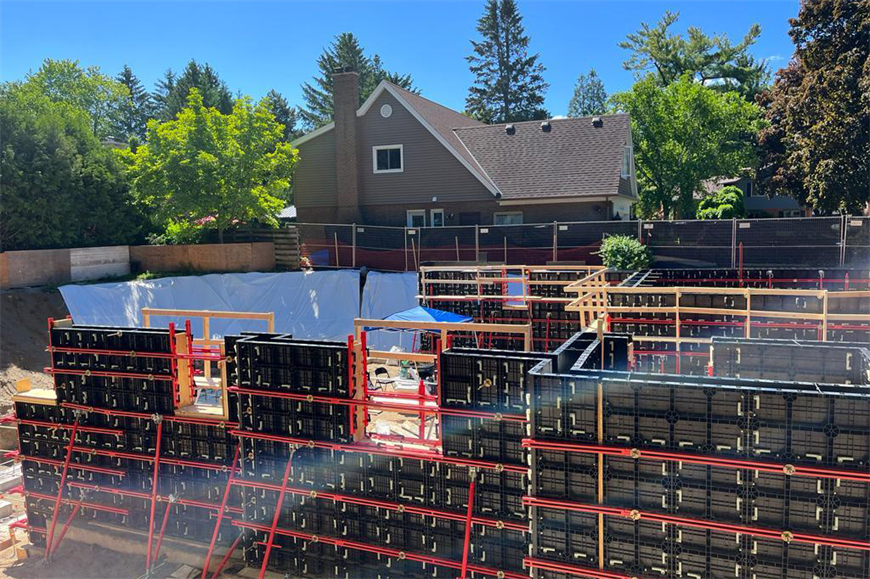

Small to medium size projects like row houses, villas and apartment, ground beam, swimming pool ect. Ideal solution for noice free project, anti-corrosion needed project in seashore area, remote area where heavy machinery cannot arrive.
