Home > Formwork > Aluminium Formwork > TECON Aluminium Formwork

TECON Aluminium Formwork

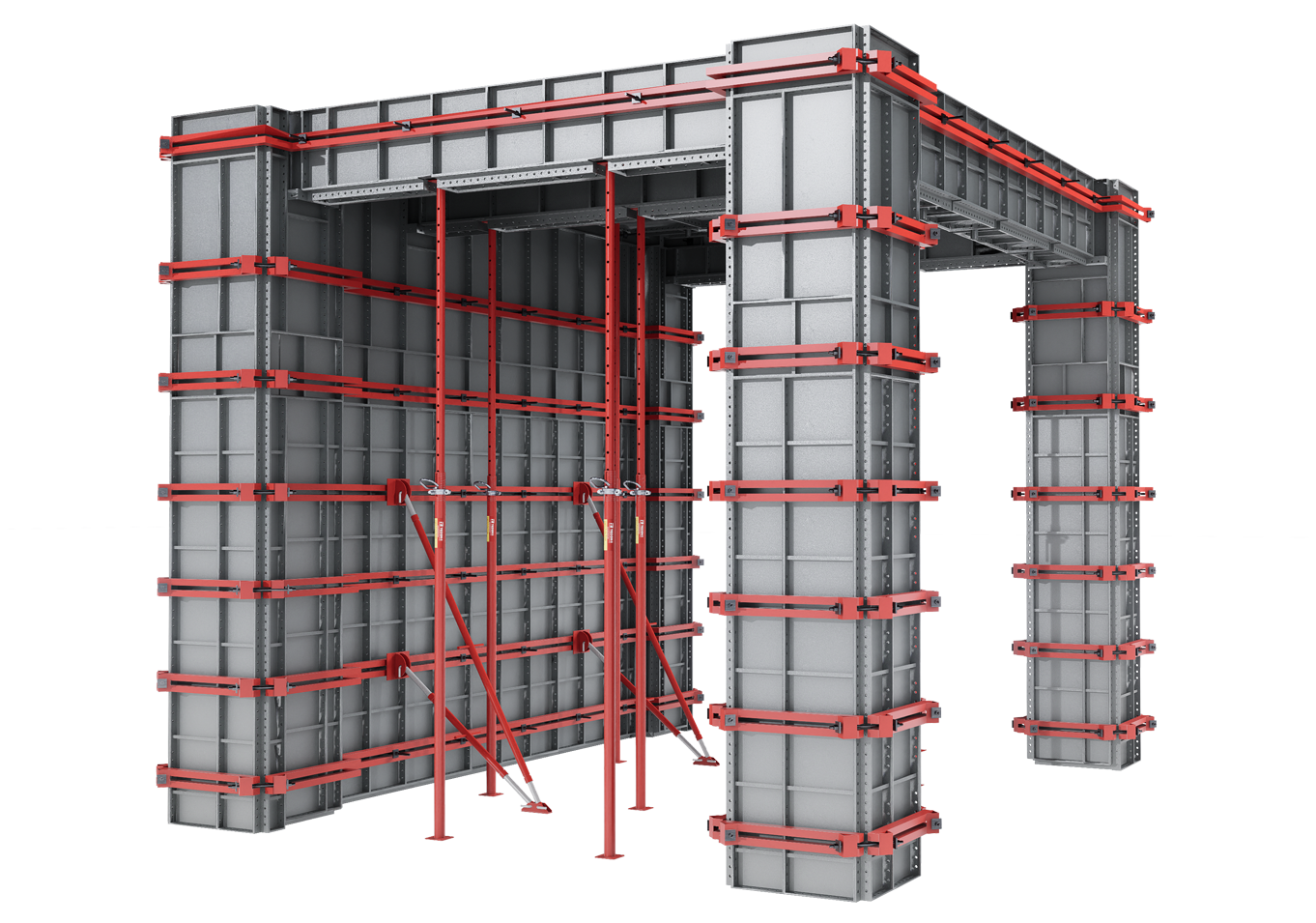

TECON Aluminum Formwork is a modular system made from high-strength aluminum alloy, designed for fast and efficient construction of concrete structures. With its lightweight design and long service life, it is an ideal solution for residential buildings and modular housing projects requiring high productivity and consistent concrete quality.

Request a Quote All Products

Features & Benefits

Product Data Sheet

Assembly Tutorial

Features & Benefits

Aluminum Formwork Features and Benefits

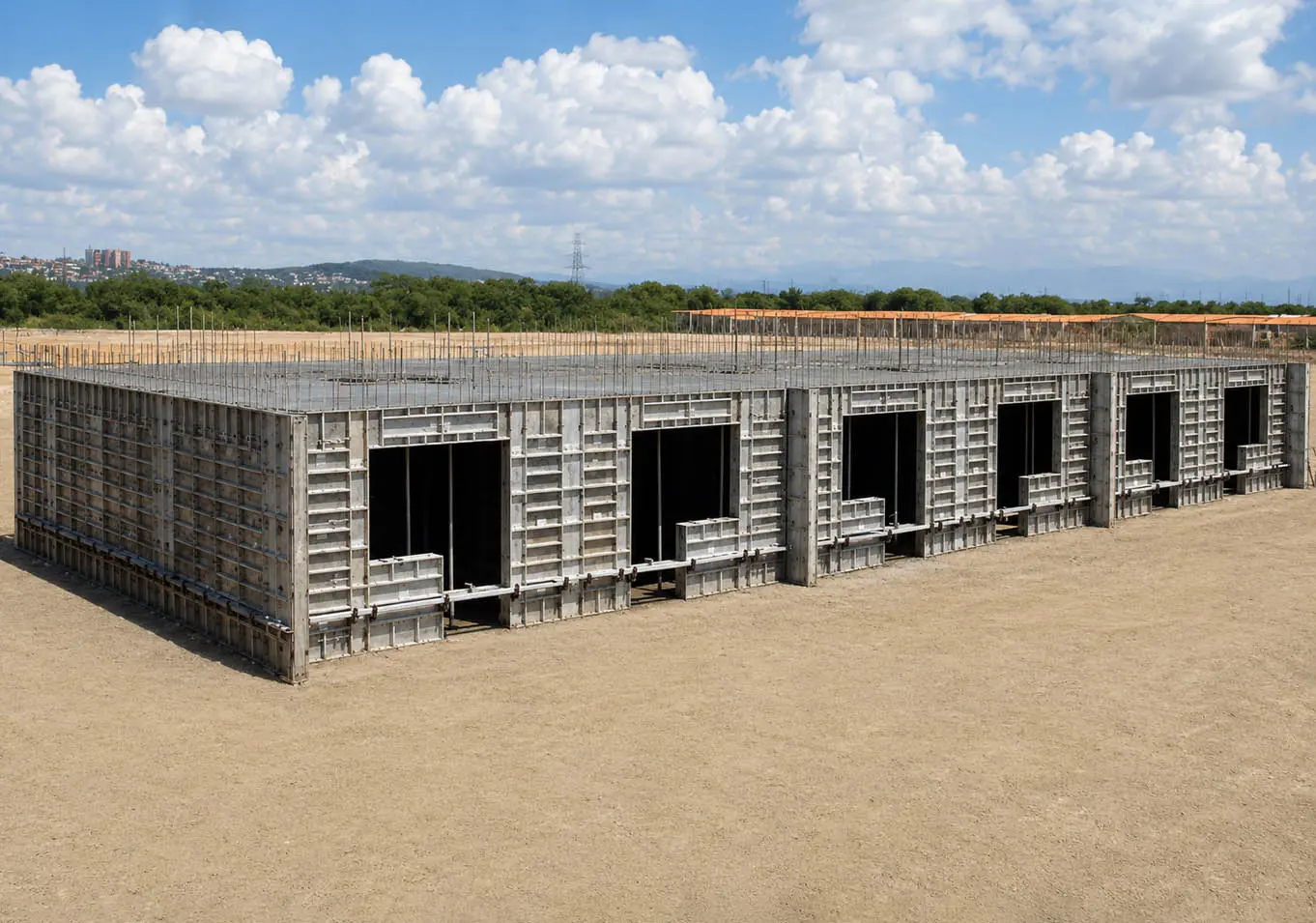

High Reusability: Engineered for over 300 reuse cycles with a high recycling residual value, significantly lowering long-term project costs.

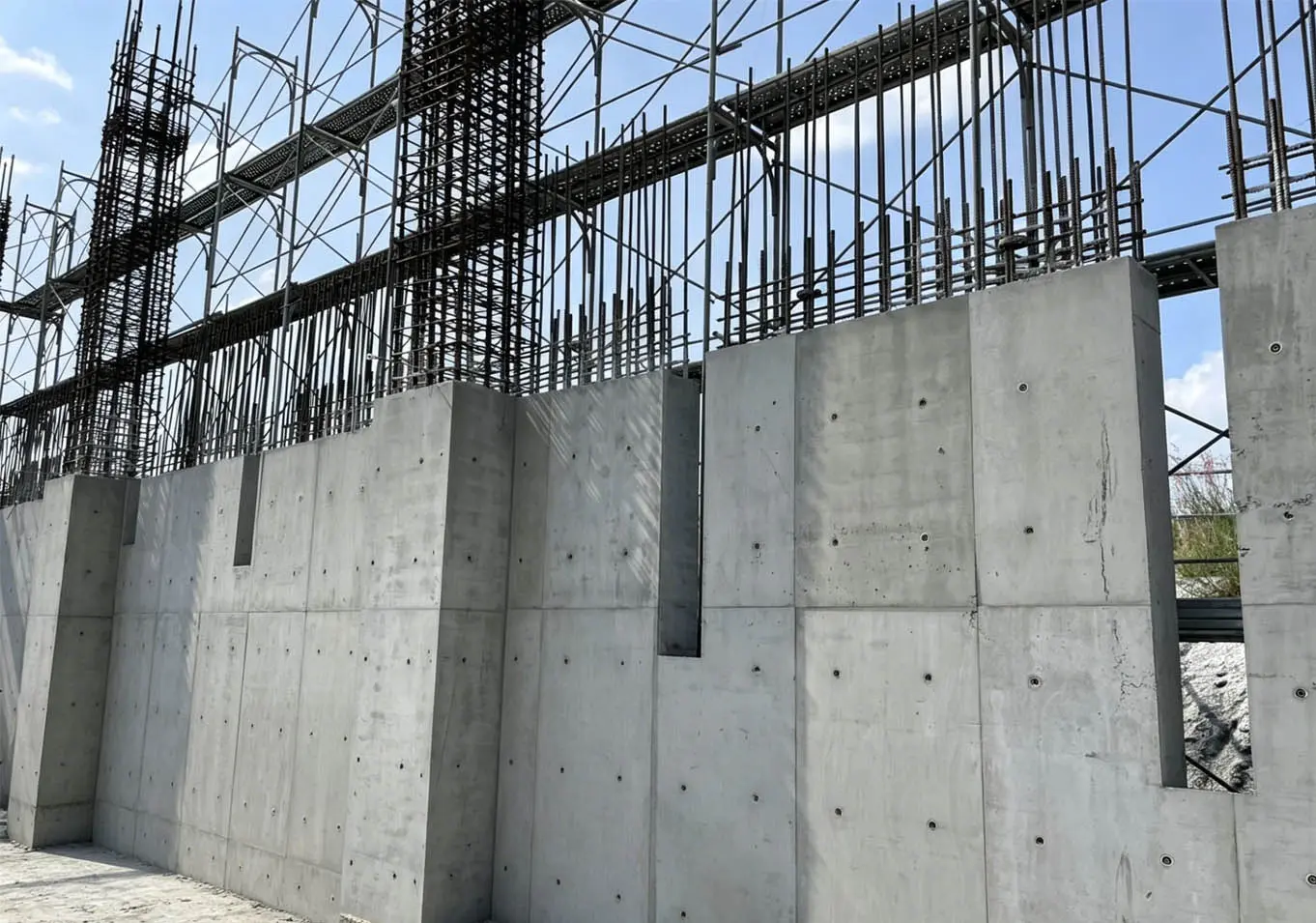

Rapid Cycle Time: Utilises an early stripping system to achieve a fast 4 to 5 days per floor construction cycle, drastically shortening project timelines.

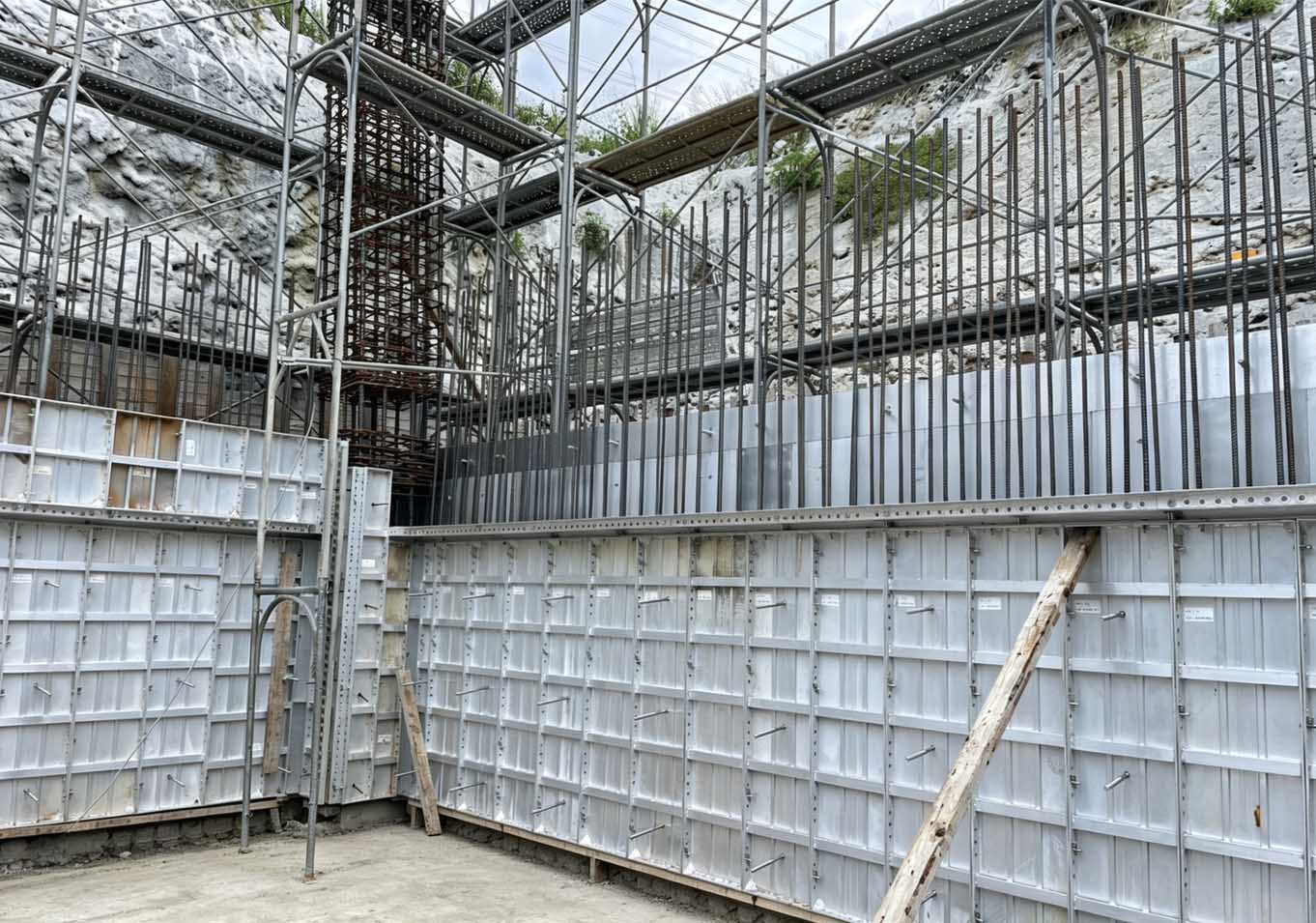

Premium Concrete Finish: Delivers exceptional flatness and seamless splicing, achieving a fair-faced concrete finish that eliminates costly plastering work.

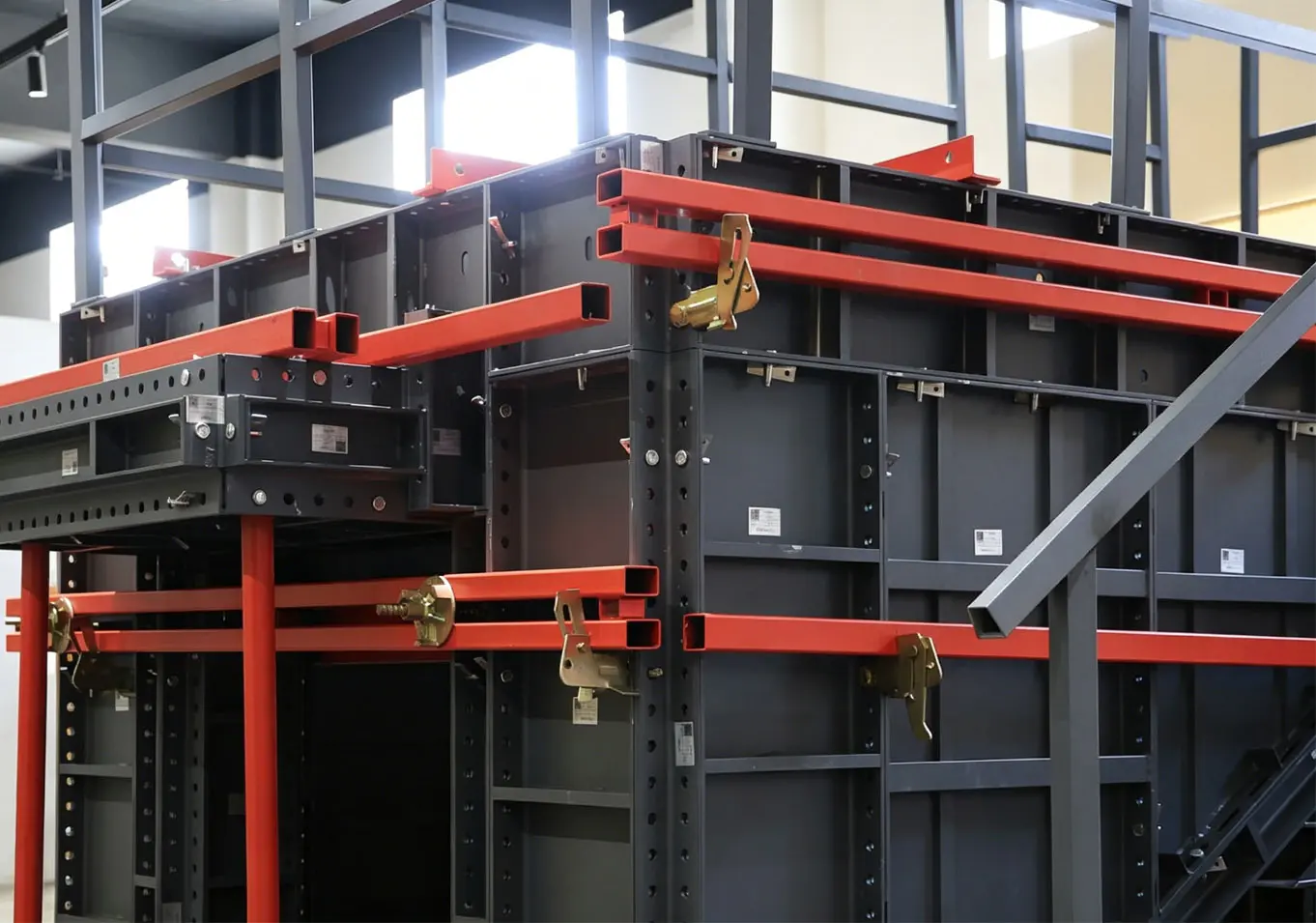

Eco-Friendly Construction: Replaces traditional wood timber to drastically reduce construction waste and timber consumption, supporting sustainable green building.

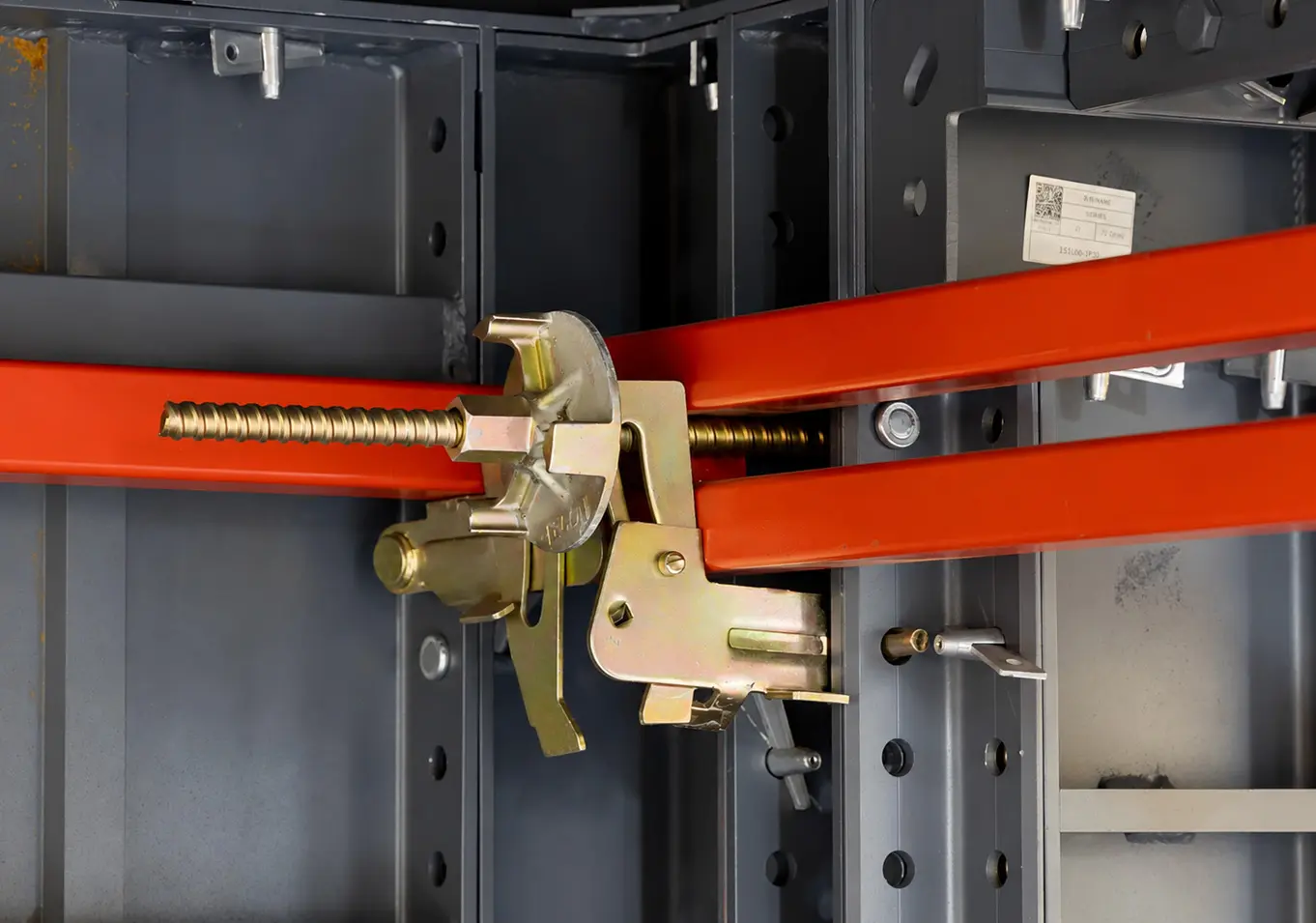

Safe & Crane: Free Handling-Weighing only 20kg/㎡, panels allow easy manual floor-to-floor transmission, reducing crane reliance and keeping the site clean and safe.

Aluminum Formwork Application

Widely used in medium- and small-scale residential and commercial buildings, basements, columns, and modular housing projects, especially in applications requiring corrosion resistance and high surface quality.

Technical Specifications

Aluminum Formwork Technical Specifications

System Type	Aluminum Panel Modular System
Material	6061-T6 Aluminum Alloy
Dimensions	0.05×0.05 m~0.60×2.40 m
Max Custom Size	0.60×3.50 m
Standard Shoring	Light duty prop
Panel Weight	22 kg/m²~30 kg/m²
Max Panel Size	0.60×2.40 m
Panel Depth	65/63.5 mm
Max Permissible Fresh Concrete Pressure	50 kN/m²
Max Casting Slab Thickness	250 mm
Installation Time	120~200 m² /day
Handling Method	Manual/Forklift
Load Quantity	936 m² per 20 GP; 3168 m² per 40 HQ (with pure 0.60×2.40 m panels only)
