Climbing Formwork CB180/240

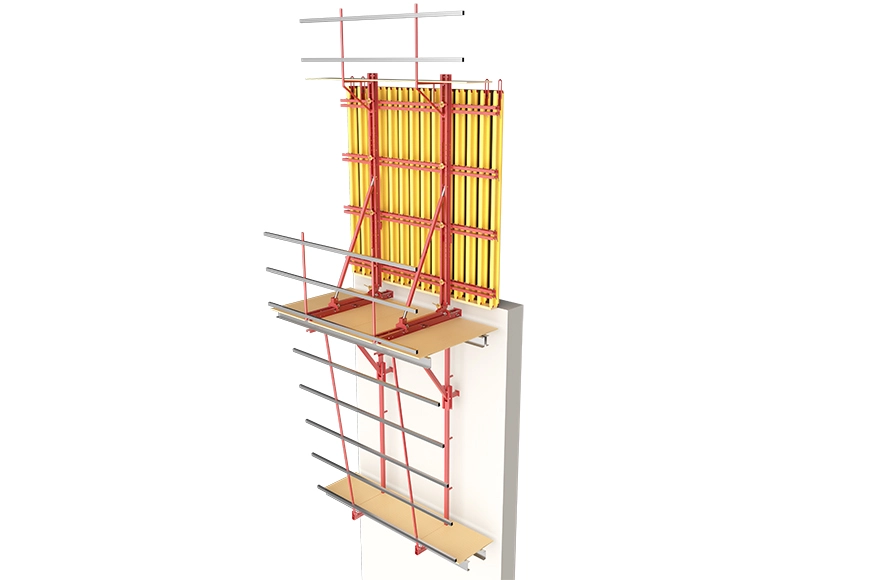

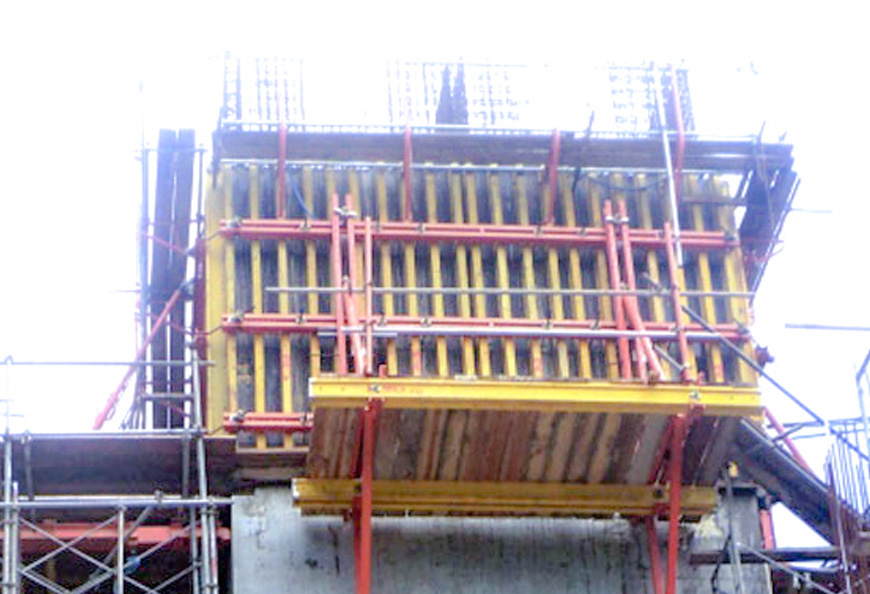

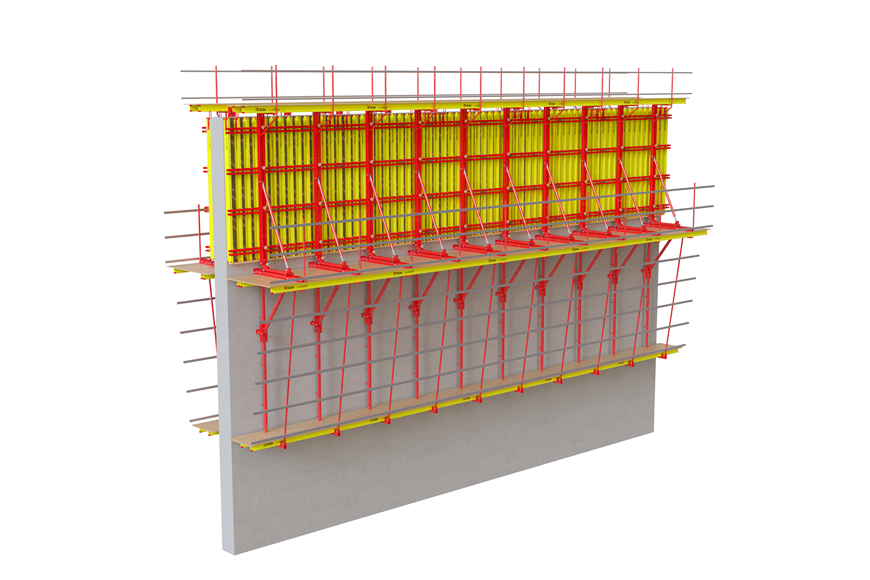

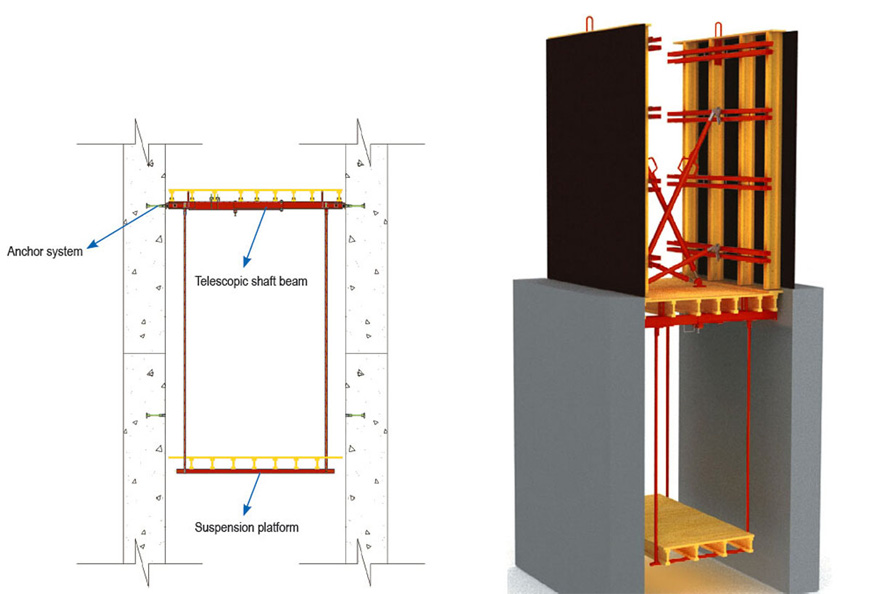

TECON Climbing Formwork CB180 & CB240 is a crane lifted climbing system. The climbing unit consists of formwork panel, climbing bracket, shaft platform beam and anchoring system. It can jump to the next pouring height for the core wall or external wall with the assistance of tower crane, and provides safe workplatform for both formwork panel and site workers.

Features of Climbing Formwork CB180/240

  • Time-saving moving procedure of the complete set to reach the next pouring height with only one crane lift

  • Offer speedy pouring cycle for the vertical structure

  • Provides 3-5 platforms for more convenient and efficient work

  • Reliable and high safety operation condition thanks to the anchor system

  • Compatible with TECON wall formwork system such as TECON Base 20 Wall Formwork HETO Frame Wall formwork and others

Specification of Climbing Formwork CB180/240

  • Main components: Climbing bracket, formwork, anchor system

  • Maximum one-time pouring height: 6 m

  • Standard bracket height: 11 m

  • The platform number: 3 to 5 floors

  • Standard unit size: 4 m with 2 pieces of bracket

  • The range of platform width: 1800~2400 mm

  • Main platform provides up to 2.4 m sufficient space for workers

  • Retraction of formwork panel up to 750 mm allows its cleaning on the shuttering

Application of Climbing Formwork CB180/240

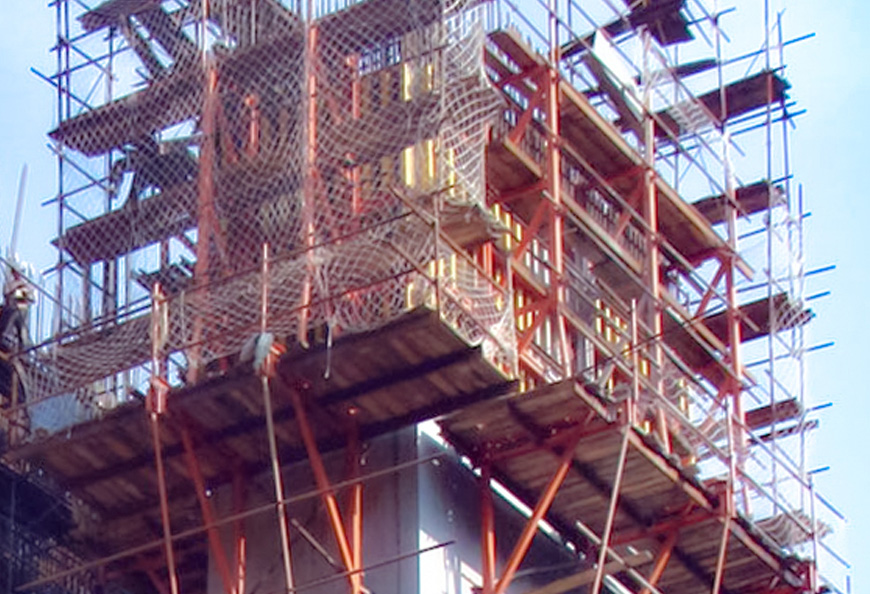

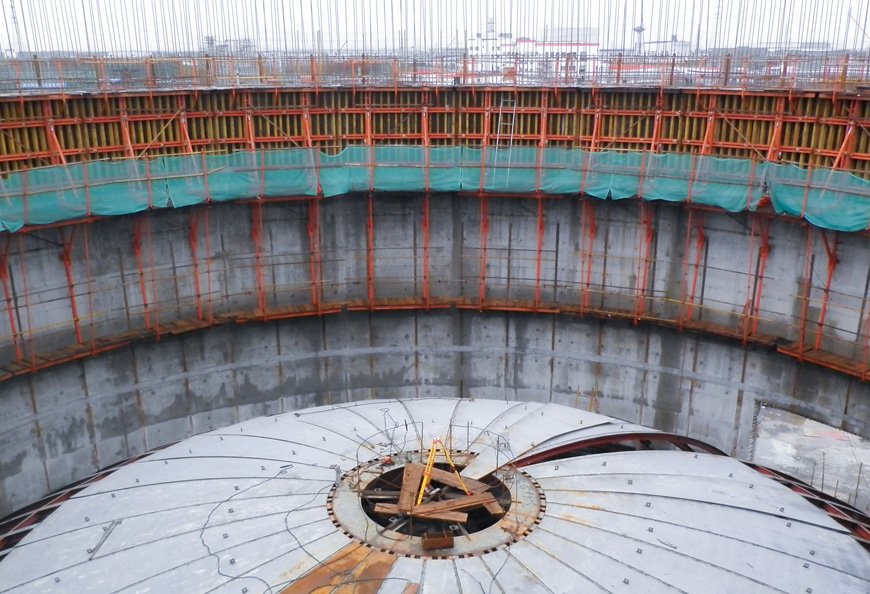

High rise buildings, bridge piers, water tanks, LNG tanks and others.
