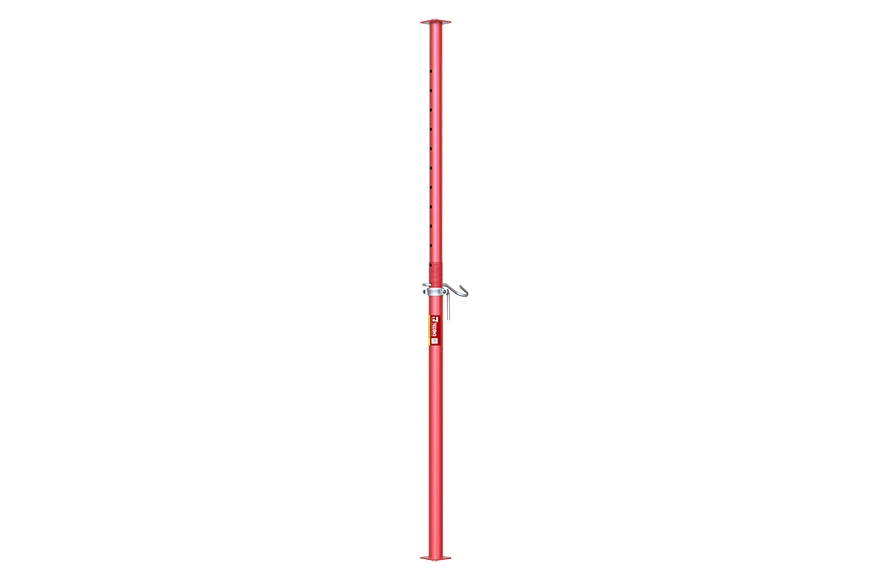

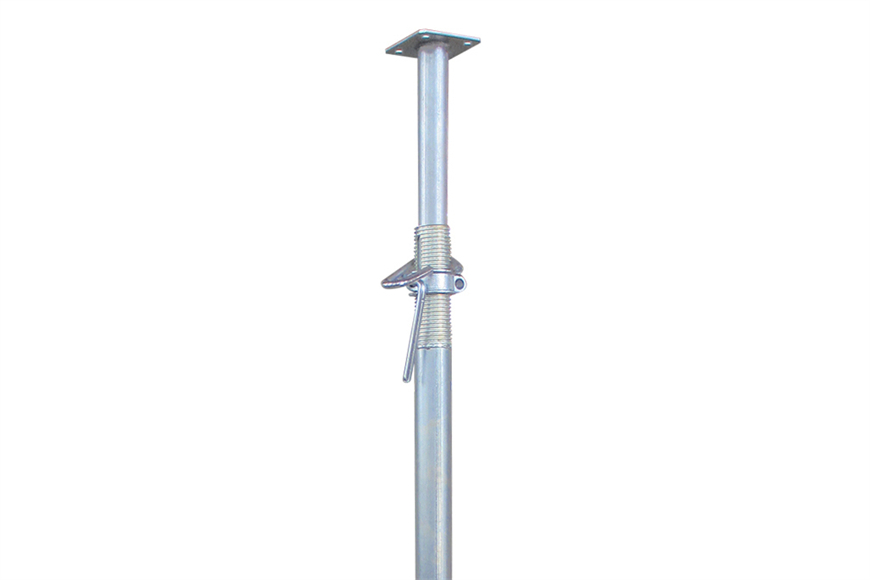

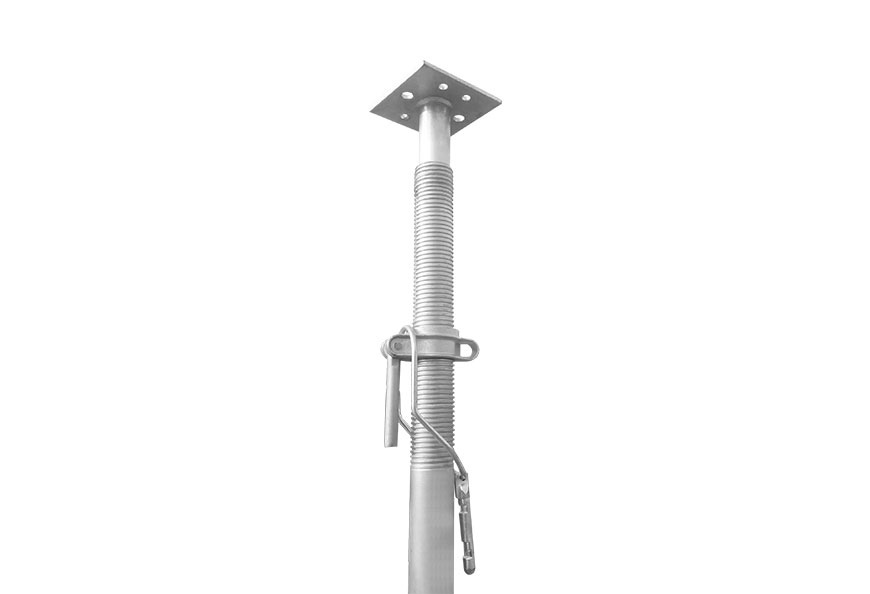

Light Duty Prop

Features of Light Duty Prop

• Low bearing capacity and low unit cost

• Cast iron nut or cast steel nut

• OEM fabrication is avaiable based on your drawing or sample

• Painting, electro galvanization, powder coating finishing for option

Specifications of Light Duty Prop

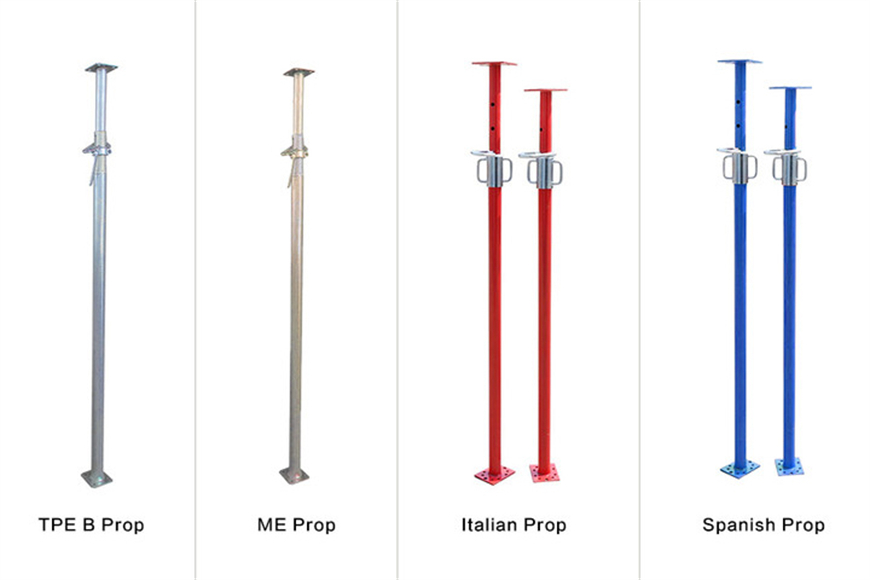

• Various types of props available such as Italian Prop, Spanish Prop etc.

  Model	Adjustable Range (mm)	Unit Weight (kg)	Load Capacity(kN)	O.D (mm)
  Light Duty Prop 25	1500-2500	10.06	10	60.3/48.3
  Light Duty Prop 30	1700-3000	11.07	10	60.3/48.3
  Light Duty Prop 35	2000-3500	12.08	10	60.3/48.3
  Light Duty Prop 40	2250-4000	13.09	10	60.3/48.3

• Medium Duty Prop

  Model	Adjustable Range (mm)	Unit Weight (kg)	Load Capacity(kN)	O.D (mm)
  Medium Duty Prop 25	1450-2550	12.66	20	60.3/48.3
  Medium Duty Prop 25	1750-3000	14.79	20	60.3/48.3
  Medium Duty Prop 25	1965-3500	16.68	20	60.3/48.3

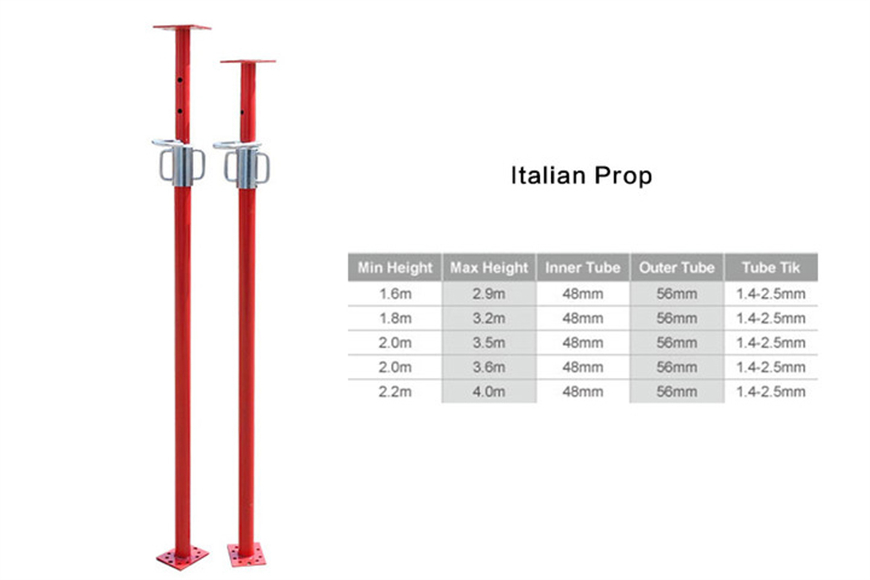

• Italian prop

  Min Height (m)	Max Height (m)	Inner Tube (mm)	Outer Tube (mm)	Tube Tik (mm)
  1.6	2.9	48	56	1.4-2.2
  1.8	3.2	48	56	1.4-2.2
  2.0	3.5	48	56	1.4-2.2
  2.0	3.6	48	56	1.4-2.2
  2.2	4.0	48	56	1.4-2.2

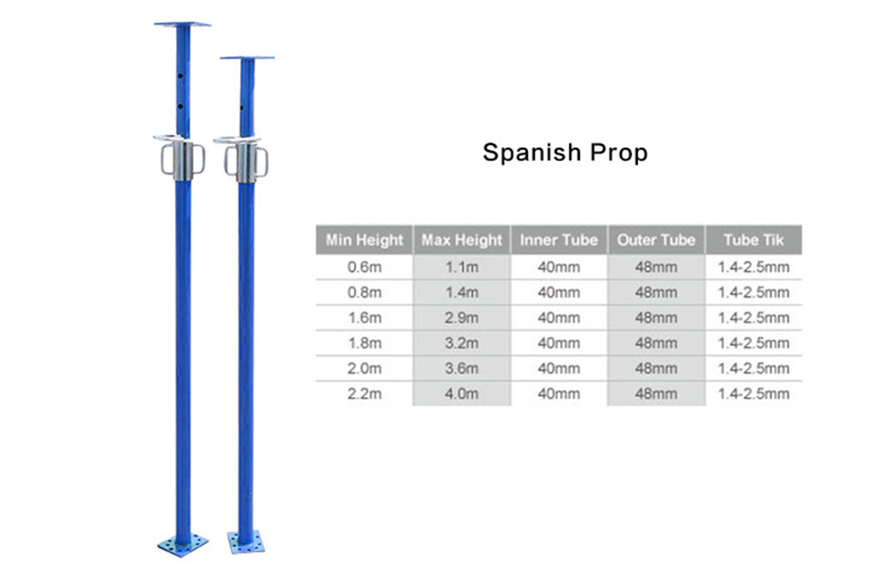

• Spanish prop

  Min Height (m)	Max Height (m)	Inner Tube (mm)	Outer Tube (mm)	Tube Tik (mm)
  0.6	1.1	40	48	1.4-2.2
  0.8	1.4	40	48	1.4-2.2
  1.6	2.9	40	48	1.4-2.2
  1.8	3.2	40	48	1.4-2.2
  2.0	3.6	40	48	1.4-2.2
  2.2	4.0	40	48	1.4-2.2

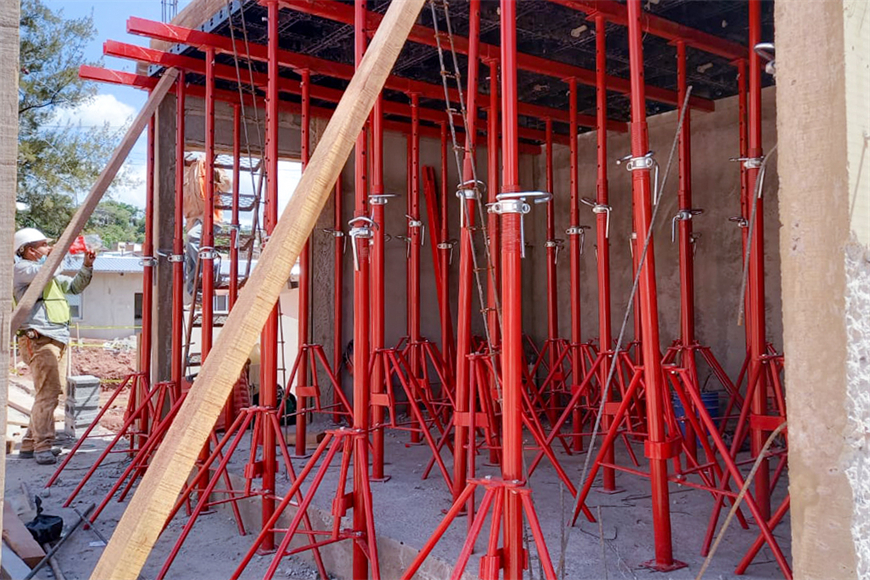

Application of Light Duty Prop

    Residential and light industrial projects without high standard requirements.
