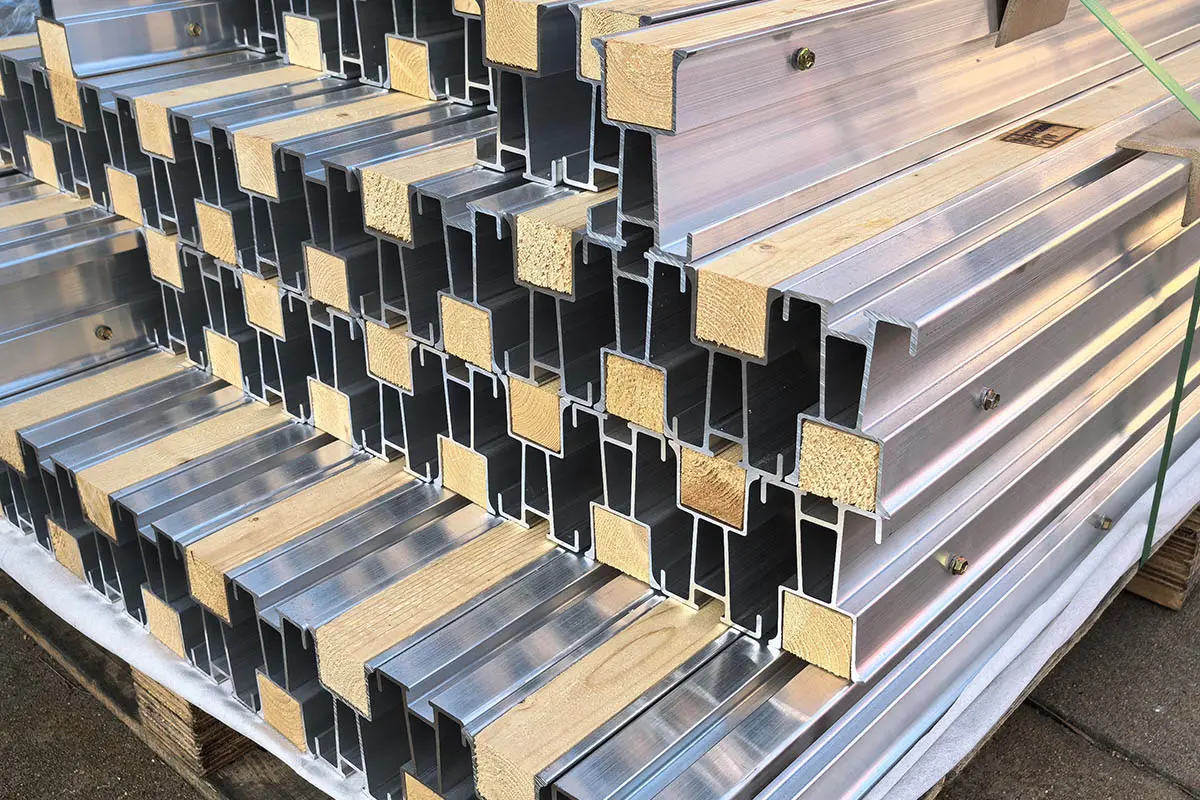

TECON Aluminum Beam
TECON Aluminium Beam is available in various H-beam configurations and is designed for use as both primary and secondary beams in construction applications. Combining high strength with a lightweight profile, it has become an increasingly popular solution across a wide range of projects. Fully compatible with TECON wall and slab formwork systems, it also serves as an efficient and durable substitute for traditional timber beams.
Features & Benefits
Aluminum Beam Features and Benefits
- High Strength-to-Weight Ratio – Delivers excellent load-bearing performance while reducing overall support requirements.
- Weather-Resistant Durability – Maintains stable structural performance under moisture, humidity, and harsh environmental conditions.
- Long Service Life & Cost Efficiency – Extended durability minimizes replacement frequency, while high recyclability and residual value allow for profitable resale, significantly reducing overall project costs.
- Lightweight & Easy Handling – Lightweight design enables faster installation and dismantling, improving site productivity and handling efficiency.
- Reliable Alternative to Timber Beams – An effective substitute for conventional timber beams, particularly suitable for coastal and high-humidity construction environments.
Aluminum Beam Application

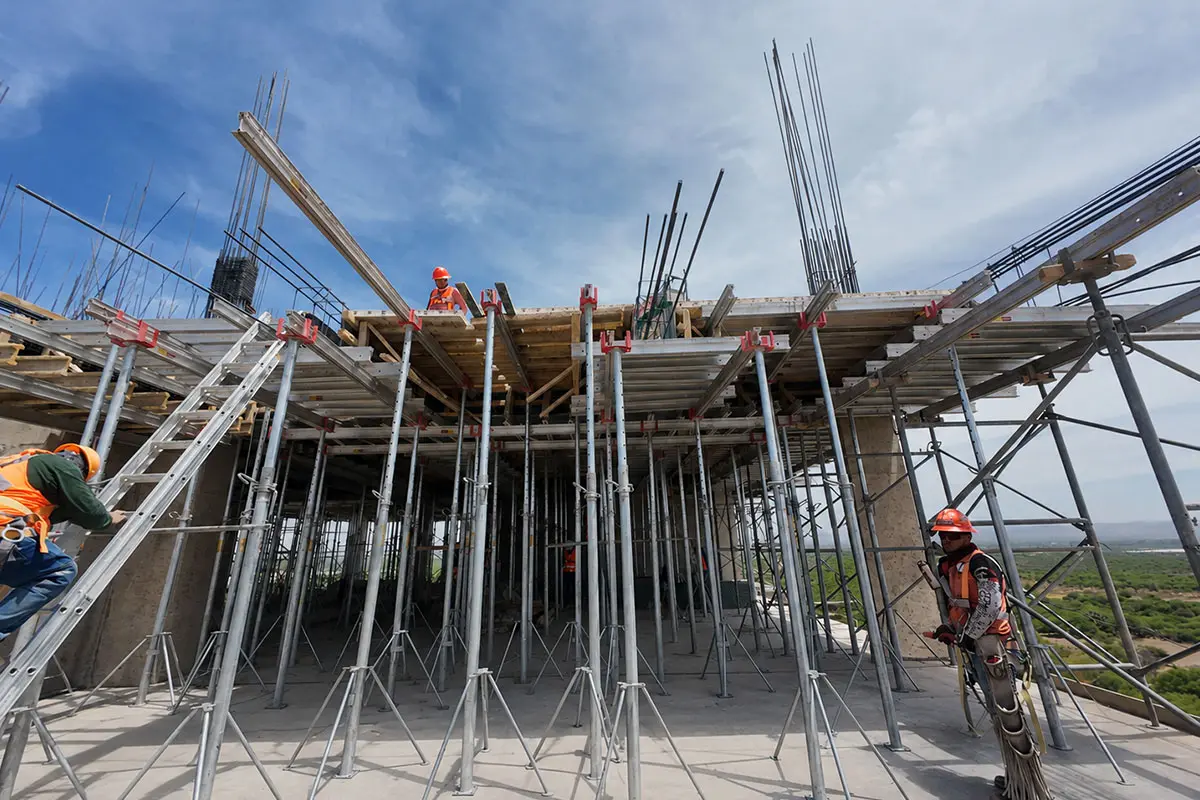

Widely used in slab, wall, column, and girder-based formwork systems, especially in coastal and high-humidity projects requiring durable and corrosion-resistant support beams.
Technical Specifications
Aluminum Beam Technical Specifications
| System Type | Girder | ||||
| Options | Material | Length | Width | Height | Weight |
| T95 Aluminum Beam | 6005-T5 | Customized | 95 mm | 2.32 kg | |
| T120 Aluminum Beam | 120 mm | 2.91 kg | |||
| T140 Aluminum Beam | 140 mm | 3.15 kg | |||
| T150 Aluminum Beam | 150 mm | 4.3 kg | |||
| T165 Aluminum Beam | 165 mm | 4.3 kg | |||
| T200 Aluminum Beam | 200 mm | 4.98 kg | |||
| T225 Aluminum Beam | 225 mm | 8.98 kg | |||
