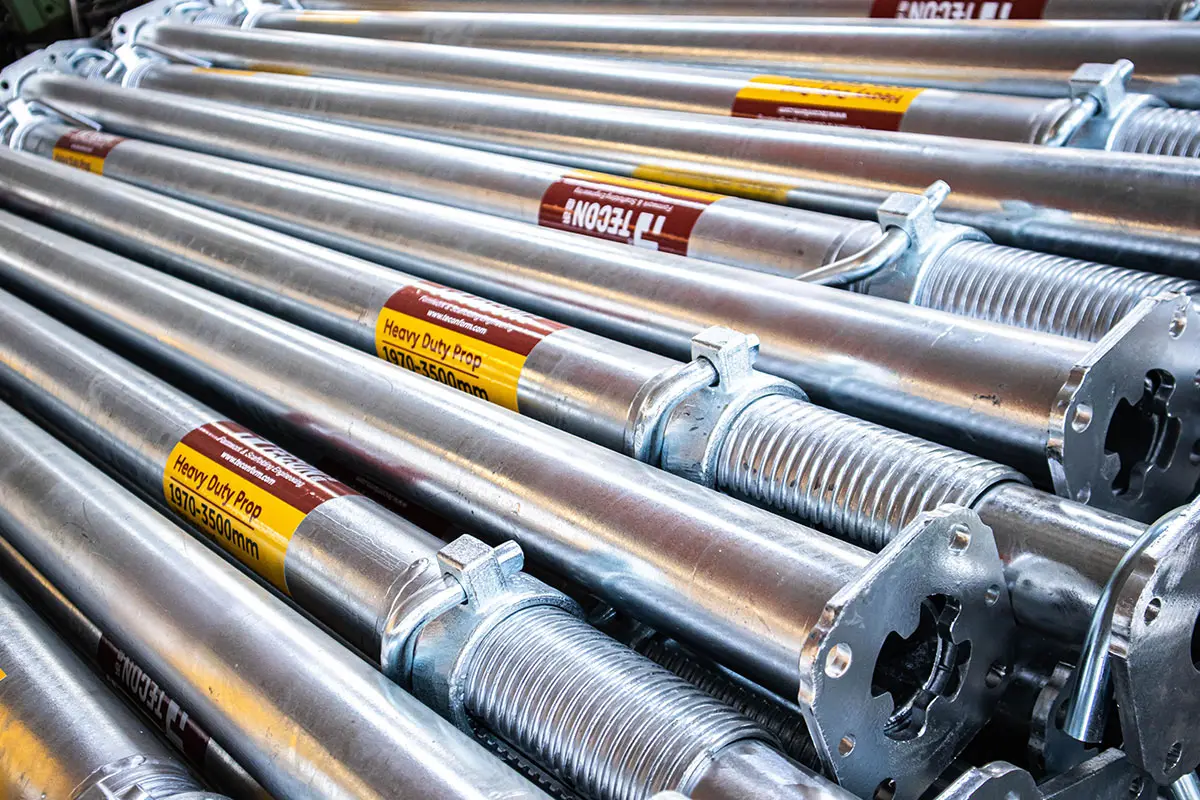

TECON Heavy Duty Prop
TECON Heavy Duty Steel Prop is a high-capacity adjustable shoring system designed for reliable slab and structural support applications. Available in Class D and Class E series, the props are manufactured in accordance with EN 1065 standards, providing robust load-bearing performance, enhanced durability, and efficient height adjustment for demanding construction environments.
Features & Benefits
Heavy Duty Prop Features and Benefits
- 20 kN or 30 kN Rated Load Capacity – Delivers reliable load-bearing performance throughout the full height adjustment range.
- EN 1065 Compliant – Manufactured and tested according to EN 1065 standards to ensure verified safety and dependable structural performance.
- High-Strength Steel Construction – Features a Q355 inner tube combined with coated or galvanized outer tubes for enhanced durability and corrosion resistance.

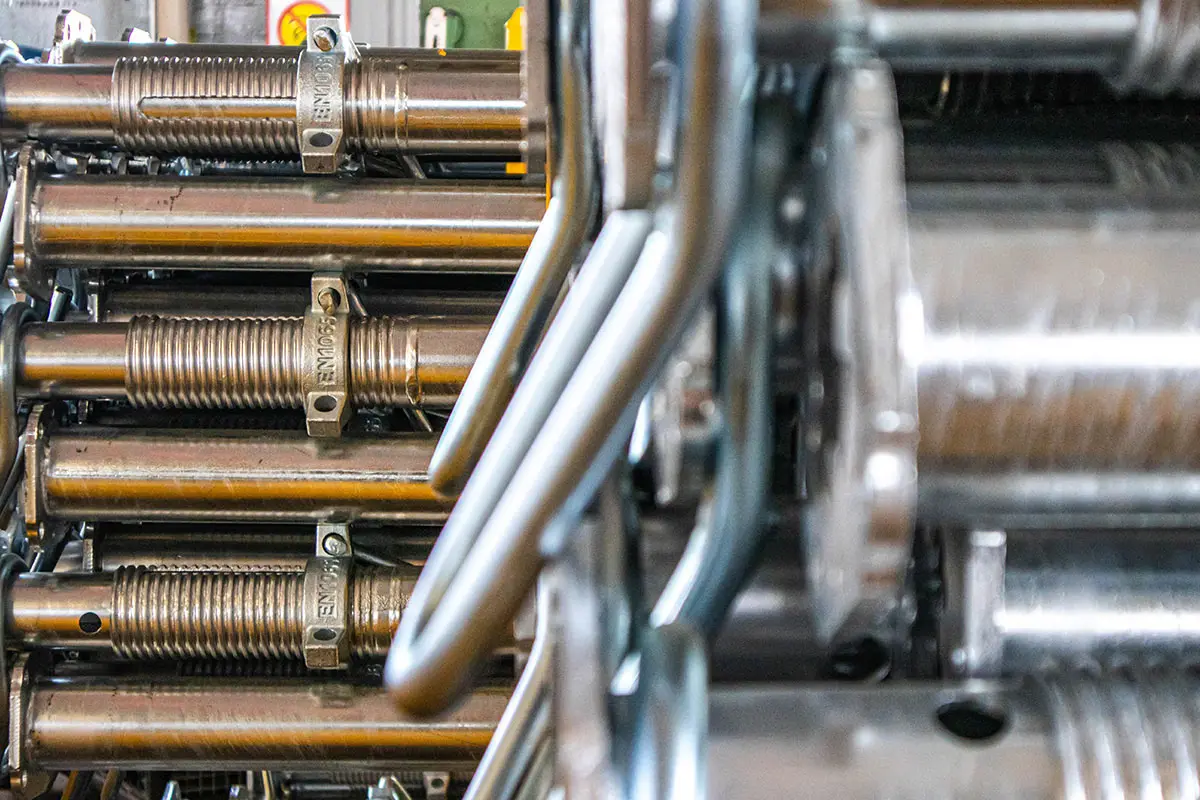

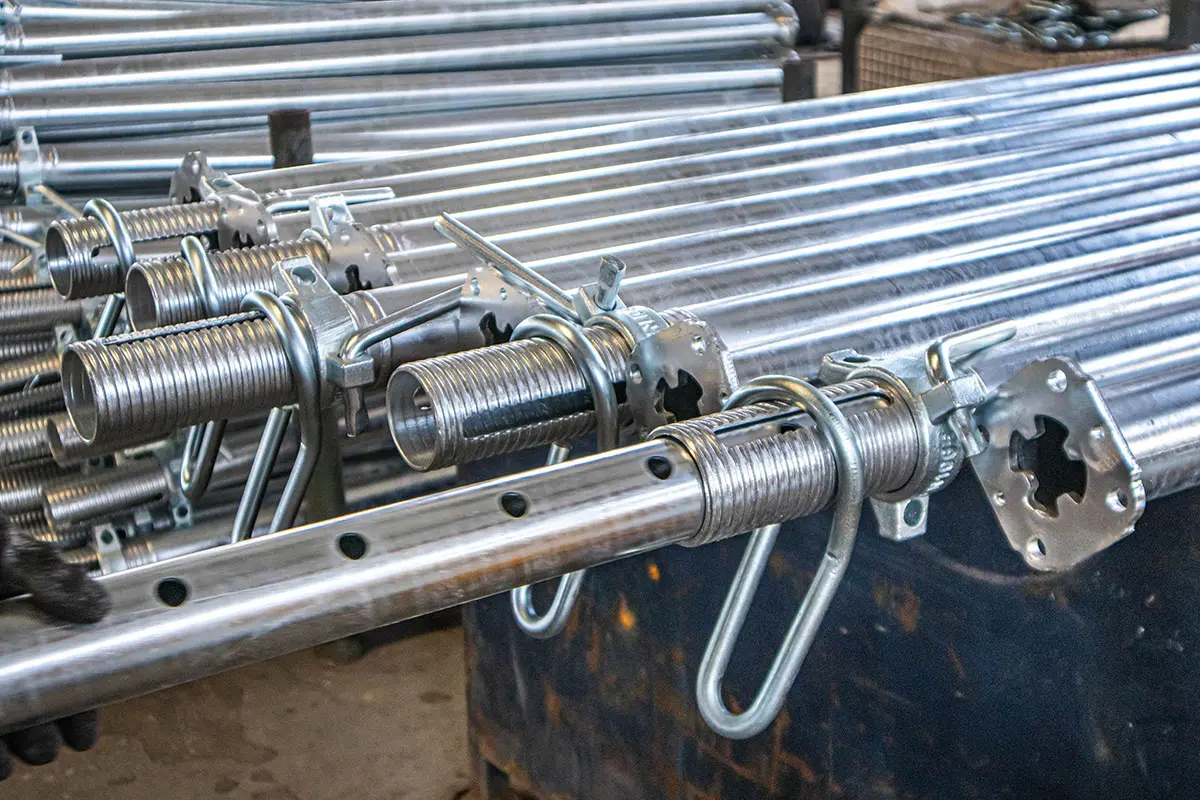

- Smooth & Secure Height Adjustment – Equipped with heavy-duty cast iron or forged adjustment nuts for fast, stable, and efficient height regulation.
- Reduced Prop Requirement – High load capacity allows fewer props to be used on site, improving material efficiency and reducing labor demand.
Heavy Duty Prop Application
Widely used in slab formwork support, beam shoring, temporary structural support, and other heavy-duty construction applications.
Technical Specifications
Heavy Duty Prop Technical Specifications
| System Type | Steel shoring props | |
| Material | Q355 steel profile | |
| Diameter | Ø63/76 mm; Ø76/89 mm | |
| Load Capacity | 20 kN/30kN | |
| Surface Treatment | Hot dip galvanized | |
| Model Type | Adjustable Range | Weight |
| Heavy Duty Prop TEP-D 25G | 1470-2500 mm | 16.56 kg |
| Heavy Duty Prop TEP-D 30G | 1710-3000 mm | 18.80 kg |
| Heavy Duty Prop TEP-D 35G | 1970-3500 mm | 21.11 kg |
| Heavy Duty Prop TEP-D 40G | 2250-4000 mm | 24.49 kg |
| Heavy Duty Prop TEP-D 45G | 2500-4500 mm | 28.94 kg |
| Heavy Duty Prop TEP-D 50G | 2720-5000 mm | 33.46 kg |
| Heavy Duty Prop TEP-D 55G | 3020-5500 mm | 39.48 kg |
| Heavy Duty Prop TEP-E 25G | 1470-2500 mm | 17.45 kg |
| Heavy Duty Prop TEP-E 30G | 1710-3000 mm | 19.71 kg |
| Heavy Duty Prop TEP-E 35G | 1970-3500 mm | 22.47 kg |
| Heavy Duty Prop TEP-E 40G | 2250-4000 mm | 29.97 kg |
| Heavy Duty Prop TEP-E 45G | 2500-4500 mm | 32.71 kg |
