TECON Single Side Wall Formwork SSF

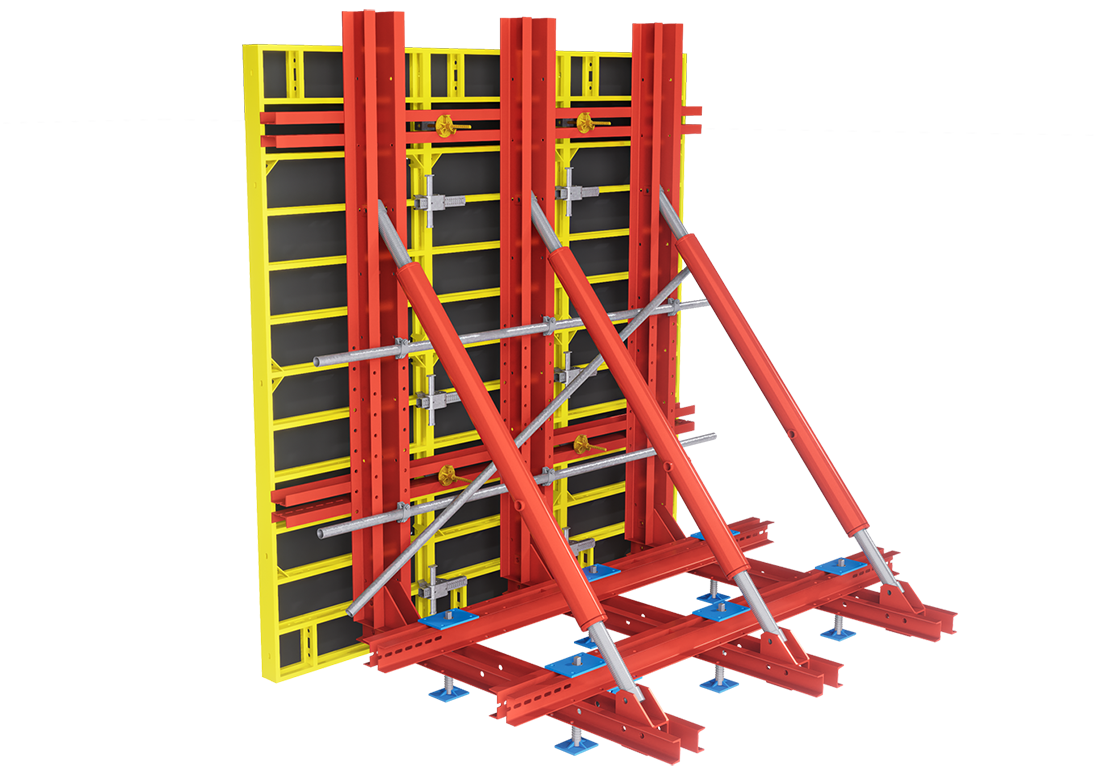

TECON Single Side Formwork (SSF) is a supporting bracket system designed for single-sided concrete wall construction where tie rods cannot pass through the structure. The system transfers fresh concrete pressure safely to the supporting frame and foundation, providing a stable and efficient solution for underground and excavation-related projects.

Request a Quote All Products

Features & Benefits

Product Data Sheet

Assembly Tutorial

Features & Benefits

Single Side Wall Formwork Features and Benefits

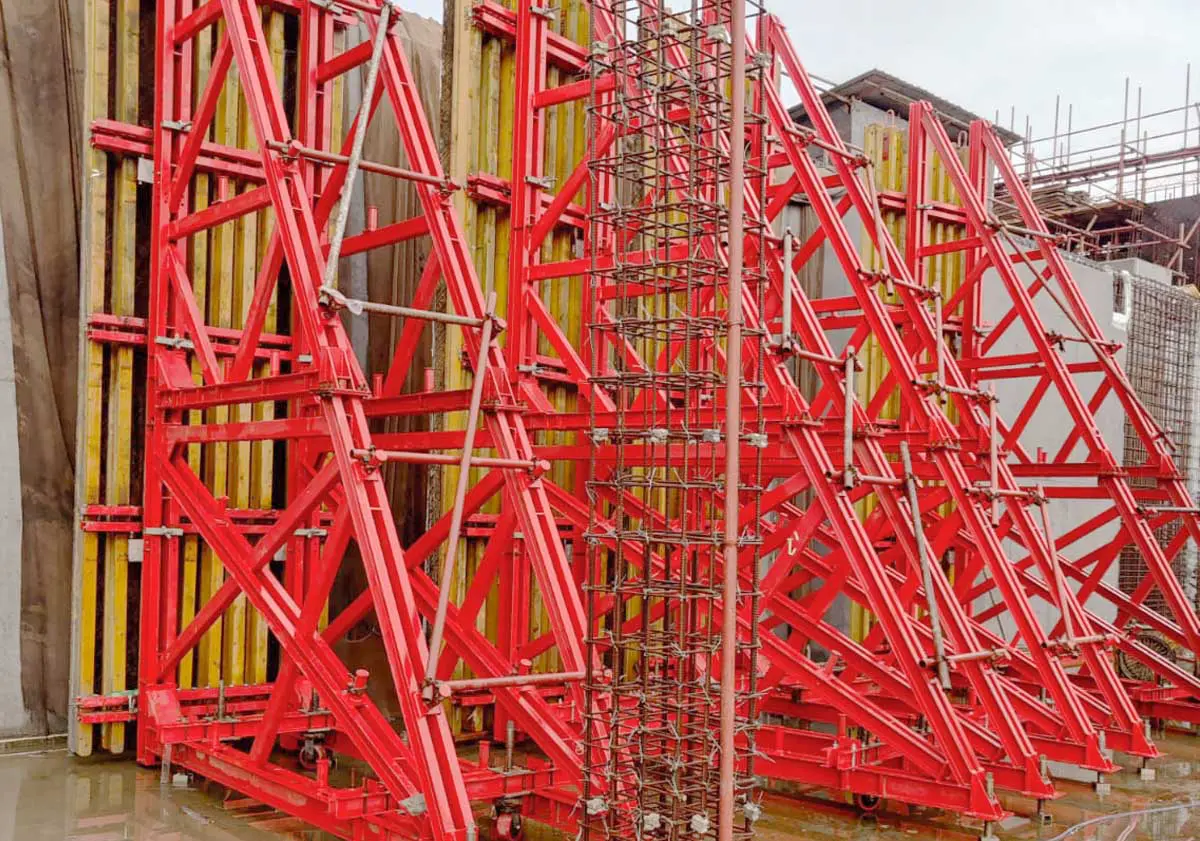

Efficient Crane-Assisted Assembly: Standard frame brackets enable fast and straightforward installation with crane assistance.

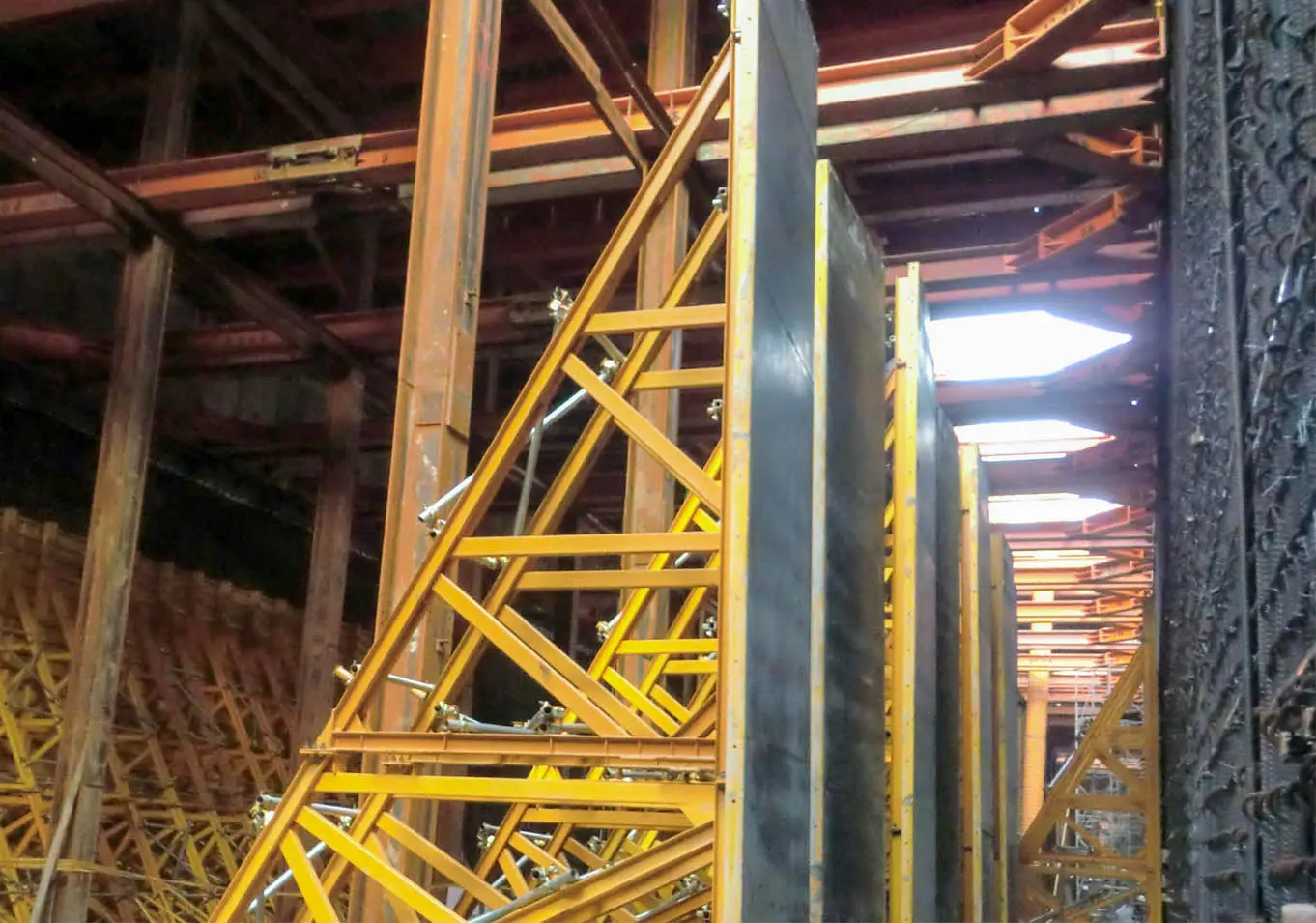

Flexible Height Configuration: Available in both standard and customized frame heights to suit different project requirements.
Adaptable Concrete Pressure Capacity: Frame spacing can be adjusted to accommodate varying fresh concrete pressures.

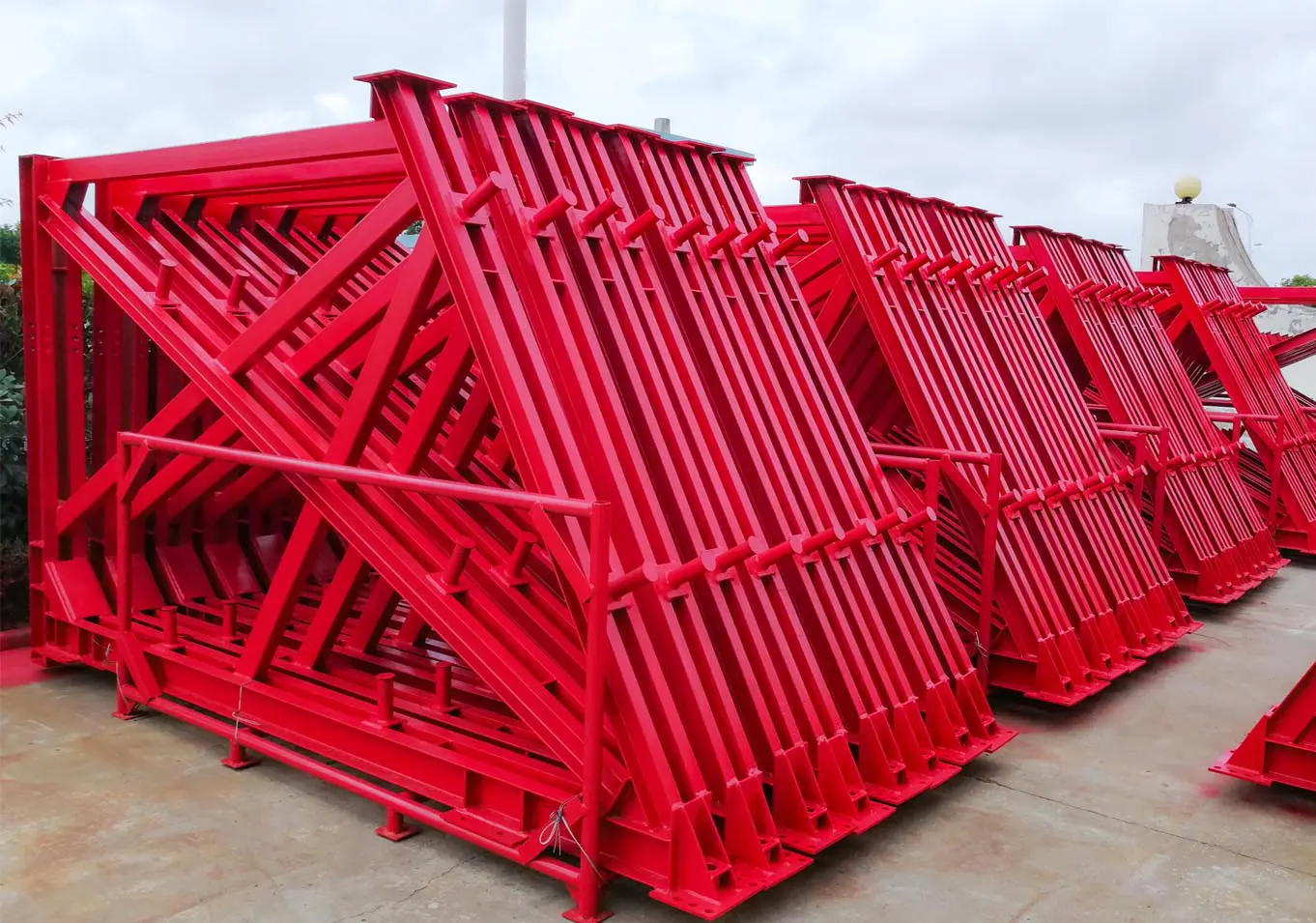

Easy On-Site Mobility: Integrated cast wheels allow convenient repositioning by the workforce on site.
Reliable System Compatibility: Fully compatible with TECON wall formwork systems and can be reinforced with G.I. pipes and couplers for enhanced stability.

Single Side Wall Formwork Application

Widely used in single-sided wall construction for metro stations, sewage treatment plants, basements, and excavation projects.

Technical Specifications

Single Side Wall Formwork Technical Specifications

System Type	Supporting Bracket System
Material	Q235 Steel Profile
Standard Bracket Height	4/2.2/1.5 m
Standard Unit Size	2 m
Max One-time Casting Height	8.0m
Anchorage Pull-out Resistance	Minimum 150 kN
Installation Time	10 units/day (a group of 6 people)
Connection Technology	Ground anchor
Handling Method	Wheel transport (horizontal) / crane lifting
