TECON Ringlock Scaffolding
The most convenient, durable and efficient scaffolding system for shoring, facade platform and work access

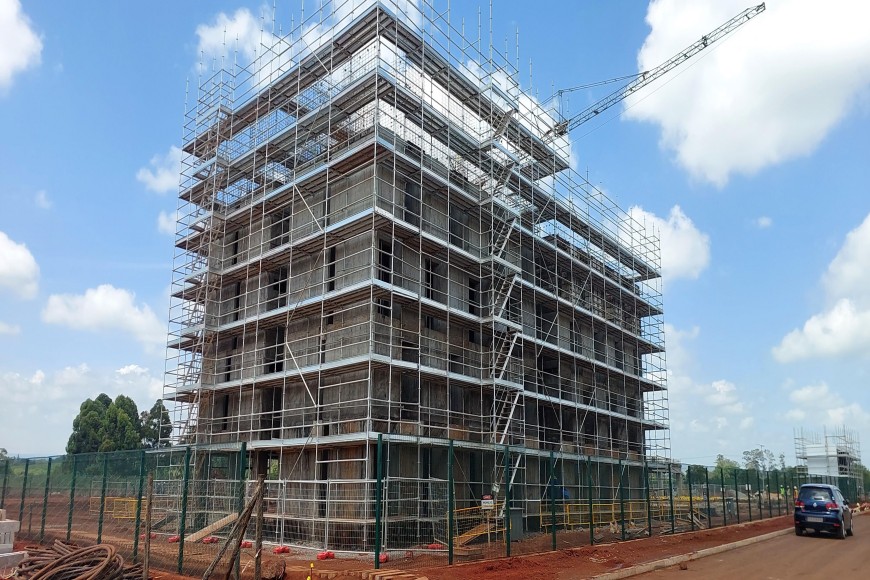

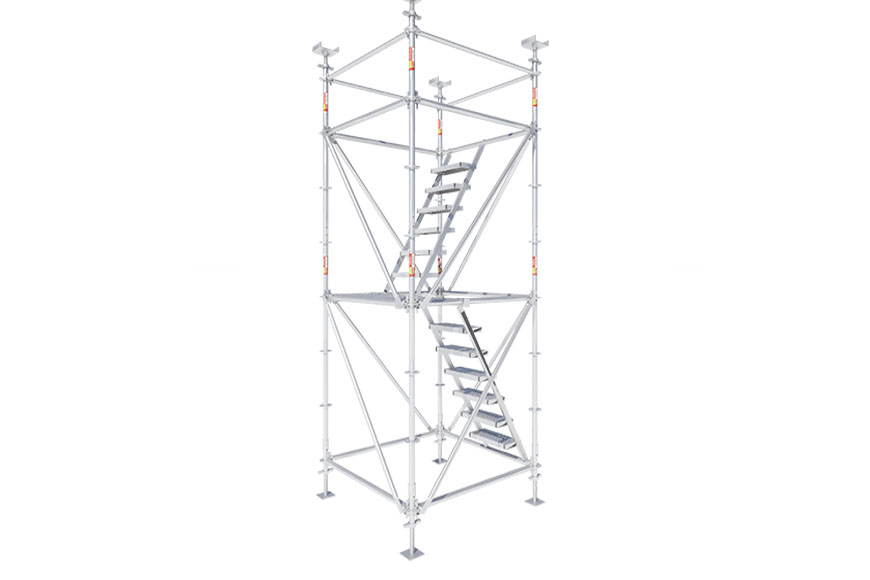

TECON Ringlock Scaffolding is a versatile modular system designed for both cost-effectiveness and multi-purpose applications. With its simple assembly process, all components can be securely locked in place using just a hammer. From shoring towers and façade platforms to stair towers, mobile towers, and access solutions, making it ideal for building sites, industrial facilities, and infrastructure projects.
Features & Benefits
Ringlock Scaffolding Features and Benefits
- Fast Assembly – Pre-measured components and simple wedge connections allow quick setup and dismantling, improving on-site efficiency.
- Versatile Use – Two diameter options (48 mm and 60 mm) with rosettes supporting up to eight ledgers adapt to standard, complex, and façade projects.

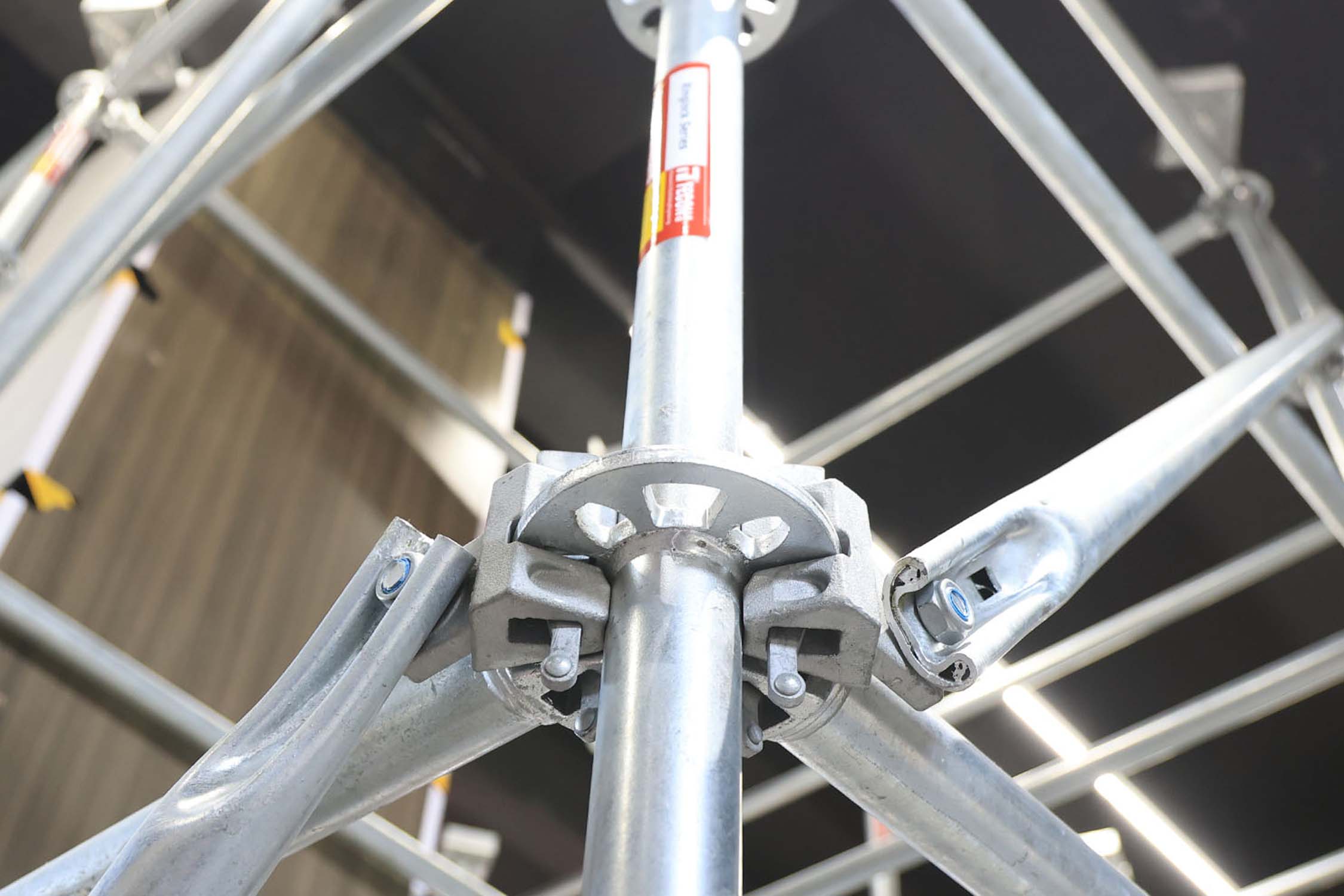

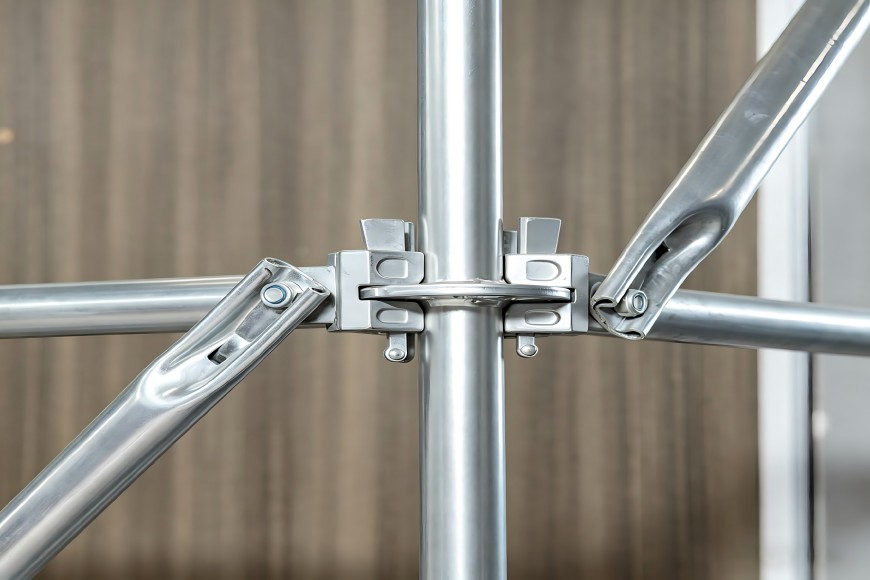

- Reliable and Safe – Wedge connections provide rigid, secure joints, ensuring stability and worker safety in all applications.

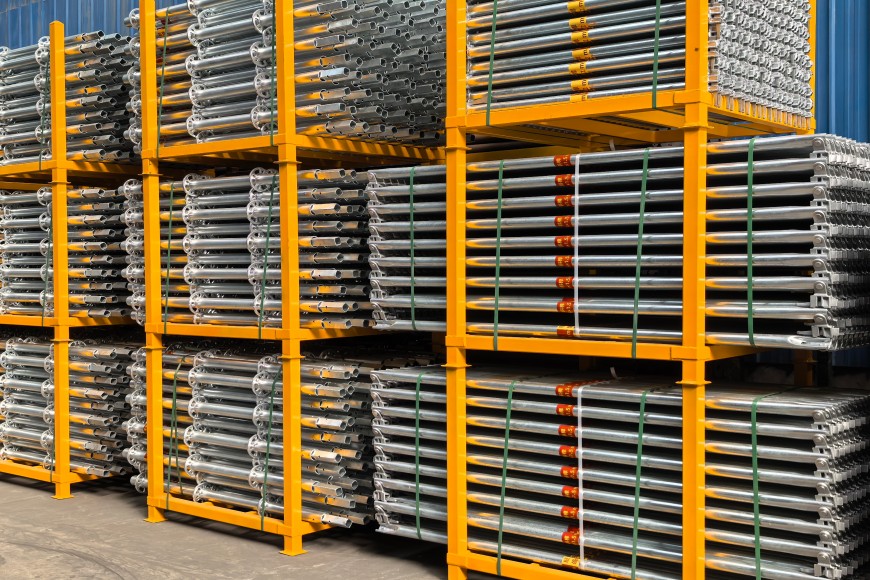

- Durable and Long-Lasting – Made from high-quality Q355 steel; easy to store and transport, offering extended service life.
- High Load and Space Efficiency – Strong load-bearing capacity for heavy-duty projects and modular design minimizes on-site footprint and simplifies logistics.
Ringlock Scaffolding Application

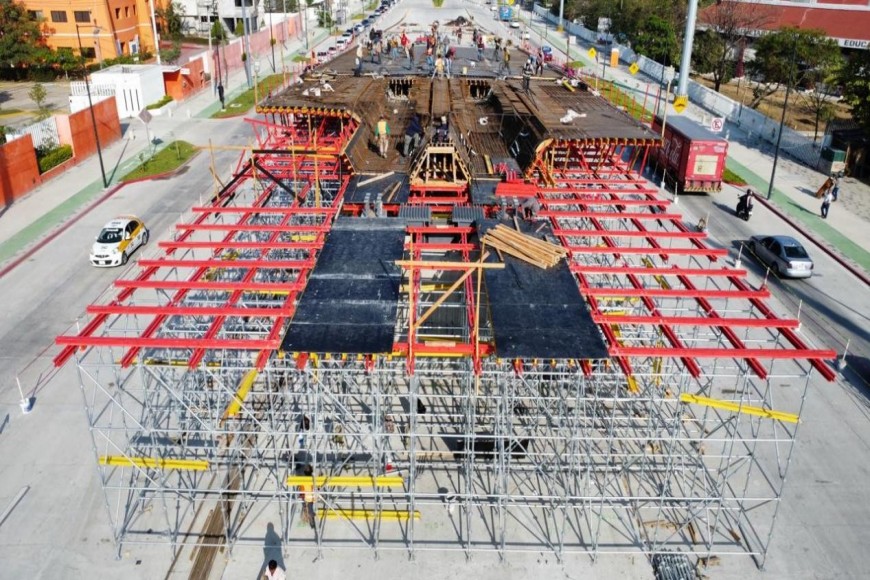

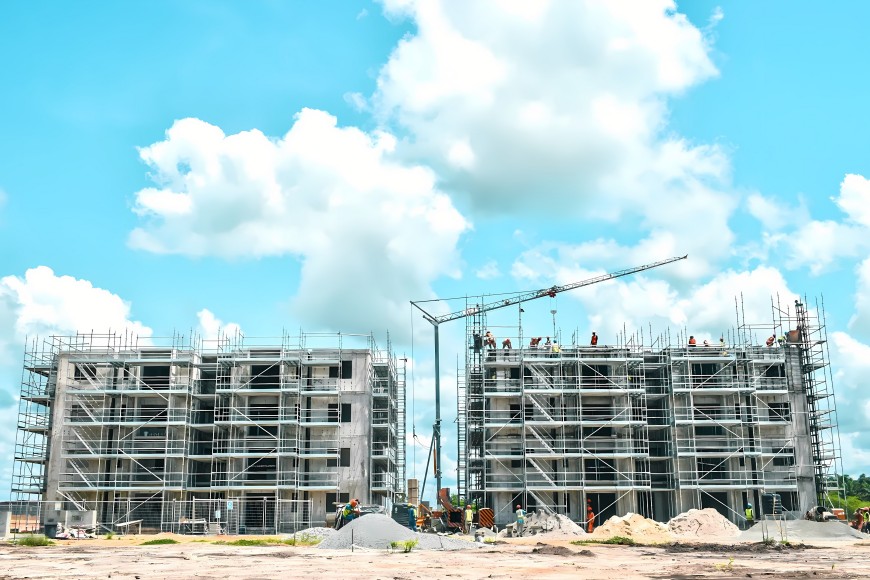

Power plants, refineries, power generate facilities, petrochemical plants, commerical buildings, residential, Bridges, tunnels, shipyards.
Technical Specifications
Ringlock Scaffolding Technical Specifications
| System Type | Facade, Working access, and Shoring System |
| Material | Q355 Steel Profile (Standard vertical*) |
| Max Support height | 24 m |
| Installation Time | 60 m3/person/day |
| Handling Method | Manual |
| Load Quantity | 12~18 t per 20 GP container; 22~27 t per 40 HQ container |
Ringlock Scaffolding Size Options
| Scaffolding Type | Ø48 Ringlock | Ø60 Ringlock |
| Typical Uses | Facade protection, working access and general shoring support | Heavy-duty and high-load shoring support |
| Tube Diameter | 48 mm | 60 mm |
| Standard (Base)Sizes | 1.0, 1.5, 2.0, 2.5, 3.0 m | 1.0, 1.5, 2.0, 2.5, 3.0 m |
| Standard Vertical Sizes | 1.0, 1.5, 2.0, 2.5, 3.0 m | 1.0, 1.5, 2.0, 2.5, 3.0 m |
| Diagonal (Bay Brace) Sizes | 0.6/0.9/1.2/1.5/1.8/2.1/2.4×1.5 m; 0.6/0.9/1.2/1.5/1.8/2.1/2.4×1.5 m; |
0.6/0.9/1.2/1.5/1.8/2.1/2.4×2.0 m 0.6/0.9/1.2/1.5/1.8/2.1/2.4×2.0 m |
| Ledger Sizes | 0.3, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1, 2.4 m | 0.3, 0.6, 0.9, 1.2, 1.5, 1.8, 2.1, 2.4 m |
| Steel Plank Sizes | 0.6, 0.9, 1.2, 1.5, 1.8, 2.1, 2.4 m | / |
| Stair Material & Sizes | Q195 Steel; 1.5/1.8/2.1×1.5 m (6 steps); 1.5/1.8/2.1×2.0 m (8 steps) |
/ |
Ringlock Scaffolding 3D Assembly Tutorial

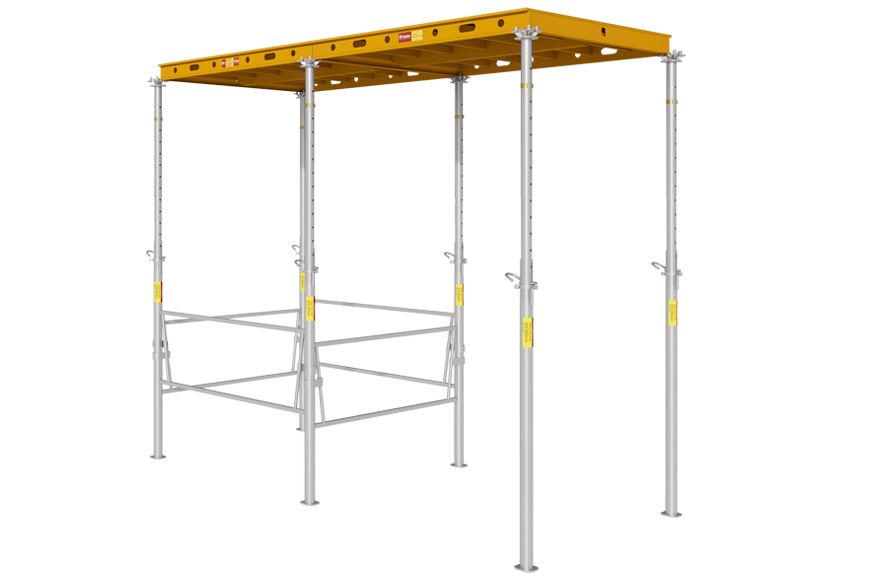

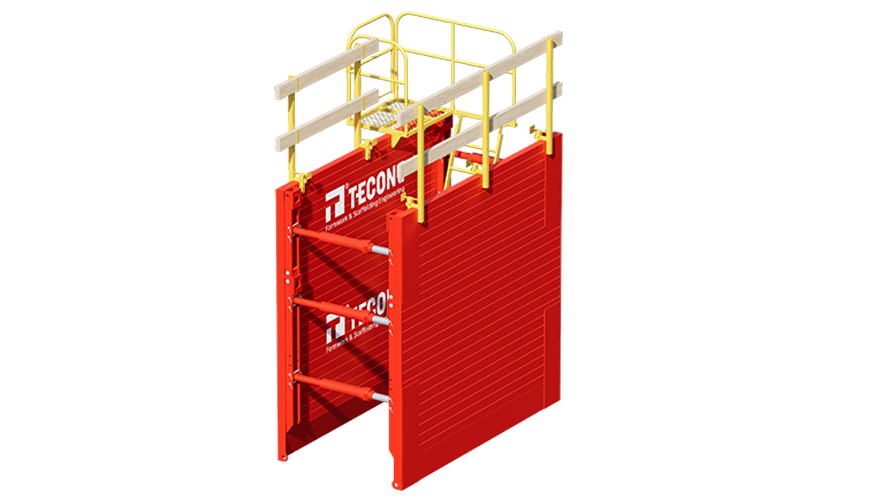

Scaffolding Products You May Also Like
All Products
Projects Show
All Projects
Your burning questions, answered
How to get a quotation?
You can send us your material list to request a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via the below contacts.
Email: info@teconform.com
Phone: +86-512-65650586
Mobile: +86-13862020161.
What is the payment term?
By T/T or L/C.
What is the lead time?
For climbing formwork, self-climbing platform, plastic formwork, we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.
For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.
For other systems, the lead time is from 30 to 45 days.
For a more accurate lead time, don’t hesitate to contact us for a specific product based on your quantity.
