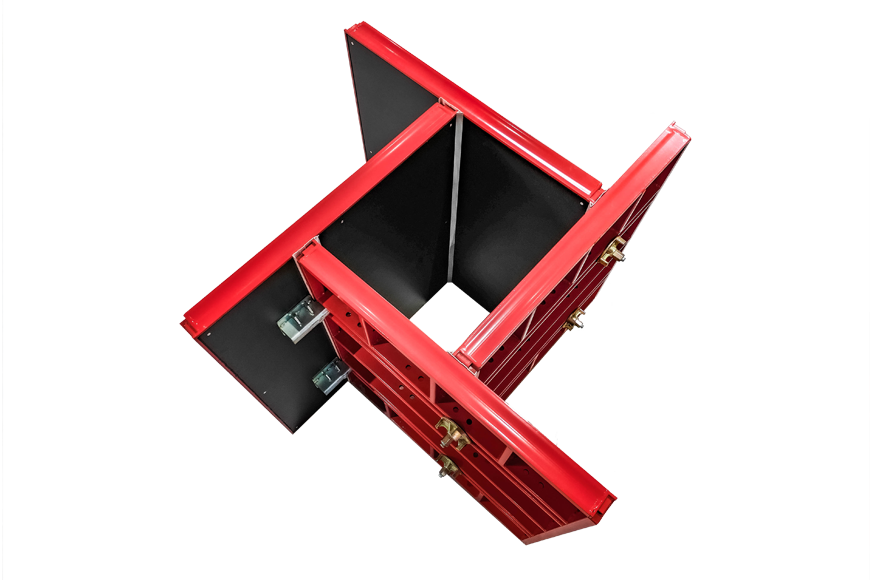

TECON Adjustable HETO Frame Column Formwork
One panel fits hundreds of column sizes maximizing versatility with minimal components.

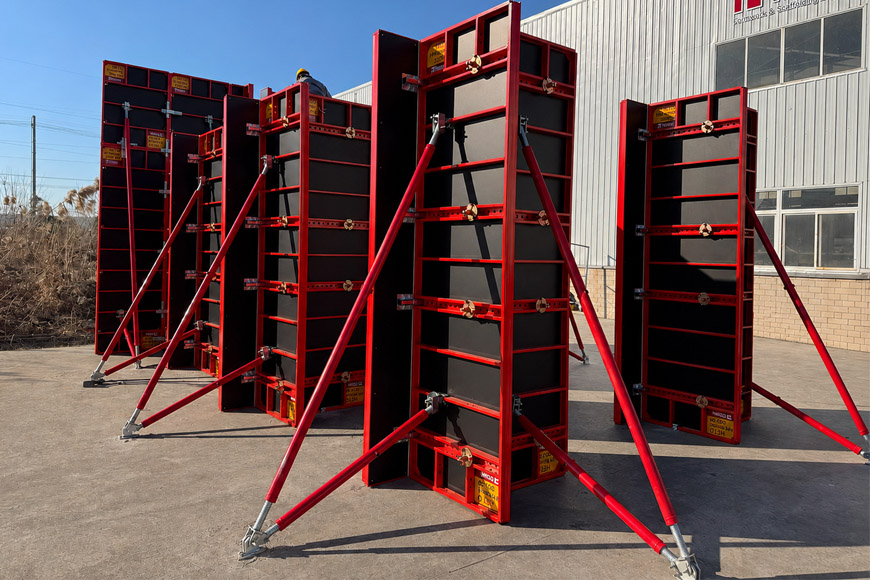

TECON Adjustable HETO Frame Column Formwork is an efficient and reliable solution, featuring robust steel-framed HM panels, dedicated column couplers, and adjustable struts for stable and precise column forming. Its adjustable design allows dozens of column sizes to be formed with a single HM panel set, maximizing reuse and reducing site labor.
Features & Benefits
Adjustable HETO Frame Column Formwork Features and Benefits
- Universal connection system – One column clamp works for all panel connections, simplifying assembly.
- Easy to clean – High-temperature powder-coated frame ensures easy cleaning and long-lasting performance.
- Adjustable Column Formwork Panels – HM panels fit over a hundreds rectangular column sizes in 50 mm increments.
- TECON Film-Faced Birch Plywood – Durable and replaceable, designed for 30–50 uses, delivers a smooth and flawless concrete surface after dismantling.
- Standard usage – Suitable for most column sizes, it can also be used for wall structures, offering greater versatility and flexibility on site.
Technical Specifications
Adjustable HETO Frame Column Formwork Technical Specifications
| System Type | Steel Panel Column Formwork |
| Material | Q355 Steel Profile |
| Dimensions | HM Panel heights: 3.0, 2.4, 1.5, 1.2 m Panel Widths: 0.9, 0.75, 0.5, 0.35 m |
| Panel Weight | 40 kg/m2 |
| Max Panel Size | 3*0.9 m |
| Panel Depth | 73 mm |
| Max Permissible Fresh Concrete Pressure | 80 kN/m2 |
| Column Size | From 200 × 200 mm to 750 × 750 mm with 50
mm increments |
| Installation Time | 100 m2/2 person/day |
| Formlining | 15 mm TECON-Form birch plywood (12 mm option available*) |
| Connection Technology | Column Couplers |
| Handling Method | Tower Crane |
| Load Quantity | Around 45 sets per 40HQ container (with 3 × 0.9 m panels and accessories) |
Adjustable HETO Frame Column Formwork 3D Assembly Tutorial
