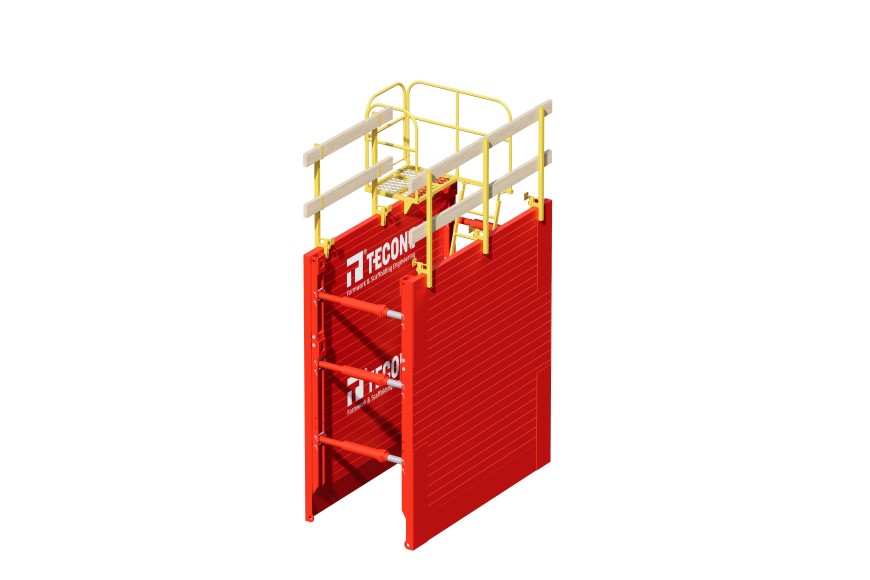

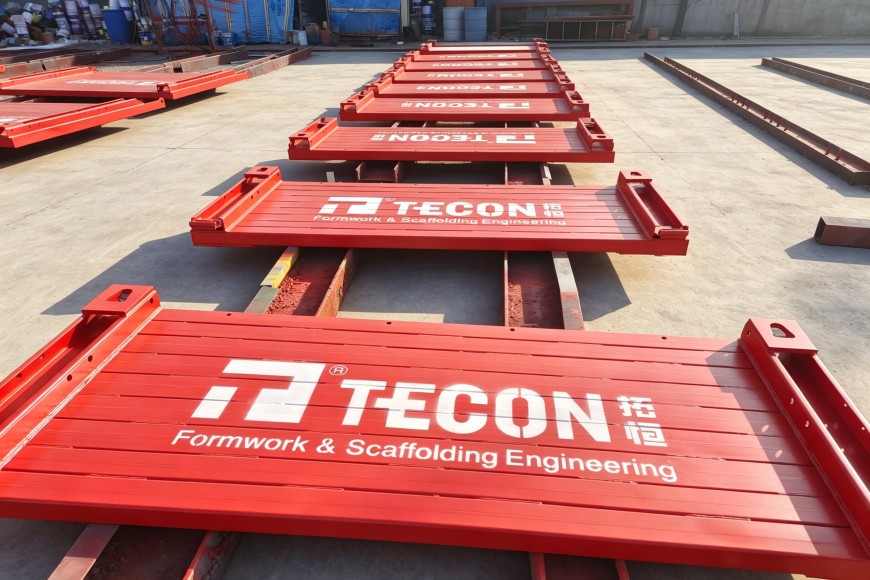

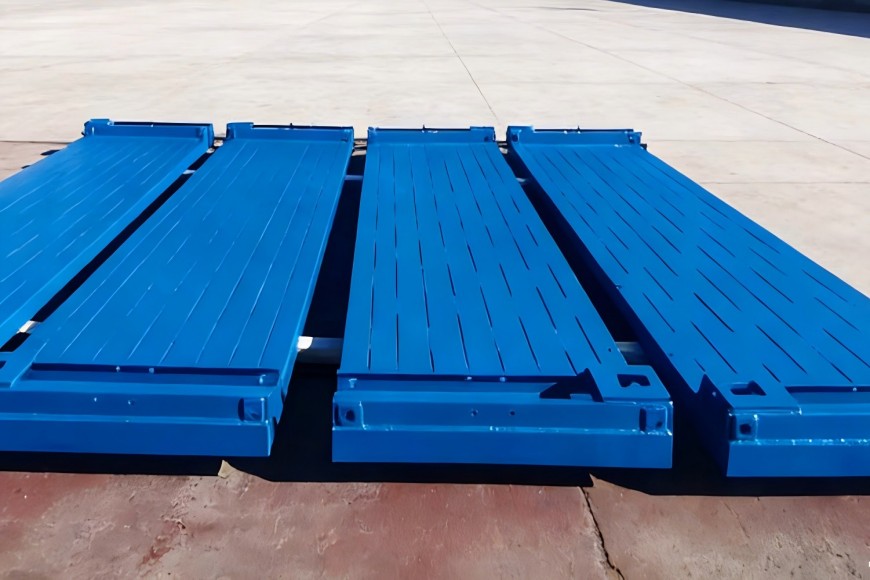

TECON Trench box
A fast, safe, and versatile system for stable and efficient trench excavation
TECON Trench Box is a prefabricated edge support system designed to secure trench excavations and prevent soil collapse. It offers a reliable protective barrier that ensures safe working conditions during underground utility and pipeline construction. With its strong, stable structure, the Trench Box meets the safety and performance requirements of modern excavation work.
Features & Benefits
Trench Box Features and Benefits
- Simple Operation – Three-component design enables quick, safe assembly and removal, significantly improving on-site trenching efficiency.
- Reliable Safety Protection – Provides essential edge protection to prevent collapses and ensure a secure working environment for personnel in trenches.
- Consistent Stability – Maintains surrounding soil and underground structure integrity, creating a stable excavation condition even in demanding sites.
- Accurate Excavation Control – Supports precise measurement and volume estimation, helping optimize resource planning and overall construction efficiency.
- Versatile Trenching Solution – Suitable for foundations, pipelines, municipal works, and road projects, offering flexible and efficient support across various trench applications.
Trench box Application
Foundations; utility installations; pipeline construction; road building and repair; municipal infrastructure works
Technical Specifications
Trench Box Technical Specifications
| System Type | Construction Tool |
| Weight | 135 kg/m2 |
| Max Support Depth | 8 m |

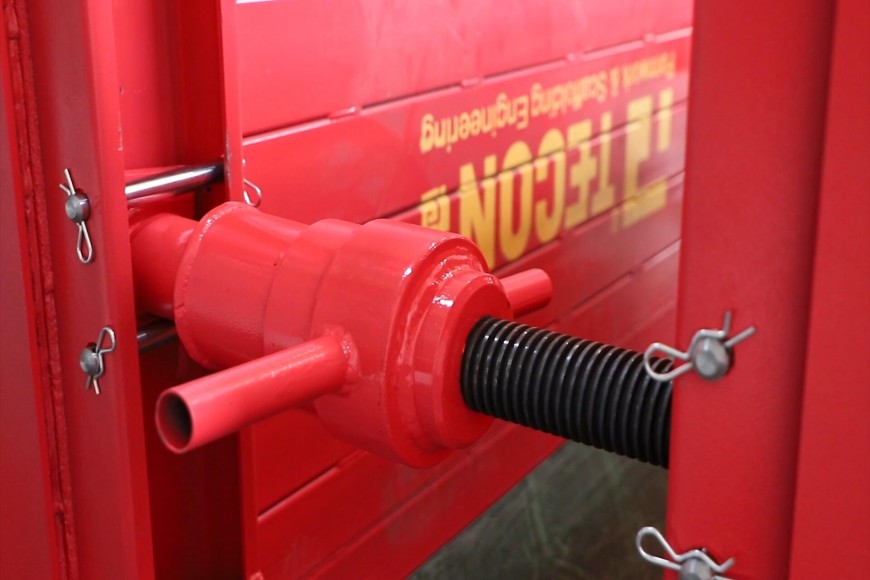

| Max Support Width | 2 m, extendable with extension tube |
| Permissible Bearing Capacity | 27 (at least) kN/m2 |
| Load Quantity | 180 m2 per 40 OT (with accessories) |
