V-shore Frame

SHARE:

V-Shore Frame Scaffolding is a high load conventional shoring system consisting of three major components: frames, cross braces, top & base jacks. This simple combination offers site-ready easy erection and dismantle. All the materials can be stacked and stored in order. The V-shore frame has wide application in multiplex projects.


V-SHORE FRAME，five different heights, 914mm, 1219mm, 1524mm, 1829mm and 2130mm
V-SHORE FRAME，five different heights, 914mm, 1219mm, 1524mm, 1829mm and 2130mm
  • V-SHORE FRAME，five different heights, 914mm, 1219mm, 1524mm, 1829mm and 2130mm

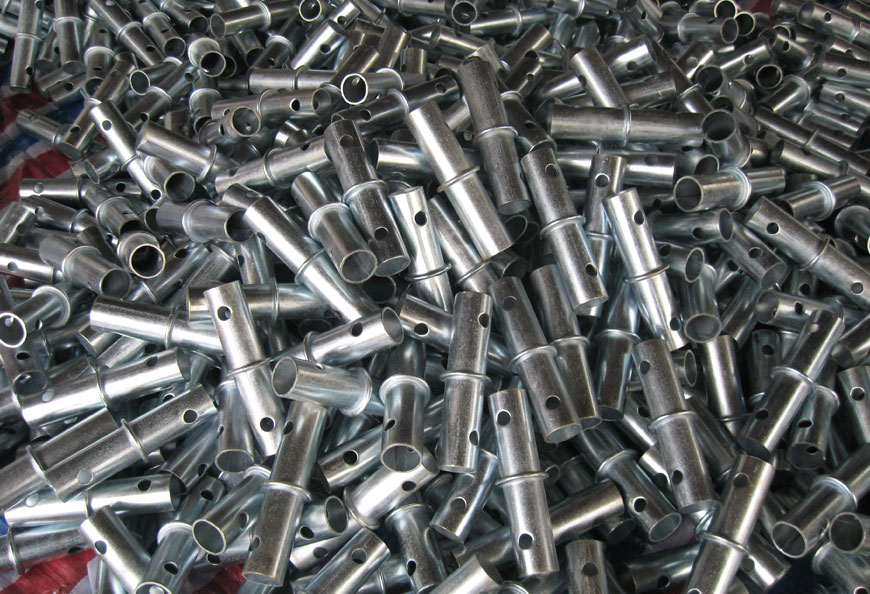

  • Connectors to join frames together into different height
  • Well packed Base Jacks in the container

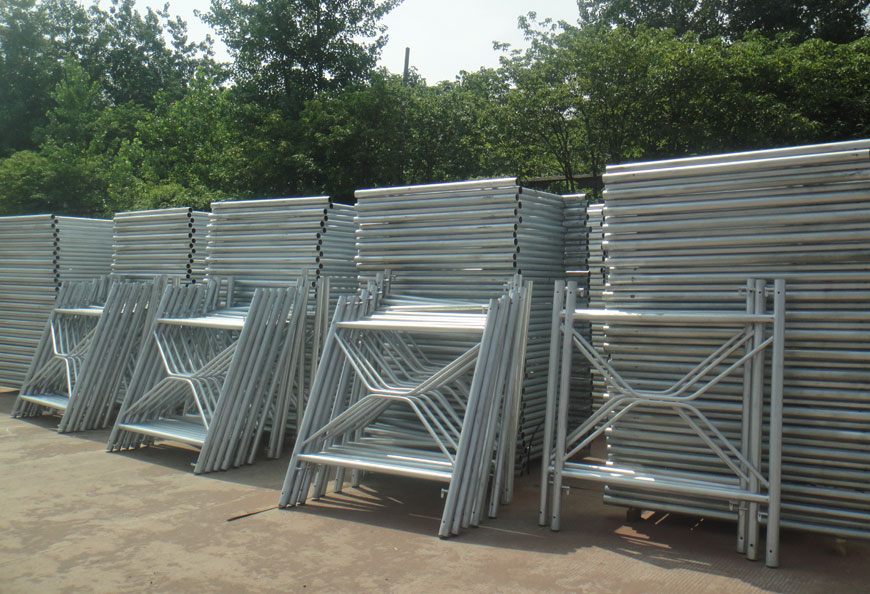

  • V-shore frames waiting for package
GET A QUOTE

Features of V-shore Frame

  • Less maintenance in the future application.

  • Easy and compact for transportation and storage.

  • Can reach different shoring heights by the combination of different size frames.

  • Distance between frames can be adjusted with different braces to achieve other loads 35.1kN workload capacity for each leg.


Specification of V-shore Frame

No.

Items

Size

Description

1

V Shore Frame


1219*2130(W*H)

60*3.5-Q345


2

1219*1829 (W*H)

3

1219*1524 (W*H)

4

1219*1219(W*H)

5

1219*914(W*H)

11

Cross Brace

1829*914

Q235 / ø27*1.8

12

1829*1219

13

1524*914

14

1524*1219

15

1219*914

16

1219*1219

17

Fork Head Jack

L=800

Q235 / M50*4 / Cast steel nut

18

Base Jack

L=800

Q235 / M50*4 / Cast steel nut

19

Base Plate

L=150

M50*4

20

Connector #1

/

ø48*3


Application of V-shore Frame

Residential and commercial buildings, bridges, and other heavy slabs or beams.
