TECON Multi-purpose Aluminum Prop TMP
TECON Multi-Purpose Aluminum Prop TMP Series is a high-capacity shoring system manufactured from durable aluminum alloy. Designed with five height configurations and integrated height indication tape, the TMP prop provides efficient, accurate, and reliable support for high shoring and heavy-load construction applications.
Features & Benefits
Multi-purpose Aluminum Prop Features and Benefits
- Fast & Clean Height Adjustment – Self-cleaning thread design ensures smooth adjustment even under concrete residue and harsh site conditions.
- Integrated Safety & Preset Features – Built-in height indication tape and safety stop help prevent over-extension while improving setup efficiency and operational safety.
- Wide Height Adaptability – Five prop models cover working heights from approximately 800 mm to 6,250 mm for flexible project application.
- High Load-Bearing Performance – Engineered to provide reliable support capacity for slab formwork and other heavy-duty structural applications.
- Lightweight Aluminum Construction – Aluminum alloy design reduces handling weight while maintaining high structural strength and corrosion resistance.
Multi-purpose Aluminum Prop Application

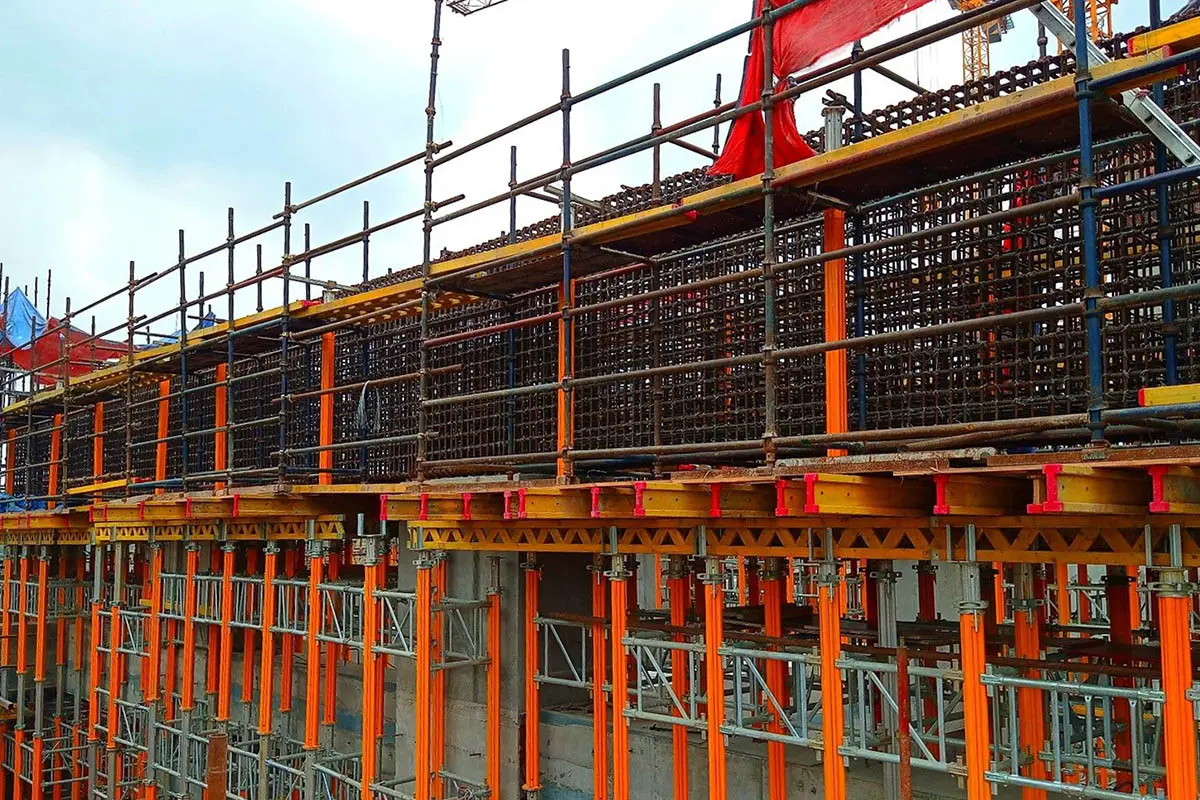

Widely used in slab formwork support, high shoring systems, and heavy-load structural support applications.
Technical Specifications
Multi-purpose Aluminum Prop Technical Specifications
| System Type | Aluminum shoring props | ||
| Material | 6061-T6/6082-T6 aluminum alloy | ||
| Surface Treatment | Powder coated | ||
| Model Type | Adjustable Range | Weight | Load Capacity |
| TMP 120 | 800-1200 mm | 11.3 kg | 70-90 kN |
| TMP 250 | 1450-2500 mm | 16 kg | 60-70 kN |
| TMP 350 | 1950-3500 mm | 20.1 kg | 42-88 kN |
| TMP 480 | 2600-4800 mm | 25.4 kg | 25-85 kN |
| TMP 625 | 4300-6250 mm | 31.8 kg | 20-56 kN |
