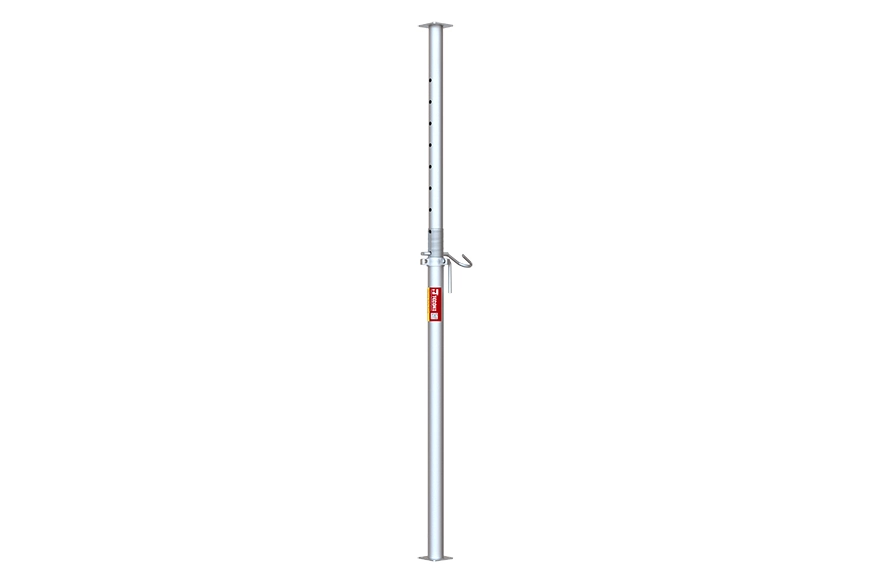

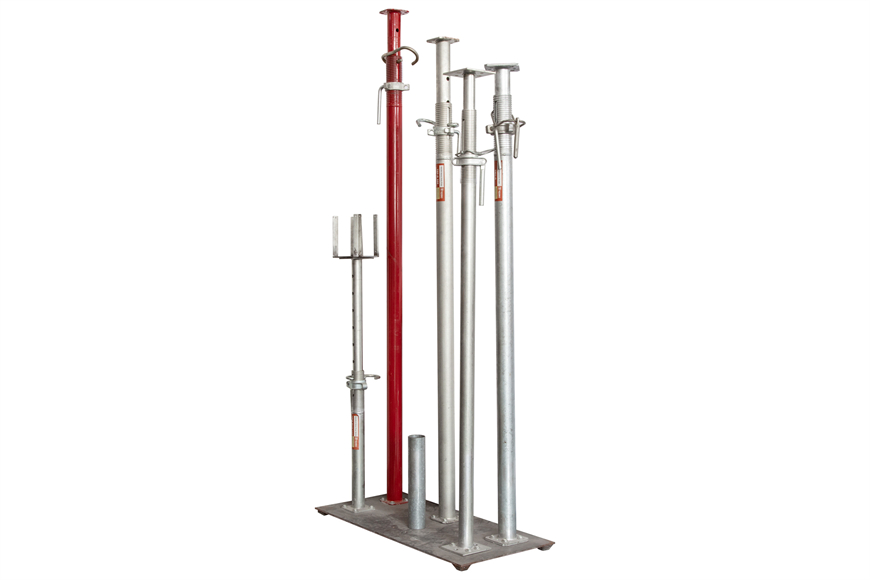

TECON Heavy Duty Steel Prop is the most robust and compatible steel props with high bearing capacity. It comply with EN1065 standards in two series, TEP-D and TEP-E. They have the additional benefit of requiring less because of their high load capacity.
Robust and long service life

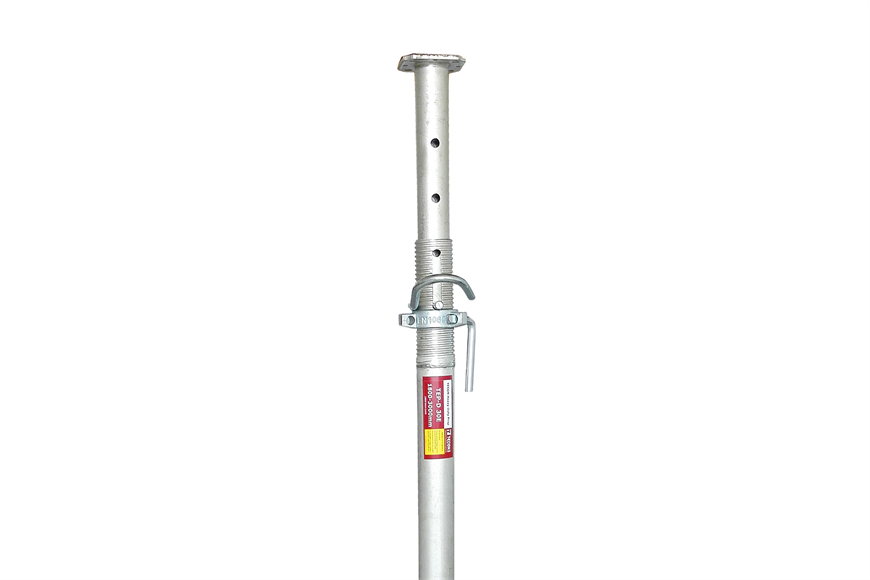

High bearing capacity following EN 1065 standard
Cast steel nut

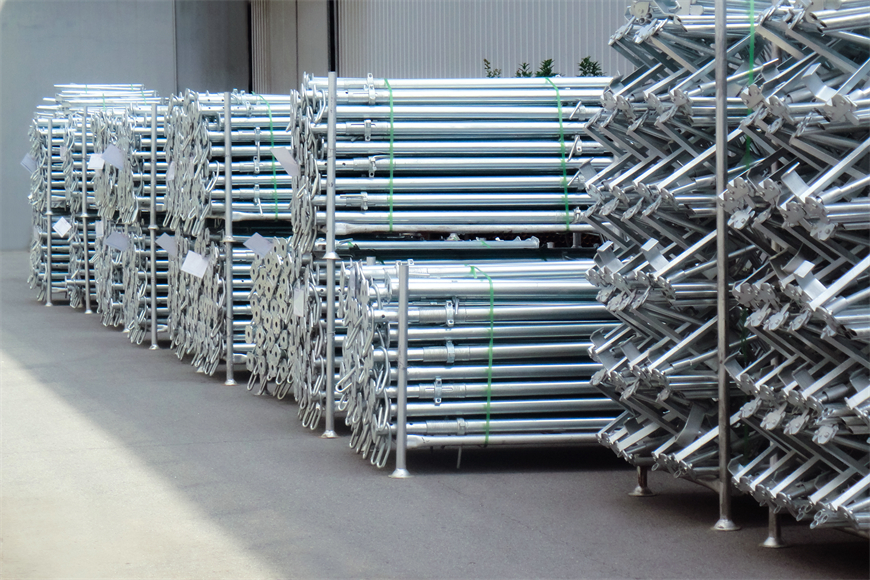

Safe zone prevent hand from harzad Electro galvanization, powder coated and hot-dip galvanization finishing for option
Shoring heights: 2.5/3.0/3.5/4.0/4.5/5.0/5.5 m
1.7 times safety factor within work load
The work load of TEP-D is 20 kN
The work load of TEP-E is 30 kN
Outer Dimension: 76.1/ 63.5 mm
High tensile steel tube Q355
Heavy Duty Prop-D
| Description | Unit | QTY | Unit Price USD | Total Price USD | Unit Weight （KG） | Total Weight （KG） | Remarks |
| Heavy Duty Prop TEP-D 25 | pcs | 0 | 0 | 0 | 15.9 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-D 30 | pcs | 0 | 0 | 0 | 18 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-D 35 | pcs | 0 | 0 | 0 | 20.22 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-D 40 | pcs | 0 | 0 | 0 | 23.43 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-D 45 | pcs | 0 | 0 | 0 | 27.66 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-D 50 | pcs | 0 | 0 | 0 | 33.06 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-D 55 | pcs | 0 | 0 | 0 | 38.7 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Description | Unit | QTY | Unit Price USD | Total Price USD | Unit Weight （KG） | Total Weight （KG） | Remarks |
| Heavy Duty Prop TEP-E 25 | pcs | 0 | 0 | 0 | 17.14 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-E 30 | pcs | 0 | 0 | 0 | 19.35 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-E 35 | pcs | 0 | 0 | 0 | 21.97 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-E 40 | pcs | 0 | 0 | 0 | 29.76 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |
| Heavy Duty Prop TEP-E 45 | pcs | 0 | 0 | 0 | 32.35 | 0 | Powder Coated; S355 Inner tube; Refer to EN1065 norms: |

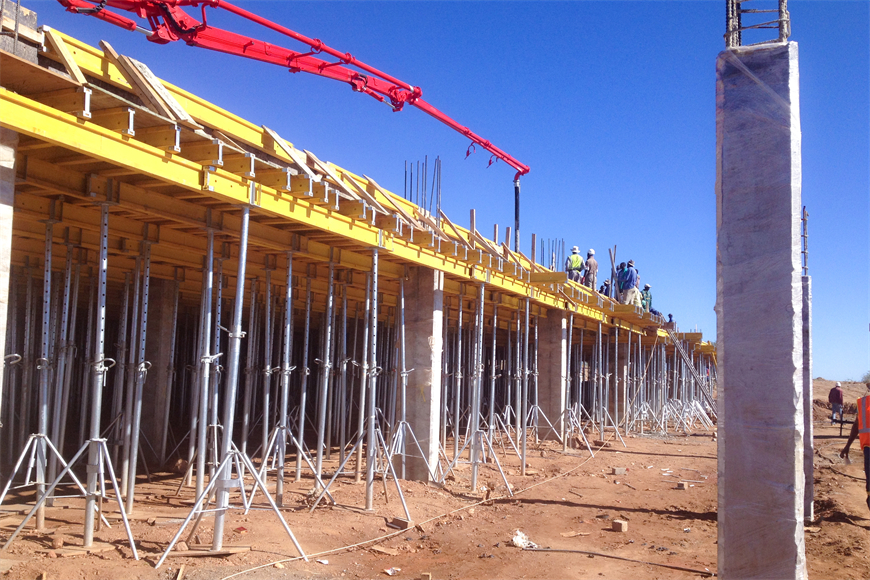

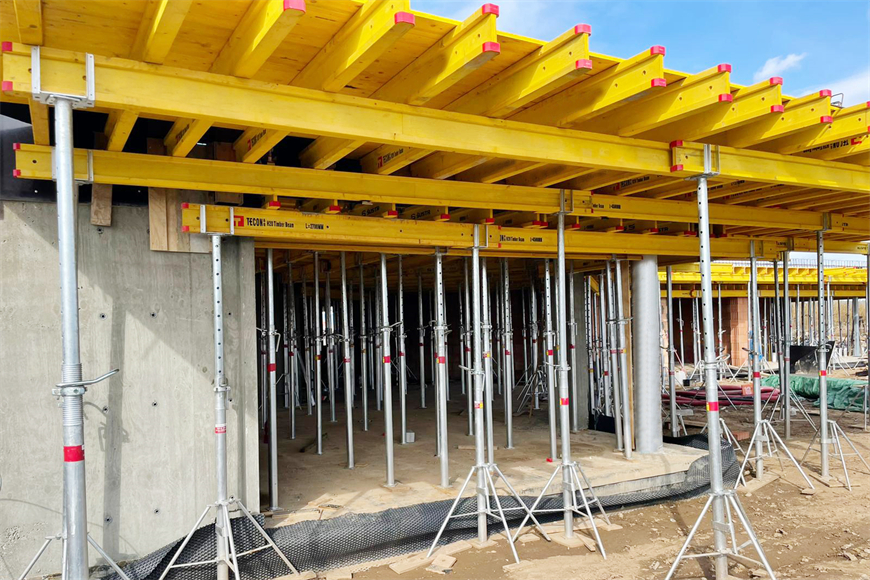

Applied as shoring support in various slab formwork system with high standard
Projects
Coal Storage
Metro Station
Silo Tank
Shanghai Yangzte Bridge
Dam
Subway
Silo Tank
ITC Colombo One Hotel & Residences
Slab Flex 20 Formwork, Guatemala
National Immigration Office
Queens Peak
Diamond Twin Tower
Yujing Center
Olympia City
Jamaica Shopping Center
Jinying Shopping Center
Sheraton Apple One
Bearing Capacity Test, Germany

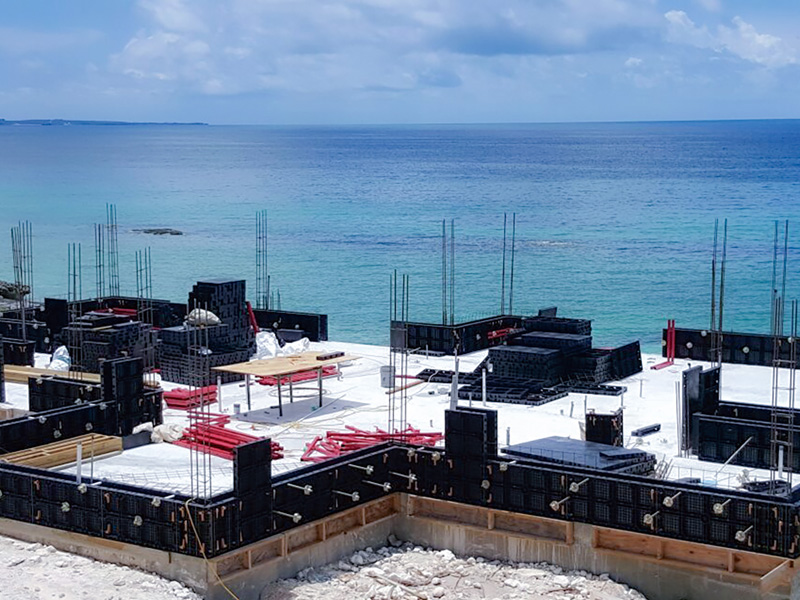

Sea Shore Villa
Housing Project
Apartment
Housing in Mauritius
Housing in Phillipine
Housing in UAE
You can send us your material list to request a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via the below contacts.
Email: info@teconform.com
Phone: +86-512-65650586
Mobile: +86-13862020161.
By T/T or L/C.
For climbing formwork, self-climbing platform, plastic formwork, we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.
For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.
For other systems, the lead time is from 30 to 45 days.
For a more accurate lead time, don't hesitate to contact us for a specific product based on your quantity.
