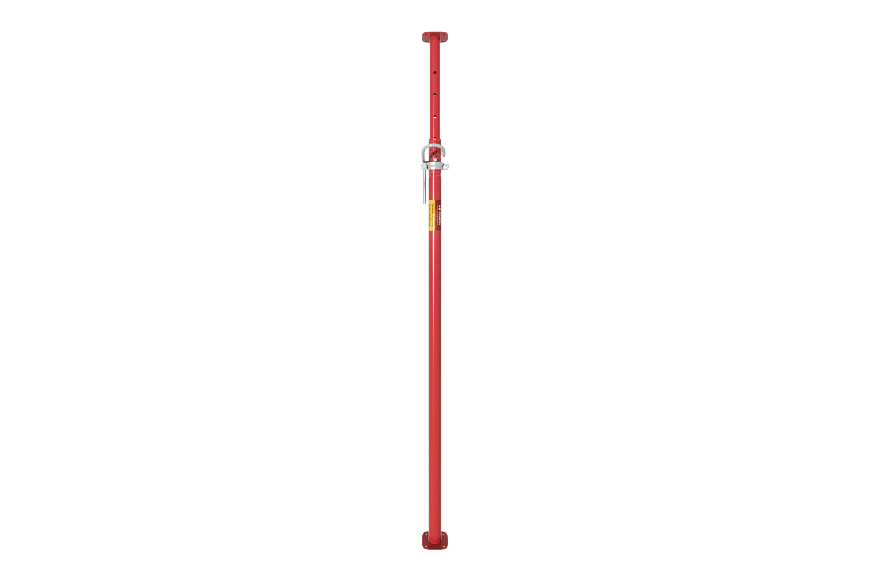

TECON Medium Duty Prop
TECON Medium Duty Props are robust, adjustable steel supports designed for temporary shoring of concrete slabs, beams, and formwork. They provide reliable support for residential and light commercial projects, comply with EN 1065, and are highly versatile for various standard slab formwork applications.
Features & Benefits
Medium Duty Prop Features and Benefits
- 20 kN Load Capacity – Suitable for slab, beam and renovation support works.
- High-Strength Steel Structure – Telescopic steel tube design ensures durability and repeated reuse.

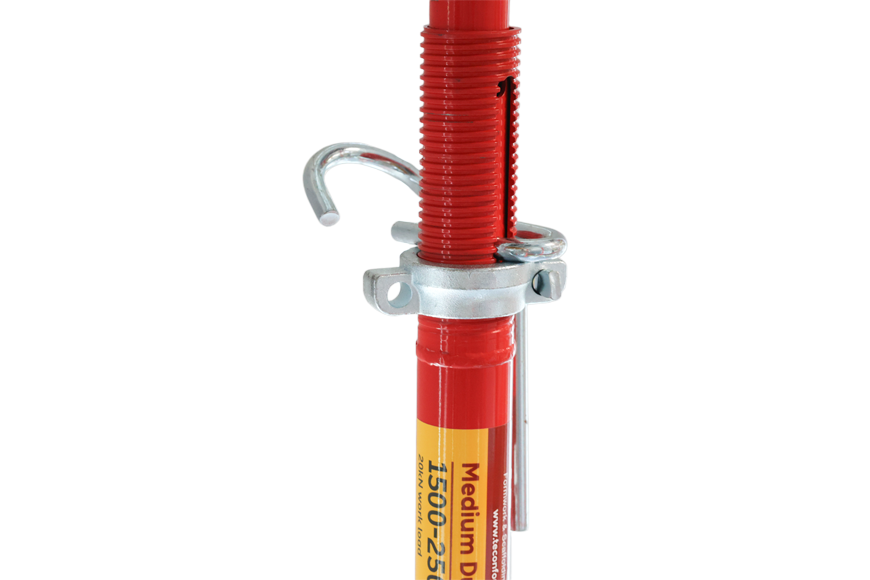

- Flexible Height Adjustment – Pin-hole and threaded adjustment allow fast setup and precise leveling.
- Stable & Safe Support – Reinforced plates and secure locking system ensure reliable load transfer.
- Optional Surface Finishes– Available in powder-coated, zinc-coated, or galvanized finishes.
Medium Duty Prop Application

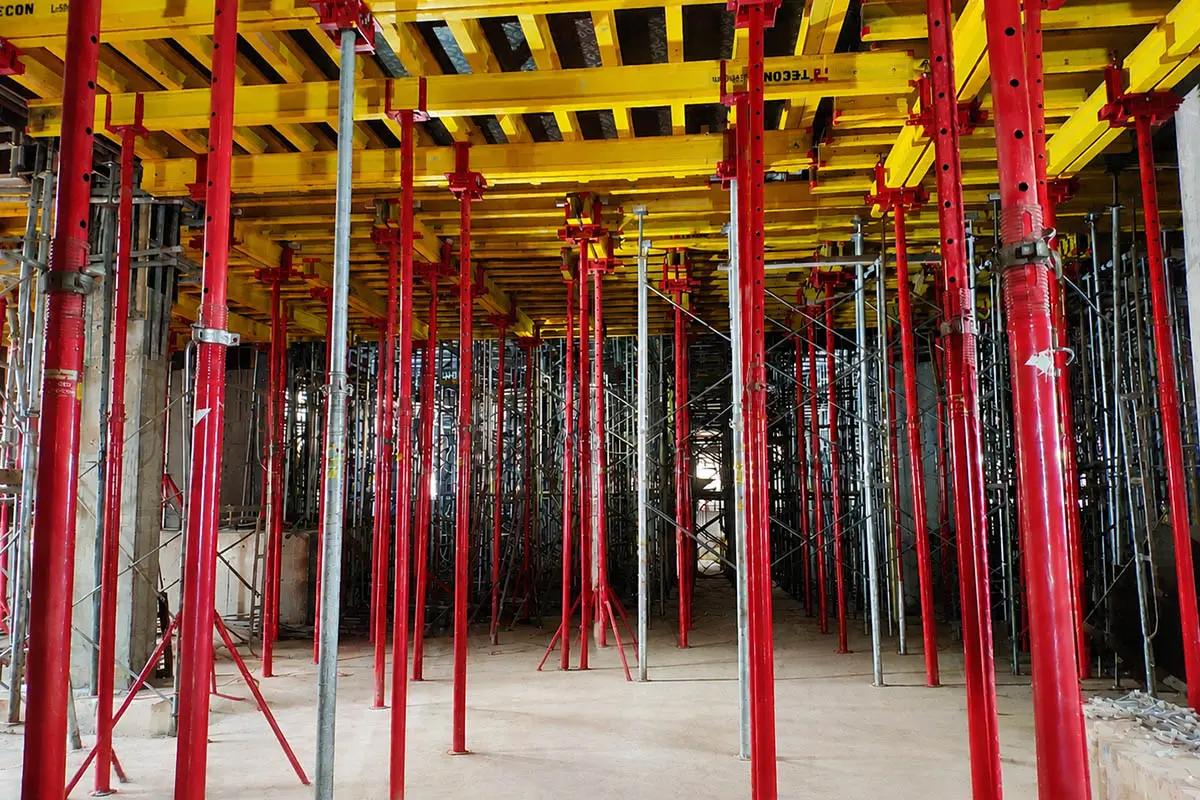

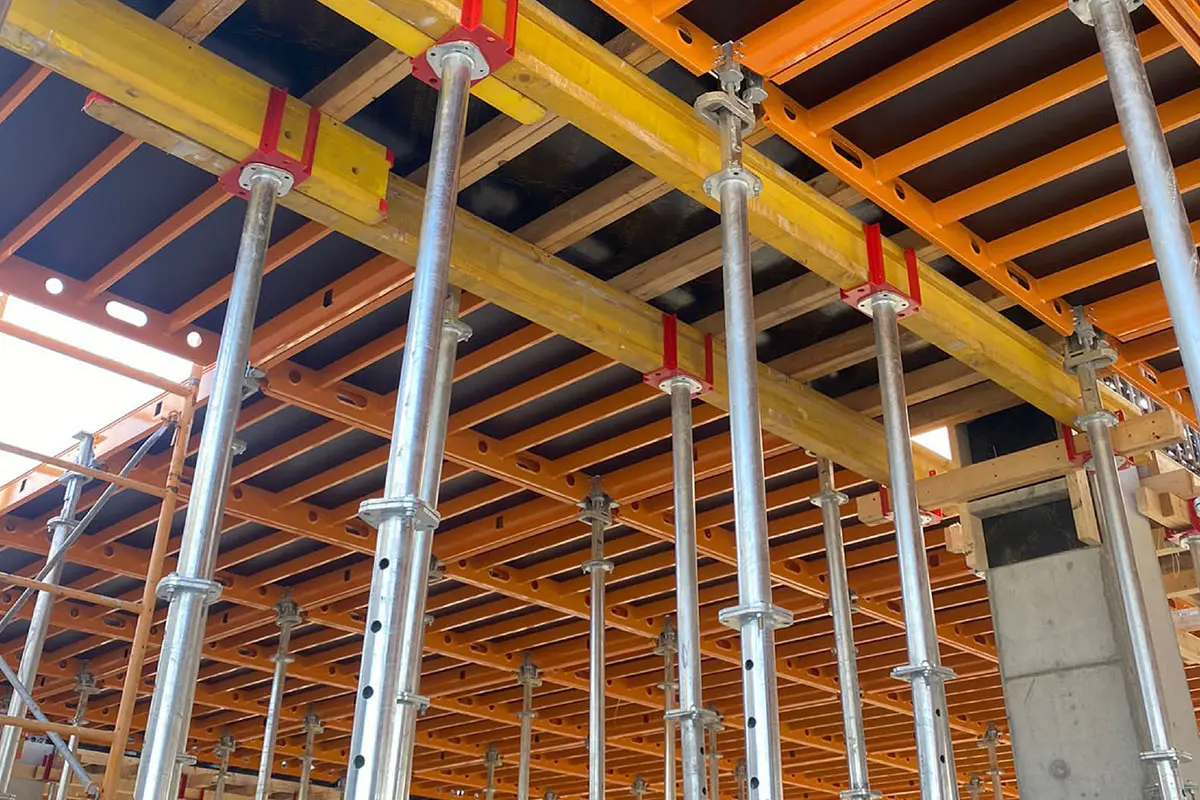

Widely used in slab, beam, as well as masonry, general construction shoring applications.
Technical Specifications
Medium Duty Prop Technical Specifications
| System Type | Steel shoring props | |
| Load Capacity | 20 kN | |
| Diameter | Ø60/48 mm | |
| Surface Treatment | Powder Coated | |
| Model Type | Adjustable Range | Weight |
| Medium Duty Prop 25 | 1500-2500 mm | 12.64 kg |
| Medium Duty Prop 30 | 1750-3000 mm | 14.52 kg |
| Medium Duty Prop 35 | 2000-3500 mm | 16.38 kg |
| Medium Duty Prop 40 | 2250-4000 mm | 19.23 kg |
| Medium Duty Prop 45 | 2500-4500 mm | 21.19 kg |
