Aluminium I Beam

SHARE:

TECON Aluminium Beam is developed in eight types of H beam, which can be used as primary and secondary beams during construction. Its high strength and lightweight makes the aluminium beam increasingly popular for multiple projects.


Different Types of Aluminium I Beam
Different Types of Aluminium I Beam

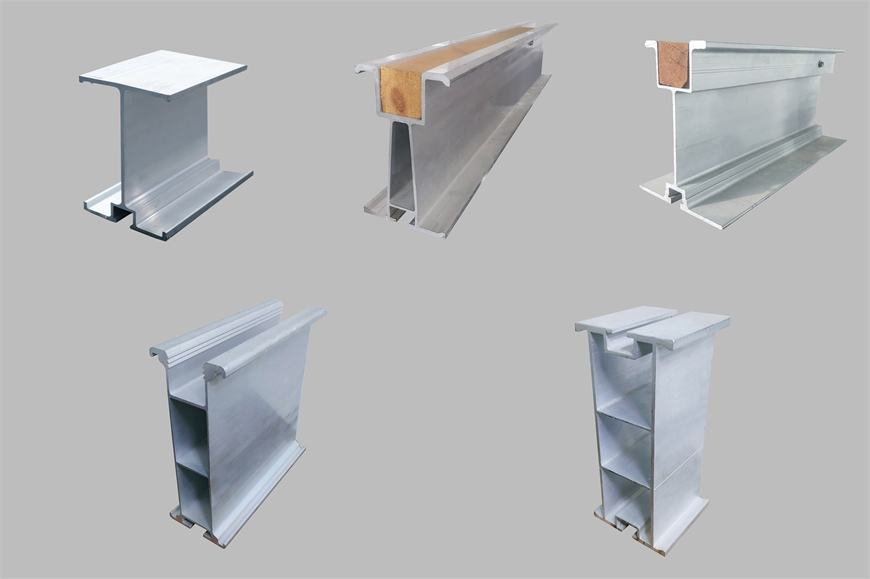

  • Different Types of Aluminium I Beam

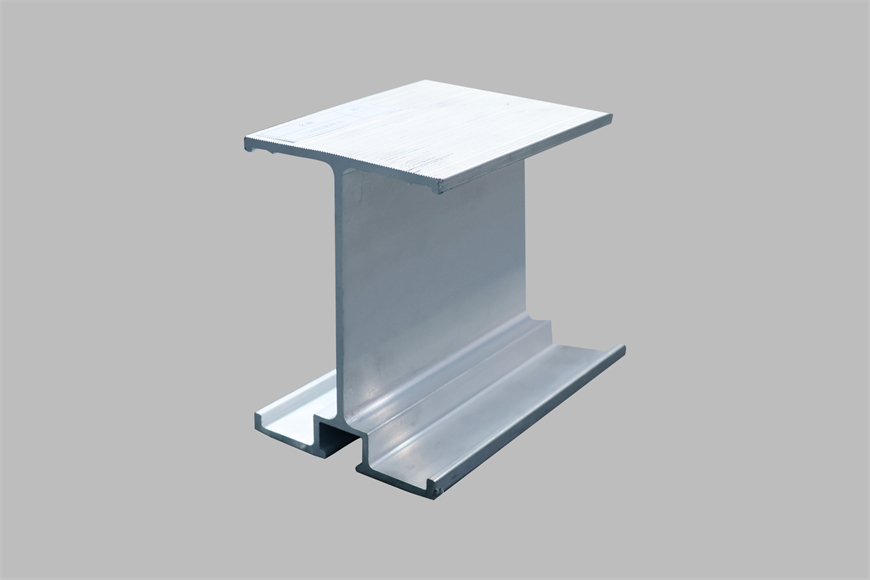

  • TECON Aluminium I Beam T120

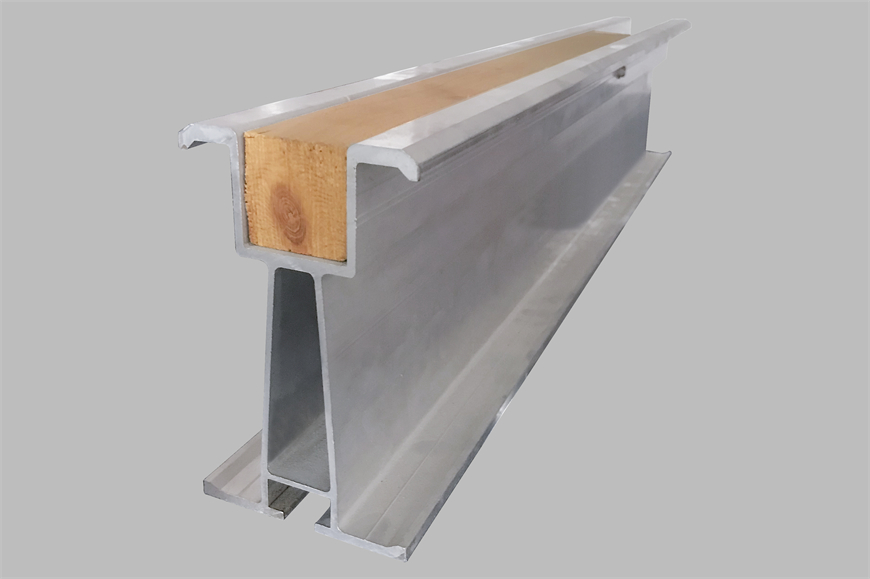

  • TECON Aluminium I Beam T150
  • TECON Aluminium I Beam T165

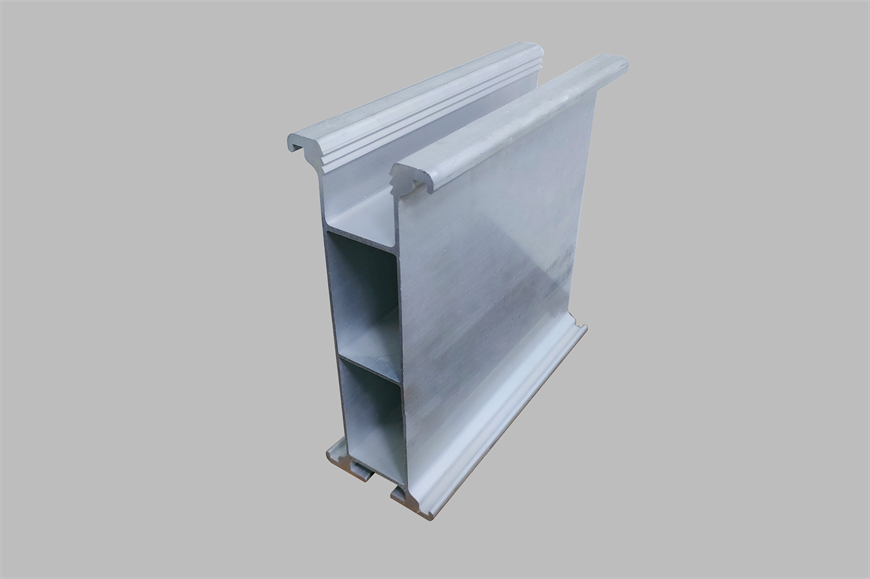

  • TECON Aluminium I Beam T200

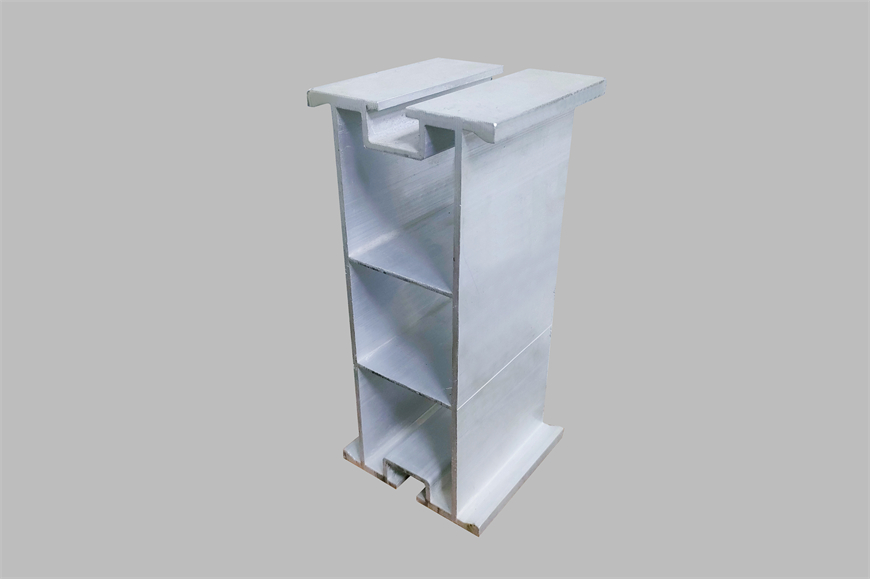

  • TECON Aluminium I Beam T225
  • The Element of Aluminium I Beam

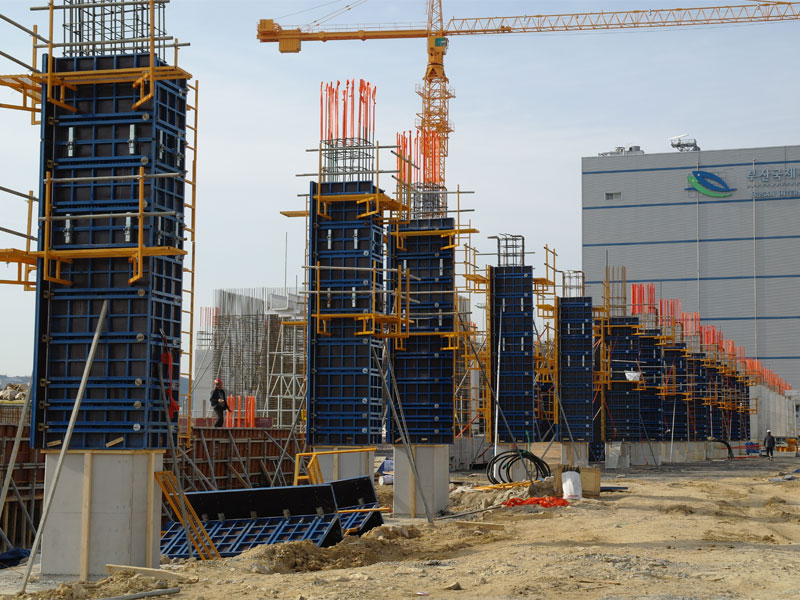

  • Aluminuim I Beam in Column Formwork Application

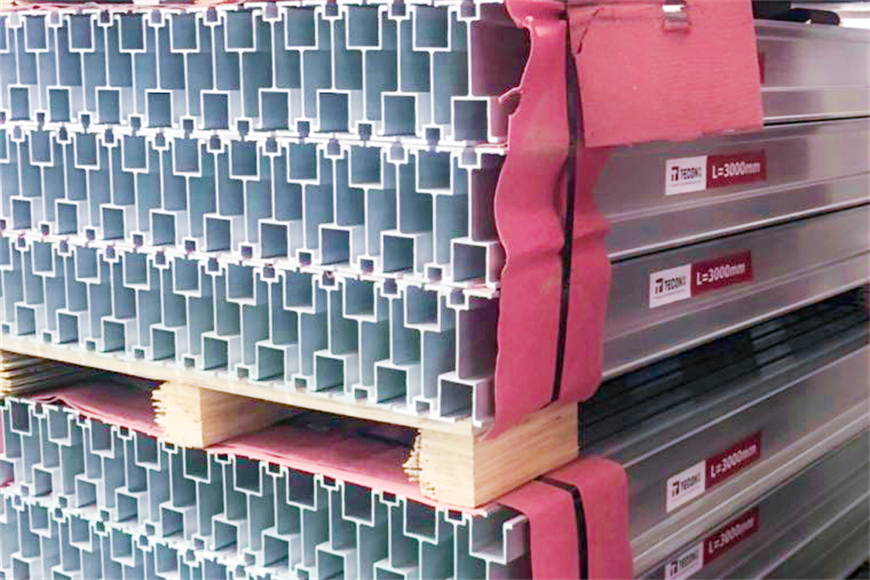

  • Packed Aluminium I Beam Ready for Shipment
  • Packed Aluminium I Beam
  • Aluminium I Beam After Installation
GET A QUOTE

Features of Aluminium I Beam

  • Long life service and lightweight.

  • Multiple applications in most system formwork.

  • Higher strength-to-weight ratio than steel or wood.

  • Wood or rubber filler ensures compatibility with plywood.


Specification of Aluminium I Beam

SectionDescriptionSizeMaterialUnit weight
Aluminum Beam T114Aluminum Beam T114Width:85mm; Height:114mm6005-T5/6061-T52.6
Aluminum Beam T120Aluminum Beam T120Width:85mm; Height:120mm6005-T5/6061-T52.9
Aluminum Beam T123Aluminum Beam T123Top Width:60mm; Bottom: Width:75mm Height:123mm6005-T5/6061-T52.5
Aluminum Beam T140Aluminum Beam T140Top Width:65mm; Bottom: Width:85mm Height:140mm6005-T5/6061-T53.3
Aluminum Beam T150Aluminum Beam T150Width: 90mm; Height:150mm6005-T5/6061-T54.4
Aluminum Beam T165Aluminum Beam T165Top Width: 81mm; Bottom: Width:127mm Height:165mm6005-T5/6061-T54.5
Aluminum Beam T200Aluminum Beam T200Width:76mm; Height:200mm6005-T5/6061-T55.1
Aluminum Beam T225Aluminum Beam T225Width:100mm; Height:165mm6005-T5/6061-T58.3



Application of Aluminium I Beam

As primary and secondary girder of the shear wall, slab and column formwork.


Related Product of Aluminium I Beam

H20 timber beam

Heavy Duty Steel Prop

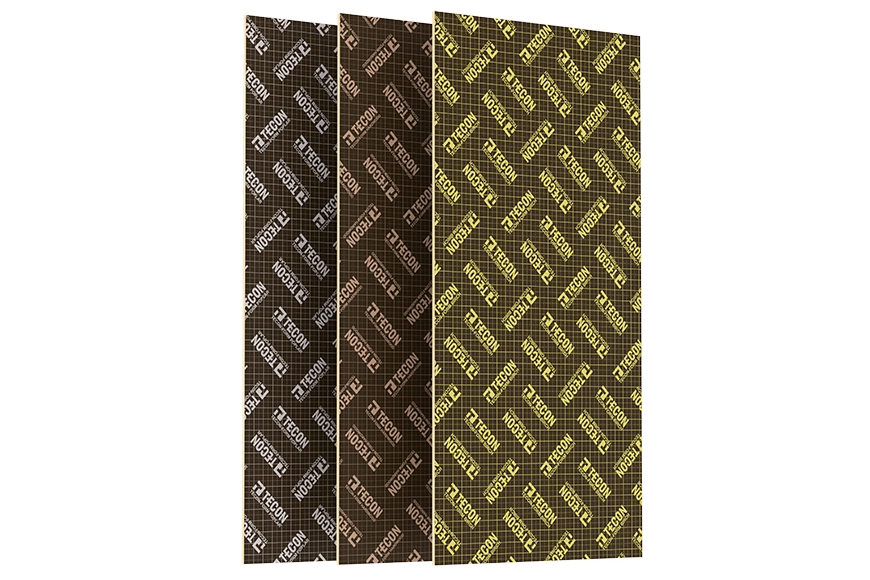

TECON-Formwork Film Faced Plywood


Other Formwork Products You May Also Like
Projects Projects
Latest News
FAQ
  • Q
    How to get a quotation?

    You can send us your material list to request a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via the below contacts.


    Email: info@teconform.com

    Phone: +86-512-65650586

    Mobile: +86-13862020161.

  • Q
    What is the payment term?

    By T/T or L/C.

  • Q
    What is the lead time?

    For climbing formwork, self-climbing platform, plastic formwork, we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.


    For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.


    For other systems, the lead time is from 30 to 45 days.


    For a more accurate lead time, don't hesitate to contact us for a specific product based on your quantity.
