H20 Timber Beam

SHARE:

TECON H20 timber beam is mainly made from spruce imported from North Europe. With high load capacity, TECON H20 timber beam is widely used in most of the girder-based formwork systems, such as shear wall formwork, slab formwork, column formwork etc.

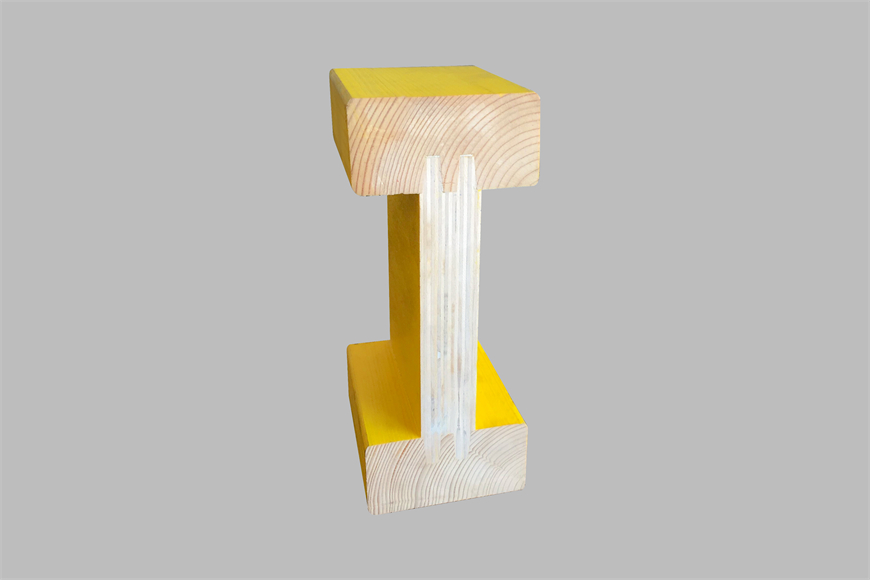

TECON H20 Timber Beam Section, made from North Europe spruce as flange.
TECON H20 Timber Beam Section, made from North Europe spruce as flange.
  • TECON H20 Timber Beam Section, made from North Europe spruce as flange.

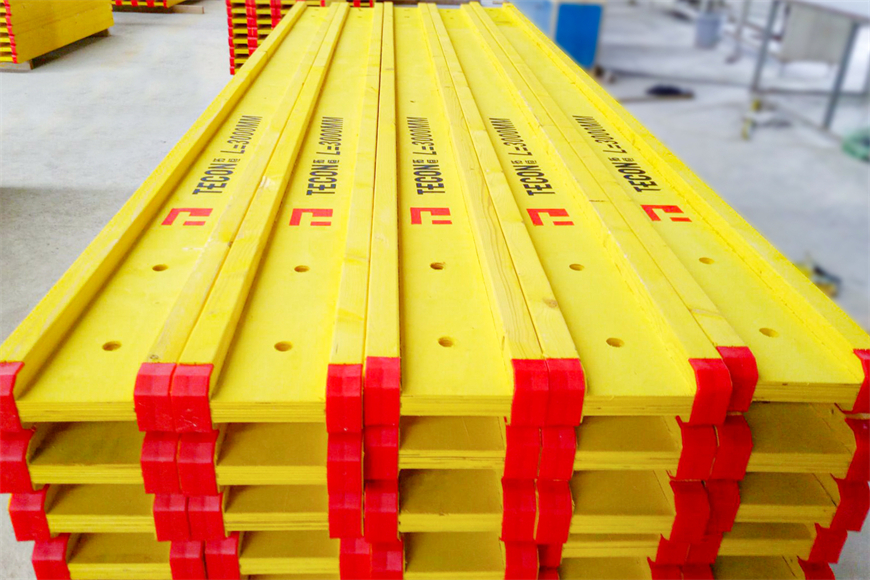

  • Plastic protection cap

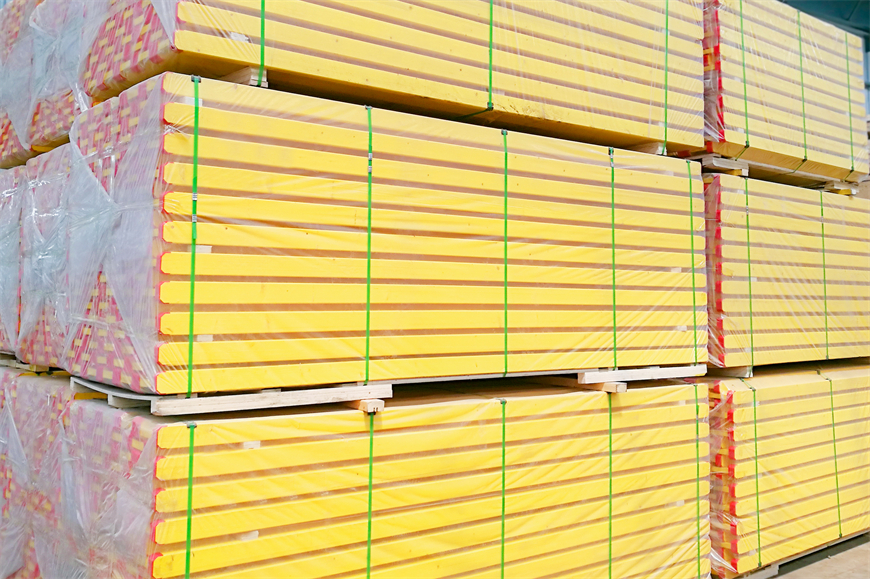

  • Package ready for shipment
  • Loading in the container pallet by pallet

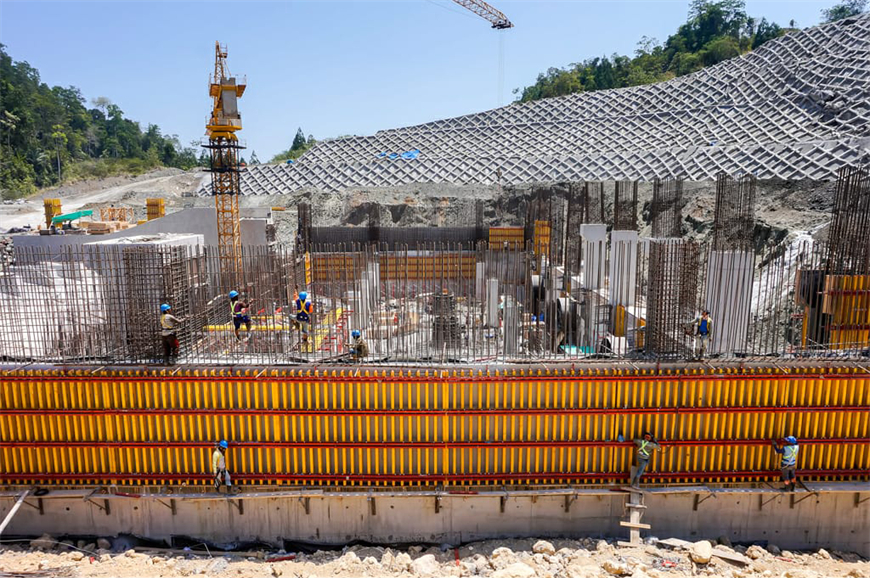

  • Wall formwork application in BASE 20

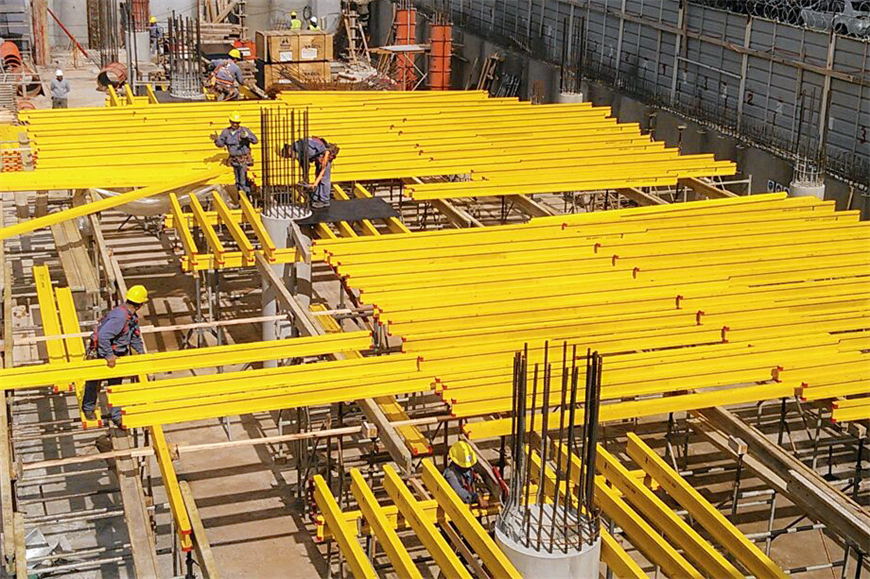

  • Slab formwork application in Slab Flex 20

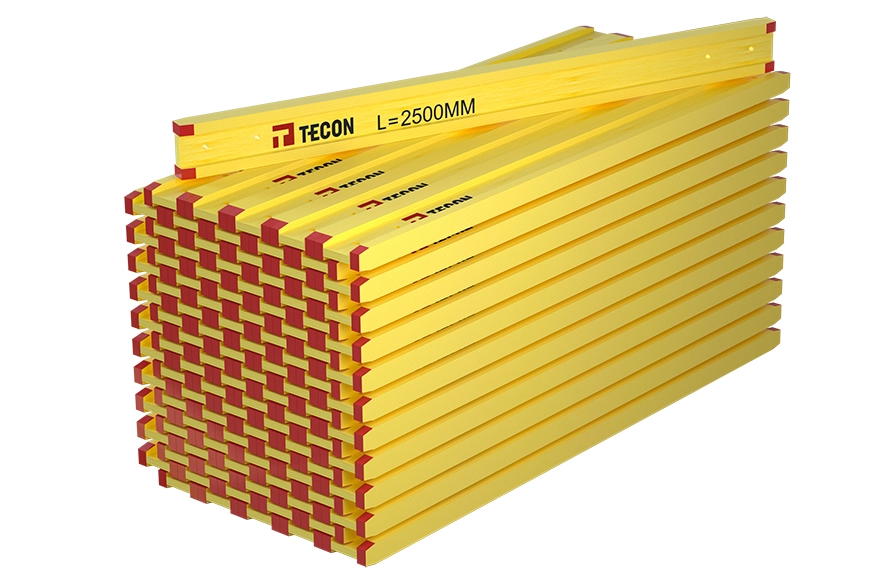

  • H20 Timber Beam
  • H20 Timber Beam
GET A QUOTE

Features of H20 Timber Beam

  • Spruce grown in extremely cold region ensures high bearing capacity of timber beam

  • End protection with plastic cap reduces damage and increases service life

  • Any length less or equals 6 meters can be customized

  • Yellow waterproof painting


Specification of H20 Timber Beam

Flange: Imported solid wood spruce from North Europe

Web: Poplar core plywood

Glue: WBP glue

Weight: around 4.5kg/m

Shear Resistance 11KN, Bending Resistance 5KN

Available length(m): 1.5,1.9,2.45,2.75,2.90,3.00,3.30,3.60,3.90,4.50,4.90,5.90 etc. or customized

Wood moisture: 12% +/- 4% at delivery

Package units: 105 pieces per pallet


Application of H20 Timber Beam

Work as main beam and secondary beam in shear wall, slab, column formwork etc..


Related Product of H20 Timber Beam

Aluminium I Beam, Base20 formwork, Slab table formwork

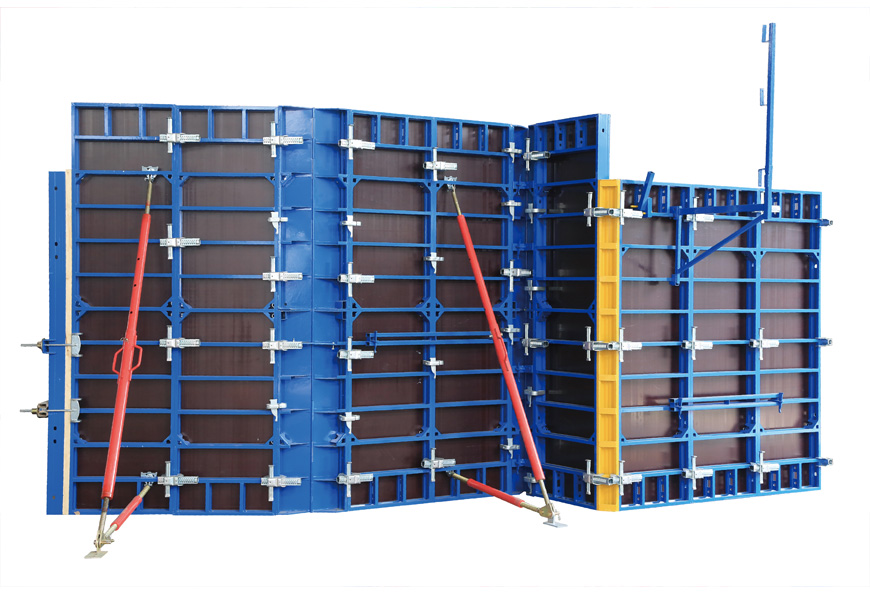

Other Formwork Products You May Also Like
