TECON 3 in 1 Foam Concrete Machine

SHARE:

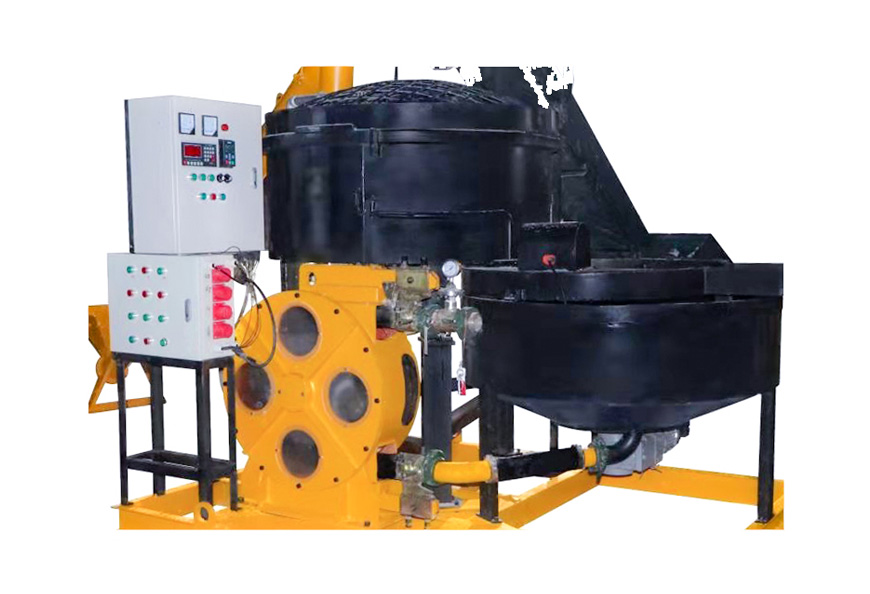

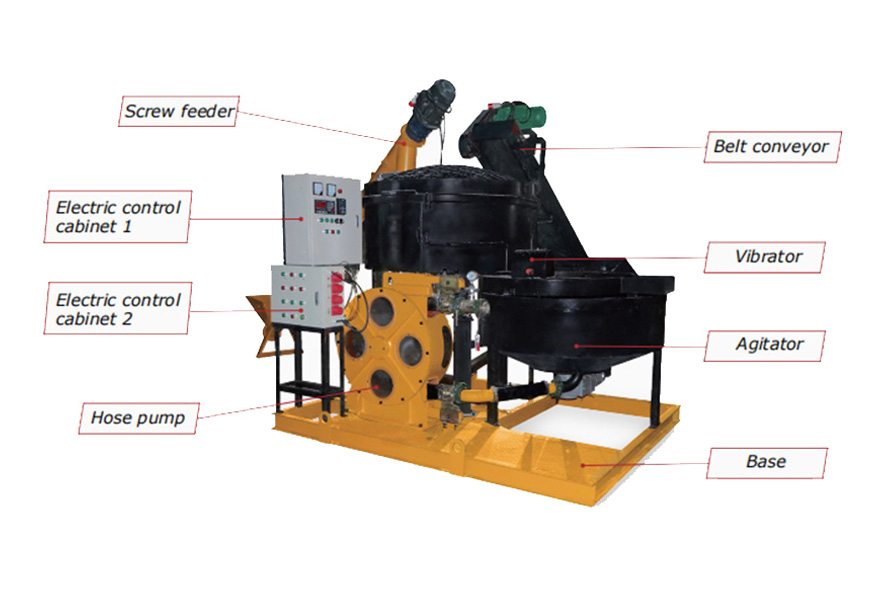

TECON 3 in 1 foam concrete machine TFC-1000 is composed of mixer, agitator, foam generator, hose pump, equipped with screw feeder, belt conveyor and submersible pump. The equipment is equipped with a weighing sensor and automatic batching system, which can set each batching weight and realize automatic feeding and full mixing.

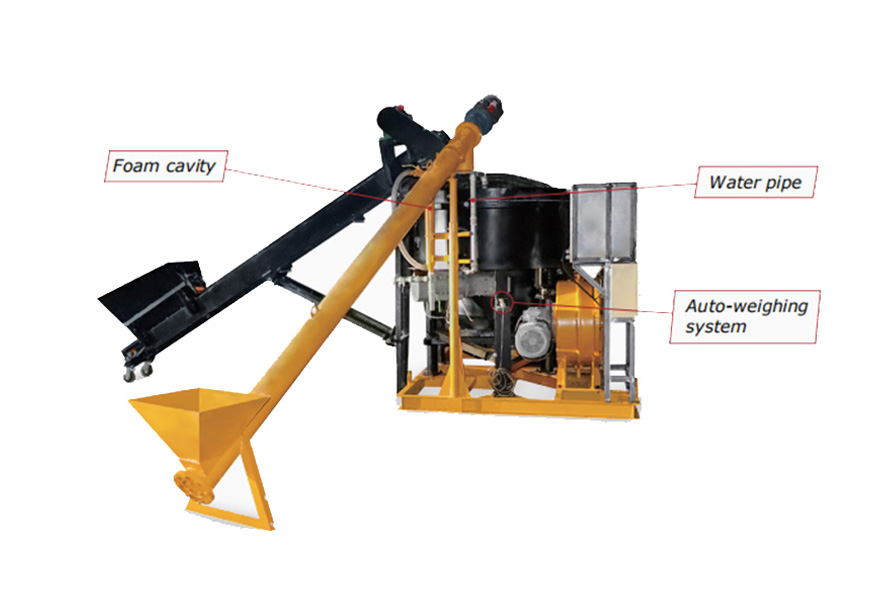

Product Shows


Features

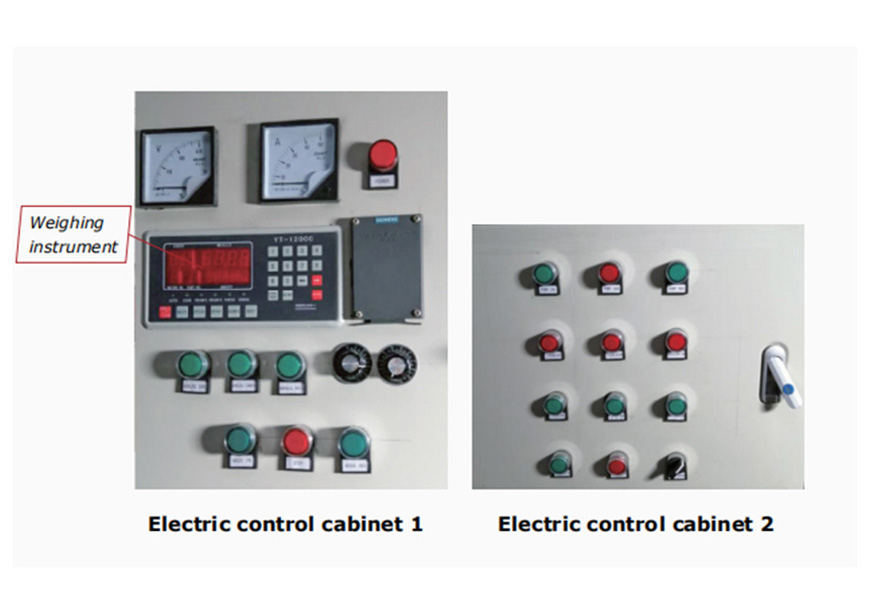

· Automatic control and weight cell loading; material weight mixing ratio precise, simple operation, saving labor, great reliability;

· Heavy duty and powerful mixer, easily to mix sand, cement, water and foam agent, as well as high efficiency to achieve continuous mixing and continuous work;

· Up to 20bar high pumping pressure to meet high floor pumping requirement;

· Foam agent can be added into the mixer continuously, high working efficiency.


Application

The process is completely controlled by the auto-weighing system. After the preparation work is completed, press the automatic button to start the automatic working. The mixer is started to mixing. Sand, cement, water and foaming agent are loaded in turn and mixed quickly after reaching the set weight. After the mixing is even, open the discharge door. The mixture flow down into the lower screen of the agitator. The low speed mixing blades are equipped in this agitator. After the mixture completely flow down, close the door and continue the next batch mixing.


Packaging & Shipping

Woven bags + steel pallet
Strong and high pallets to avoid damage by fork lift, more steelstraps and thick plywoodpacking to protect materials inside and avoid damage during the shipment


Shipping

We have professional document and shipping department to provide the best service.


Pictures of packaging & Shipping



Latest News
FAQ
  • Q
    1. How to get a quotation?

    You can send us your material list to request for a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via below contacts.


    Email: info@teconform.com

    Phone: +86-512-65650586

    Mobile: +86-13862020161.


  • Q
    2. What is the payment term?

    By T/T or L/C.


  • Q
    3. What is the lead time?

    For climbing formwork, self-climbing platform, plastic formwork we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.

    For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.

    For other system, the lead time is from 30 to 45 days.

    For more accurate lead time, please contact us for specific product based on your quantity.
