TECON HETO Frame Wall Formwork

SHARE:

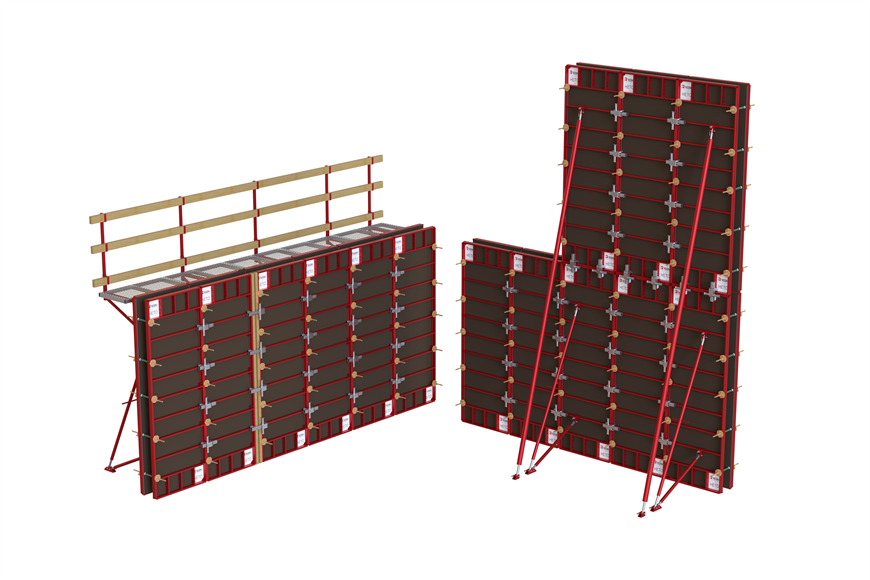

TECON HETO formwork is a steel frame panel system lined with 12mm birch film-faced-plywood, universal and high efficient for walls in medium to big scale projects under crane assistance. With the alignment coupler for all panel connections, it ensures very fast site assembly.


Adjustable columnformwork Overview
Adjustable columnformwork Overview
  • Adjustable columnformwork Overview

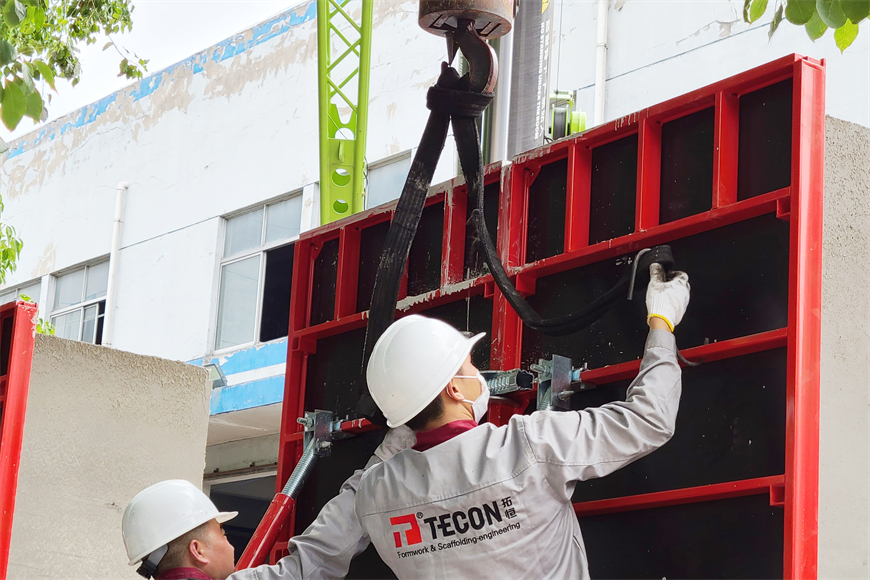

  • Assembling with crane lifting

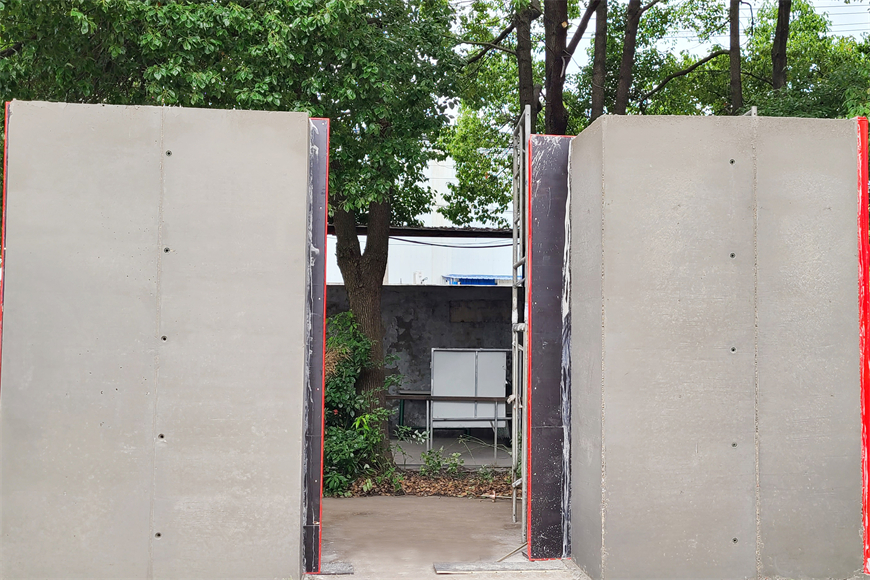

  • Complete concrete casting

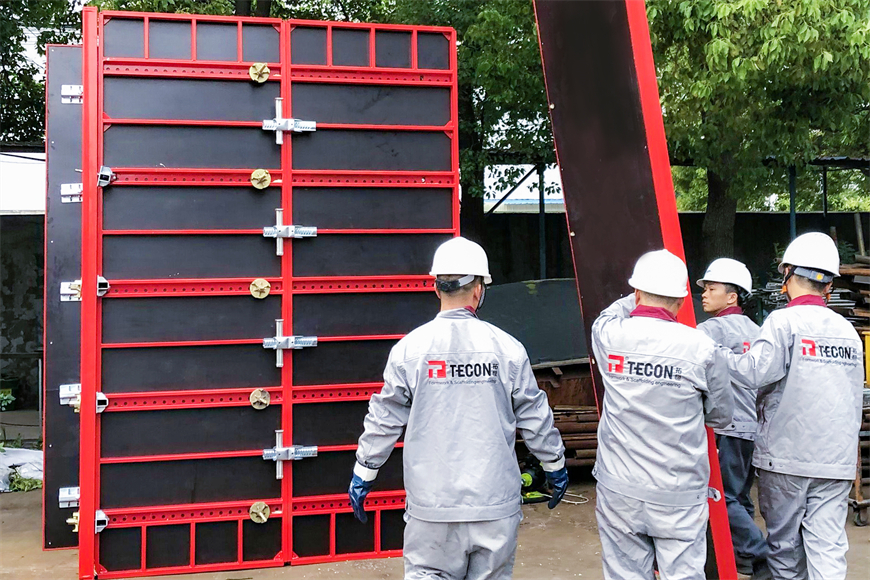

  • panel connected and with strut
  • Wall corner and surface
  • Tighten clamp by hammer
  • Struct head connected
GET A QUOTE

Feature of HETO Frame Wall Formwork


1. Large-area shuttering

2. Easy and simple connections

3. Adjustable alignment coupler

4. Adjustable panel

5. Complete piece birch plywood, and replaceable

6. Easy and fast operations



Specifications of HETO Frame Formwork

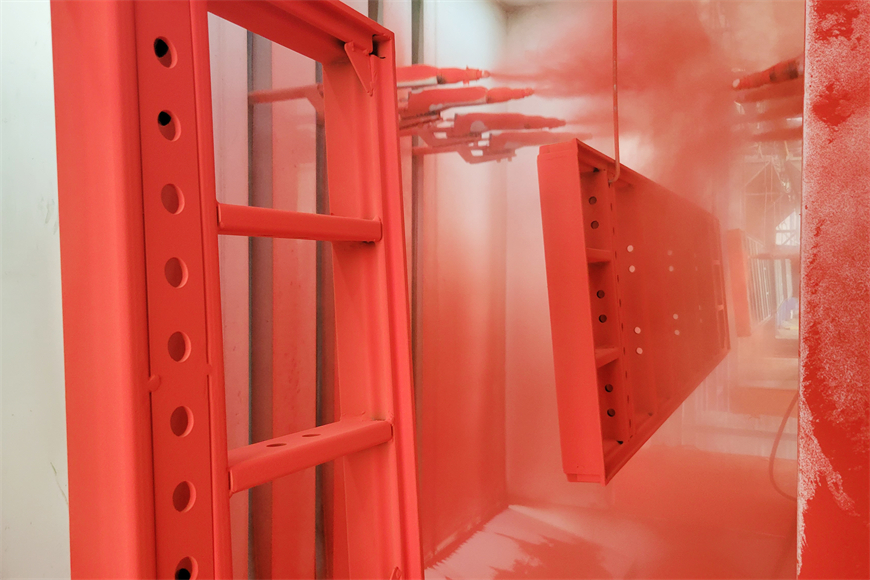

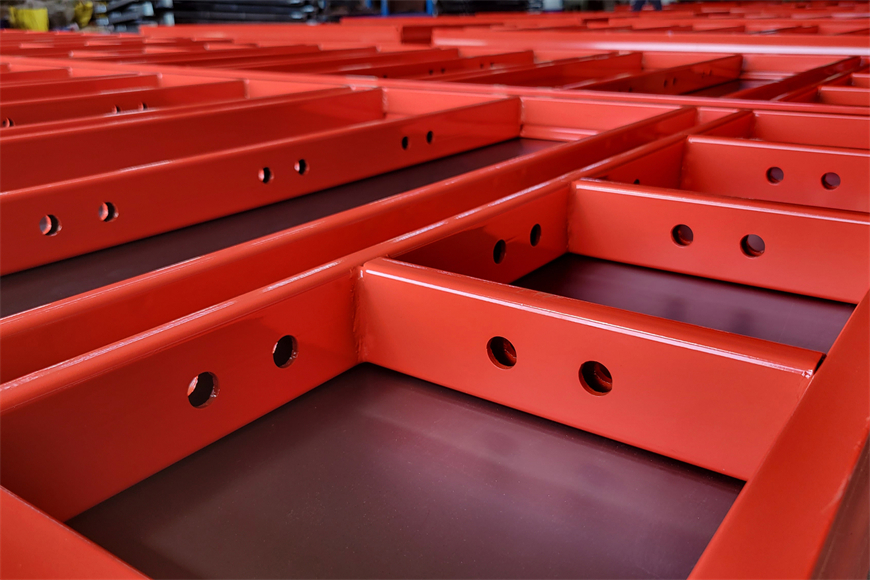

73mm steel frame depth, Powder coated or hot-dip galvanization finishing, lined with 12mm TECON-Form plywood

Panel widths up to 1.0m, and panel heights up to 3m, with main panel sizes as below table（W*H, mm）


Type

Dimension(mm)(W*L)

Material

Panel 300/100

3000x1000

Q345

Panel 300/75

3000x750

Q345

Panel 300/60

3000x600

Q345

Panel 300/35

3000x350

Q345

Panel 240/100

2400x1000

Q345

Panel 180/100

1800x1000

Q345

Panel 120/100

1200x1000

Q345


Aligned and tight connections by Alignment Coupler, including filler timber compensations up to 10 cm

Allowable fresh concrete pressure: 60 kN/m²



Application of HETO Frame Formwork

Residential & commercial buildings with big area walls, infrastructure projects, adjustable columns etc.



Related products of HETO Frame Formwork

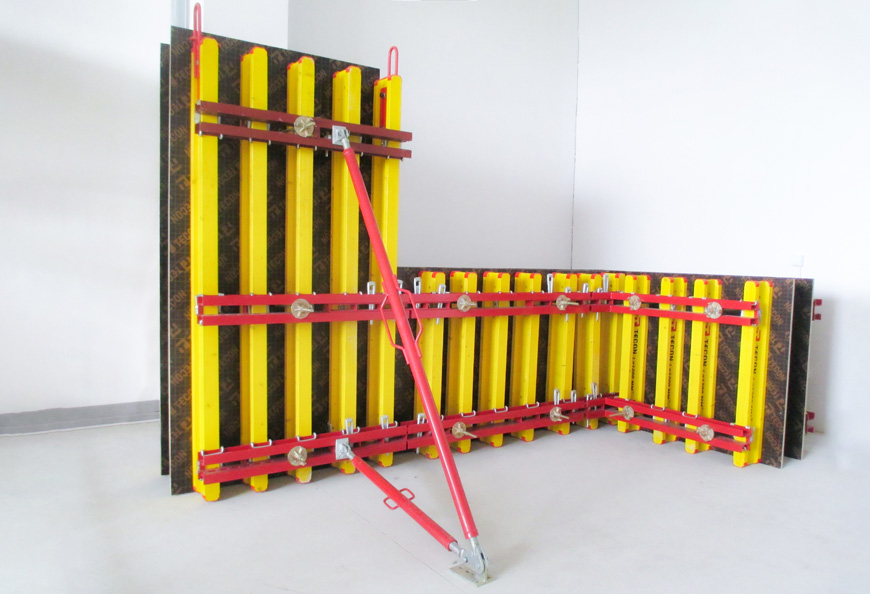

BASE 20 formwork, Steel Lite formwork, Aluflex formwork
