Self-climbing Formwork TSC50 & TSC100

SHARE:

TECON Self-climbing formwork TSC50 & TSC100 is a crane independent climbing system. It offers efficient and cost saving concreting solution for high-rise building, bridge pylons etc.. Up to 100kN lifting capacity and reliable embedded anchorage system ensures stable and safe automatic climbing with integrated formwork together.

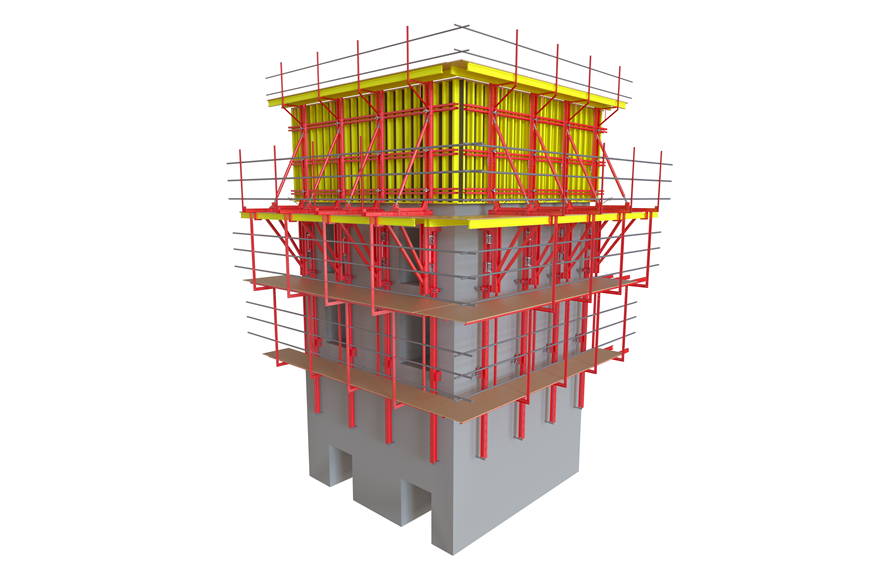

TECON Self-climbing formwork TSC 50 set 3D image in GGD structure
TECON Self-climbing formwork TSC 50 set 3D image in GGD structure
  • TECON Self-climbing formwork TSC 50 set 3D image in GGD structure
  • TECON Self-climbing formwork TSC100 set 3D image in SD structure

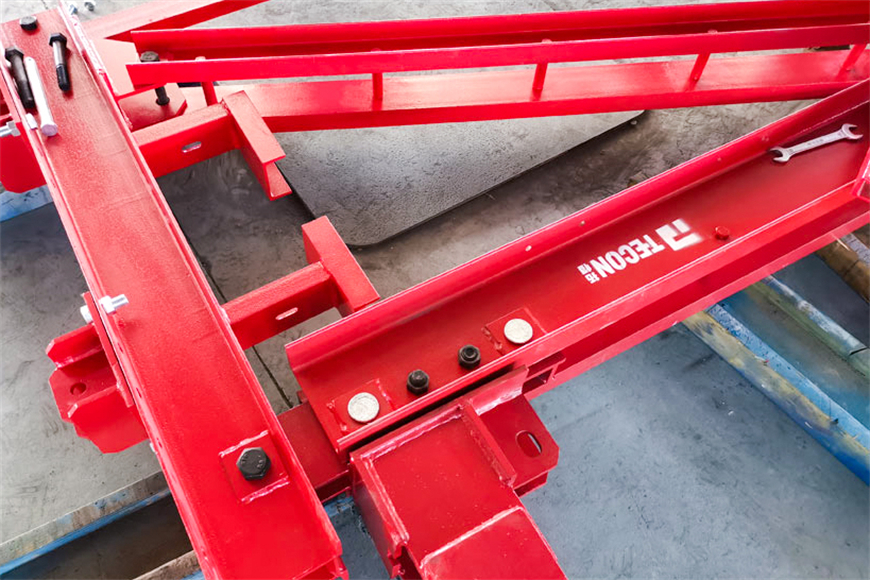

  • Factory mock up for pre-shipment inspection

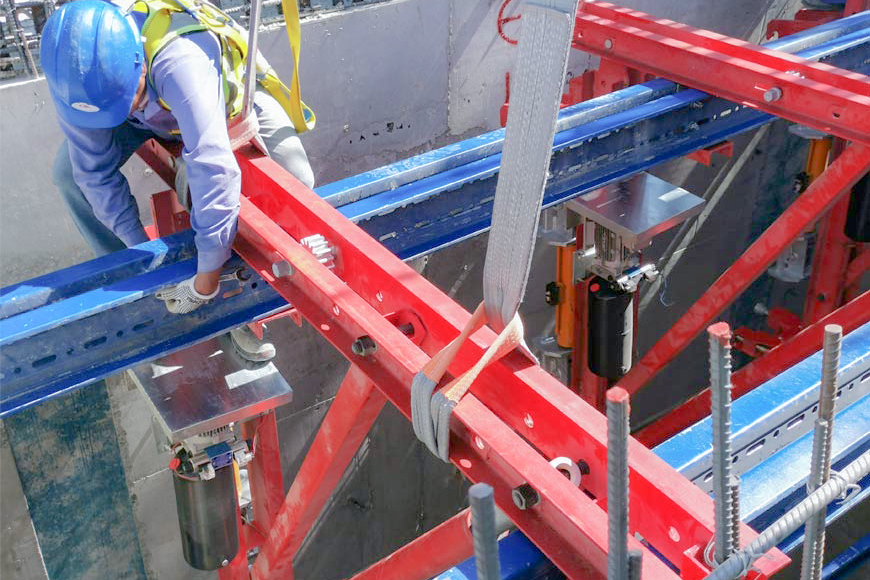

  • Site installation for shaft core
  • Site set up in UAE for a commercial building

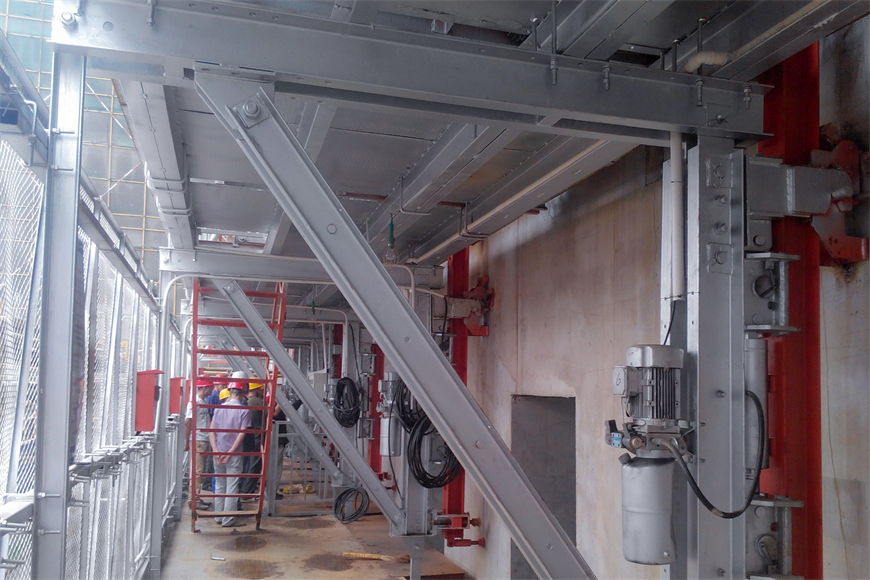

  • Hydraulic cylinders with 50kN or 100kN lifting capacity
  • Complete sealed platform in a high rise building project
  • Application in a high-rising building over 300m height
  • Application in a circular silo project with CSCEC

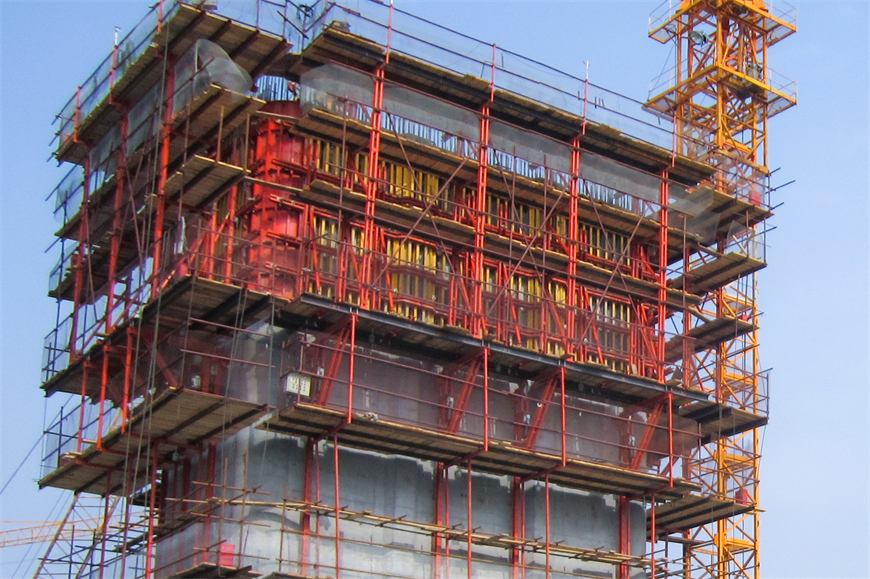

  • Application in bridge pylon project
GET A QUOTE

Feature of Self-climbing Formwork TSC50 & TSC100

  • Efficient automatic climbing and easy operation, thus without occupying tower crane schedule

  • Reliable climbing bracket and the embedded anchorage system proven by lots project sites

  • Safe and fully sealed operation platform regardless weather influence

  • Can be shifted from one project to another despite of different geometry

  • Multi-Platforms design allow workers operating on different level


Specification of Self-climbing Formwork TSC50 & TSC100

  • Rail-guided, safe & stable climbing procedure without crane assistance

  • Hydraulic cylinder (climbing device) with 50kN and 100kN lifting capacity

  • 0.5 hour per floor climbing speed

  • Maximum 6m casting height

  • Around 7-10 days per level cycle including tie rebar

  • Available climbing incline at ±15°slope

  • Width of platform:

                                     Main platform: 2.4m/ 2.7m

                                     Top platform: 0.75m/1.2m

                                     Bottom platform: 1.2m


Application of Self-climbing Formwork TSC50 & TSC100

Shaft core structures of high-rise building, bridge pylons etc.


Related Products of Self-climbing Formwork TSC50 & TSC100

Climbing formwork CB240, Dam formwork, Protection screen

Other Formwork Products You May Also Like
Projects Projects
Latest News
FAQ
  • Q
    1. How to get a quotation?

    You can send us your material list to request for a quotation, or you can also simply send us the structural drawing and project information for complete formwork & scaffolding proposal via below contacts.


    Email: info@teconform.com

    Phone: +86-512-65650586

    Mobile: +86-13862020161.


  • Q
    2. What is the payment term?

    By T/T or L/C.


  • Q
    3. What is the lead time?

    For climbing formwork, self-climbing platform, plastic formwork we have stock in our warehouse. The preparation of loading will be within 10 to 15 days.

    For H20 timber beam, TECON-Form Shuttering, the lead time is from 15 to 25 days.

    For other system, the lead time is from 30 to 45 days.

    For more accurate lead time, please contact us for specific product based on your quantity.
